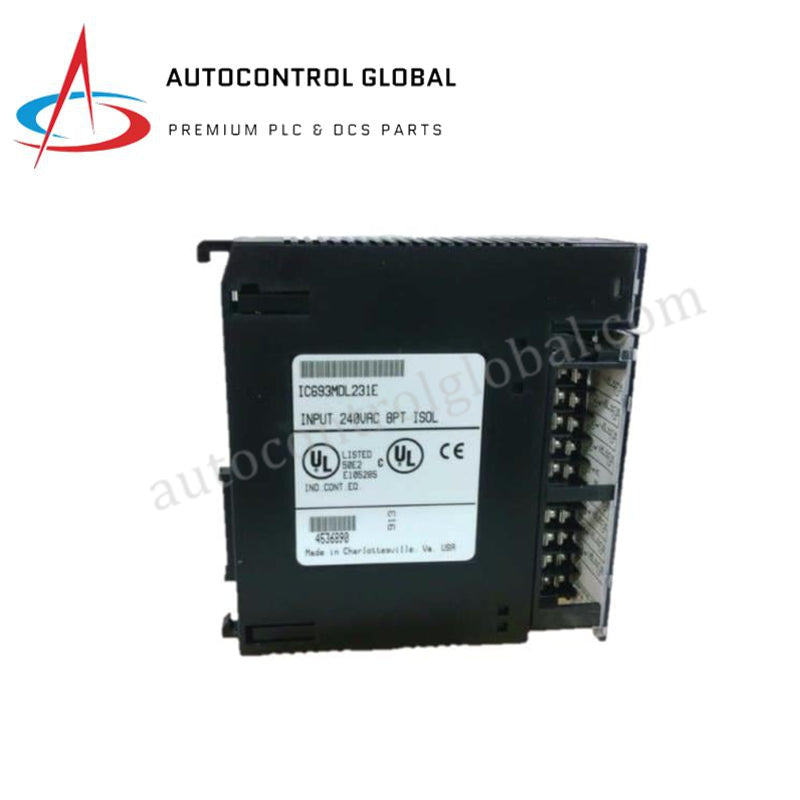

GE Fanuc 90-30 IC693MDL231 | 8-Channel 240V AC Input

Product Overview

The GE Fanuc IC693MDL231 provides high-voltage digital sensing for the Series 90-30 PLC platform. This 100% Brand New original module features 8 isolated input points specifically designed to interface with 240V AC field devices. It converts high-voltage external signals from switches, pushbuttons, and limit sensors into logic-level data for the PLC processor. By utilizing individual isolation for each point, the IC693MDL231 ensures maximum system reliability and prevents electrical faults in one circuit from affecting others within the same rack.

Technical Specifications

Engineering Advantages

• Point-to-Point Isolation: Unlike standard common-terminal modules, the IC693MDL231 provides complete electrical isolation between each of its 8 input channels. This allows engineers to mix different phases of AC power or separate power sources on a single module without risk of cross-talk or short circuits.

• High-Voltage Capability: The module directly handles 240VAC inputs, eliminating the need for interposing relays or external voltage step-down transformers. This direct sensing streamlines cabinet wiring and reduces potential failure points in the control loop.

• Enhanced System Safety: 1500V optical isolation protects the sensitive PLC backplane and CPU from high-voltage transients and surges common in heavy industrial power grids. This barrier prevents catastrophic hardware failure during field-side electrical faults.

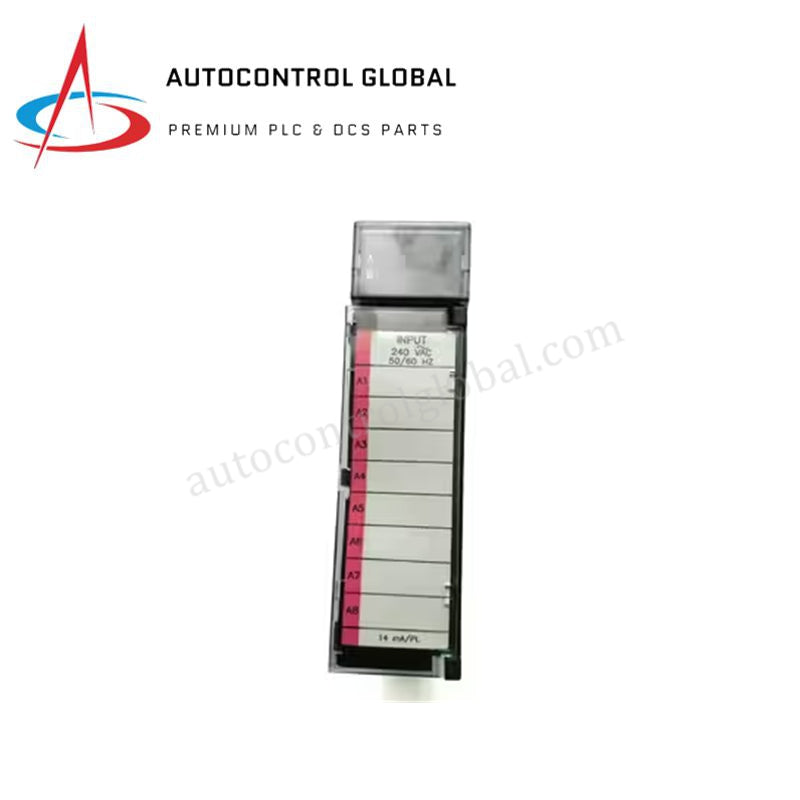

• Instant Signal Verification: Eight dedicated LED indicators on the front hinge-door provide real-time status of each input point. Maintenance personnel can verify the presence of 240V field power at a glance, significantly accelerating the troubleshooting of field-side switches.

• Simplified Retrofit Integration: The module fits any standard I/O slot in a Series 90-30 rack. Its robust mechanical design allows it to replace aging or damaged units in legacy systems, ensuring continued operation of critical infrastructure without requiring software re-writes.

FAQs

• Can I use 120VAC signals with the IC693MDL231?

  No. The IC693MDL231 requires a minimum "On-state" voltage of 156VAC. For 120VAC applications, you must use the IC693MDL230 module to ensure reliable signal detection.

• Does this module require a specific terminal block?

  The module comes with a standard removable terminal block. This allows you to replace the module without disconnecting the individual 240V field wires, minimizing downtime during maintenance.

• How does the module handle electrical noise?

  The module incorporates internal RC filtering to de-bounce input signals and reject high-frequency noise. This ensures the PLC logic only reacts to intentional state changes from the field devices.
