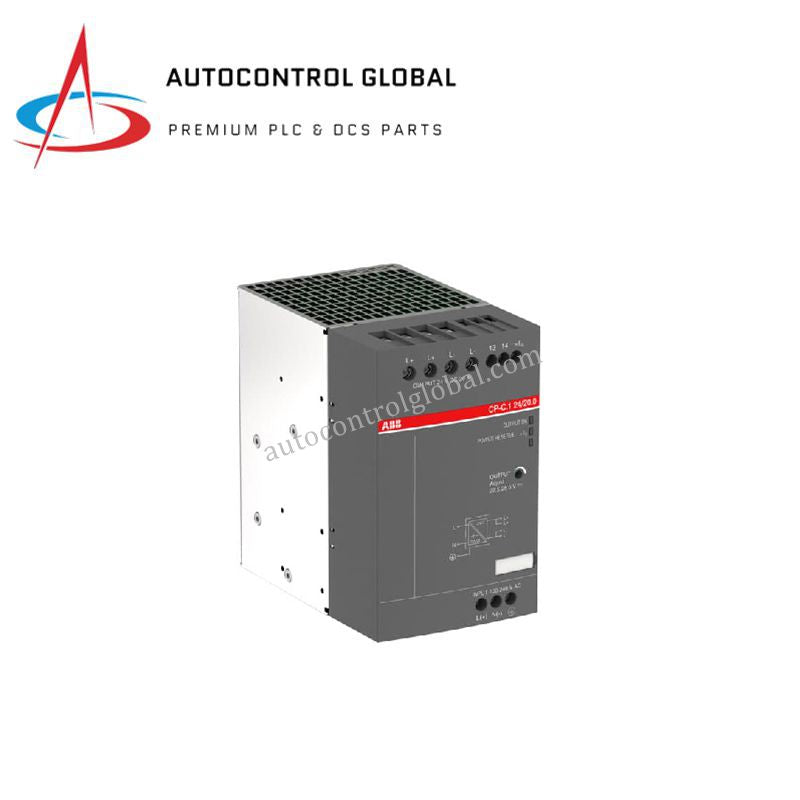

1SVR360763R1001 ABB | CP-C.1 24/20.0 Industrial Power Supply
Manufacturer: ABB
-
Part Number: CP-C.1 24/20.0 1SVR360763R1001
Condition：New with Original Package
Product Type: Industrial Power Supply
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The ABB CP-C.1 24/20.0 (Part No. 1SVR360763R1001) is a primary switch mode DIN rail power supply built for industrial automation and control. It offers a 24 V DC output with up to 20 A current, ensuring stable performance in PLCs, sensors, and actuator systems.
Engineered with 94% efficiency and 30% power reserve, this module delivers exceptional reliability under fluctuating loads. It supports parallel operation for redundancy, ensuring uninterrupted power in mission-critical environments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Manufacturer | ABB |
| Model | CP-C.1 24/20.0 |
| Part Number | 1SVR360763R1001 |
| Product Type | DIN Rail Power Supply |
| Input Voltage Range | 100–240 V AC / 90–300 V DC |
| Rated Output Voltage | 24 V DC |
| Output Current | 20 A |
| Maximum Output Current | 26 A |
| Rated Output Power | 480 W |
| Voltage Adjustment Range | 22.5–28.5 V DC |
| Efficiency | Up to 94% |
| Ripple and Noise | ≤120 mV (p-p) |
| Frequency Range | 45–65 Hz |
| Power Factor Correction | EN 61000-3-2 compliant |
| Protection Features | Overload, short-circuit, overvoltage |
| Mounting Type | DIN rail |
| Dimensions (W × D × H) | 82 × 136 × 129.4 mm |
| Weight | 1.57 kg |
| Operating Temperature | –40 °C to +85 °C |
| Certifications | UL 508, CE, ATEX, IEC/EN |
| Country of Origin | Switzerland |
| Condition | Brand new, original packaging |
FAQs
Q1: What is the maximum output capacity of the ABB CP-C.1 24/20.0?
A1: It delivers 480 W at 24 V DC with a maximum current of 26 A for short peaks.
Q2: Can this model operate in high-temperature environments?
A2: Yes, it performs reliably from –40 °C to +85 °C, suitable for harsh industrial sites.
Q3: Is parallel operation supported for redundancy?
A3: Yes, the CP-C.1 24/20.0 supports parallel configuration to increase reliability or capacity.
Q4: What kind of protection does this power supply include?
A4: It includes overload, short-circuit, and overvoltage protection to safeguard connected devices.
Q5: What are the delivery and warranty terms?
A5: All units are brand new and original, shipped via DHL, FedEx, or UPS within 3–14 days, and covered by a 1-year warranty with a 30-day return policy for quality issues.
