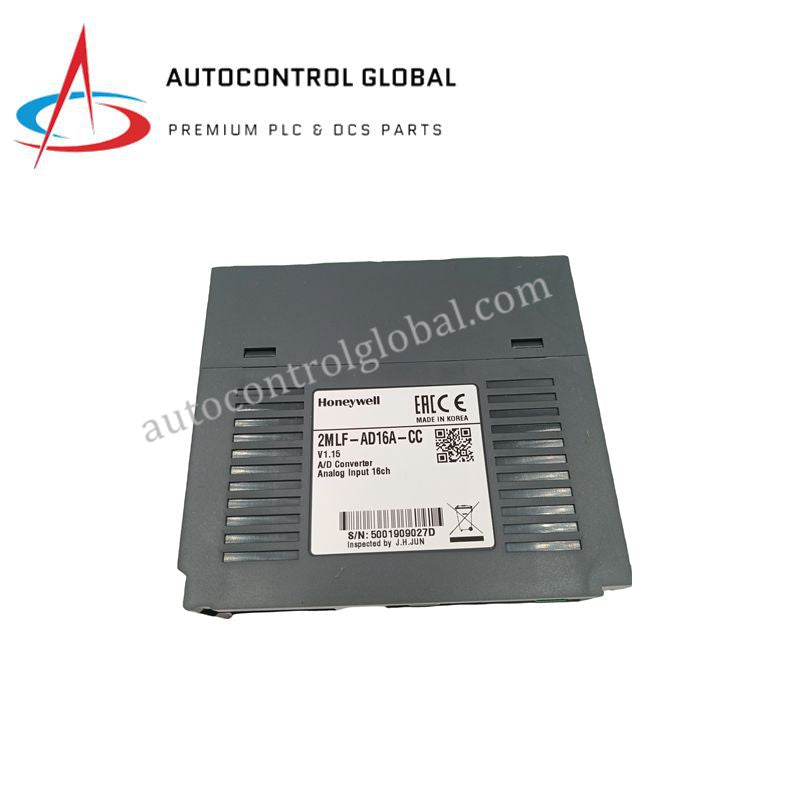

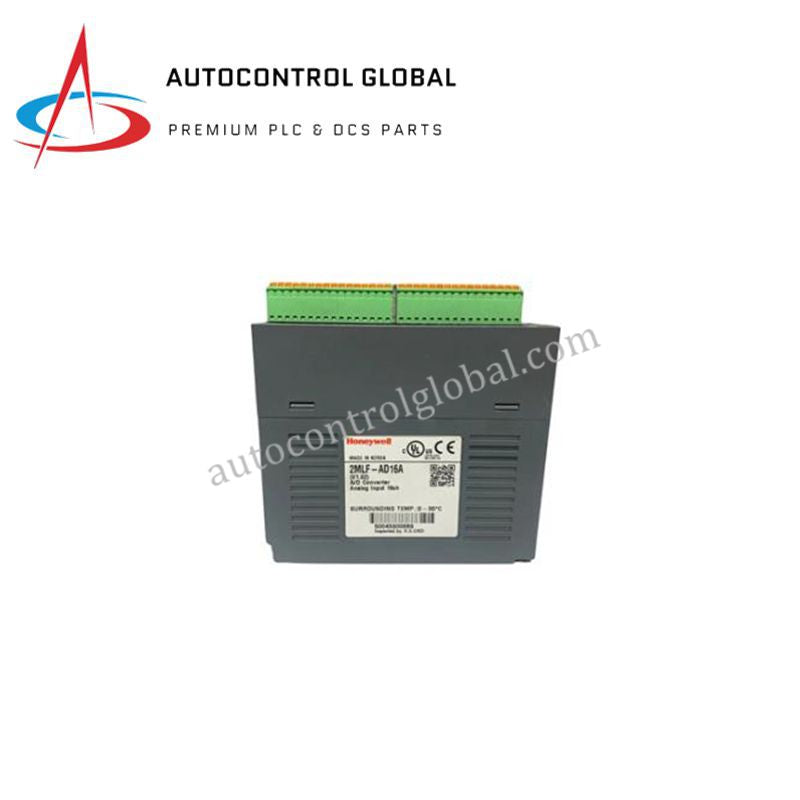

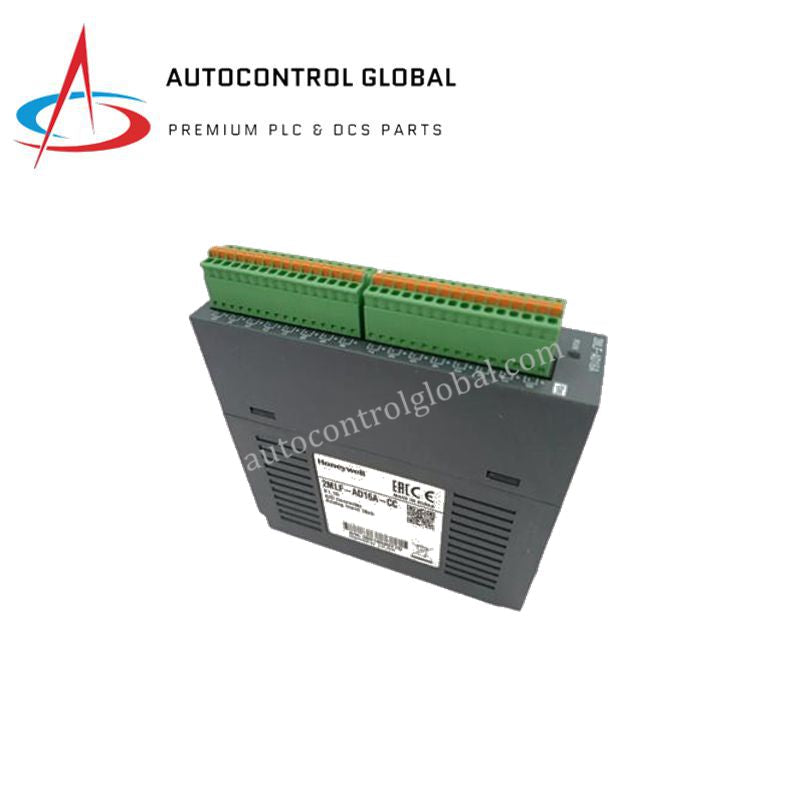

2MLF-AD16A-CC Honeywell | High-Precision Analog I/O Module
Manufacturer: Honeywell
-
Part Number: 2MLF-AD16A-CC
Condition：New with Original Package
Product Type: High-Precision Analog I/O Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The Honeywell 2MLF-AD16A-CC is a high-density 16-channel analog current input module for industrial automation systems.
It belongs to Honeywell’s Modular Local Fieldbus (MLF) series and supports precise signal acquisition in distributed I/O environments.
This module handles 4–20 mA current inputs, features 16-bit resolution, and ensures robust galvanic isolation, protecting controllers from electrical noise.
Its compact and rugged design makes it suitable for process control, monitoring, and safety-critical applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 2MLF-AD16A-CC |
| Product Type | 16-channel Analog Current Input Module |
| Series | Modular Local Fieldbus (MLF) |
| Input Channels | 16 independent current input channels |
| Input Signal Range | 4–20 mA DC |
| Input Type | Differential, loop-powered or externally powered |
| Resolution | 16-bit |
| Sampling Rate | 1 kHz per channel (typical) |
| Isolation | Channel-to-channel ≥1500 VDC |
| Diagnostics | Open loop, out-of-range, and alarm detection |
| Operating Voltage | 24 VDC (via fieldbus system) |
| Power Consumption | ≤6 W |
| Dimensions (L × W × H) | 90 mm × 98 mm × 27 mm |
| Weight | 0.115 kg |
| Certifications | CE, TUV, UL508, CSA |
| Condition | Brand new and in stock |
| Country of Origin | USA |
FAQs
Q1: Is the 2MLF-AD16A-CC module brand new?
Yes, it is brand new and in stock, with a 12-month warranty.
Q2: How many analog channels does it support?
The module supports 16 independent 4–20 mA current input channels.
Q3: What isolation method does it use?
It uses photo-coupler isolation between input terminals and PLC power, ensuring robust protection.
Q4: What is the resolution and sampling rate?
It provides 16-bit resolution and 1 kHz sampling rate per channel for precise acquisition.
Q5: What is the weight and dimensions of the module?
It weighs 0.115 kg with dimensions 90 mm × 98 mm × 27 mm, suitable for compact PLC racks.
