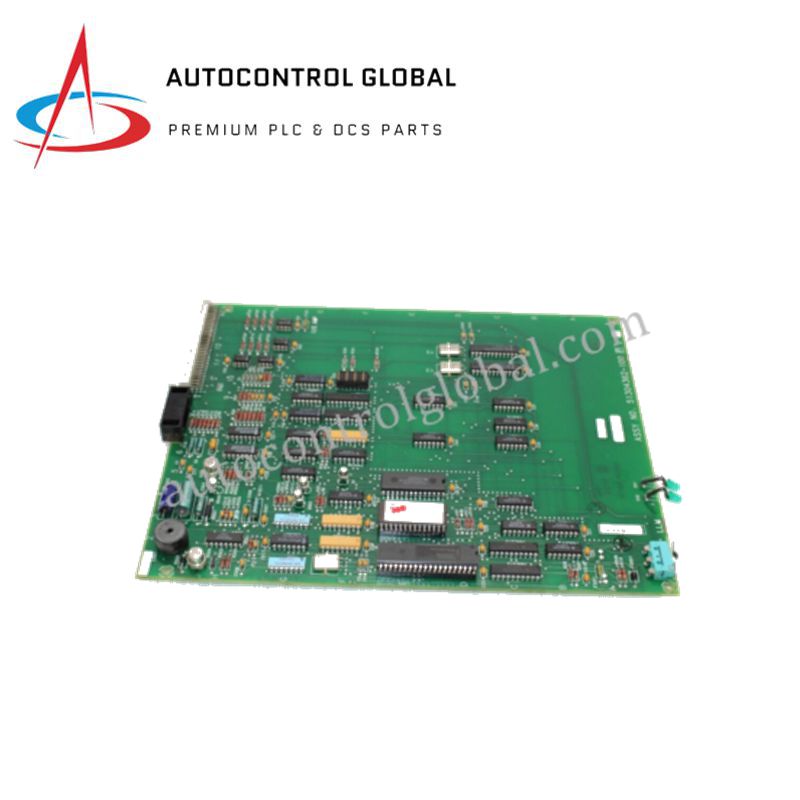

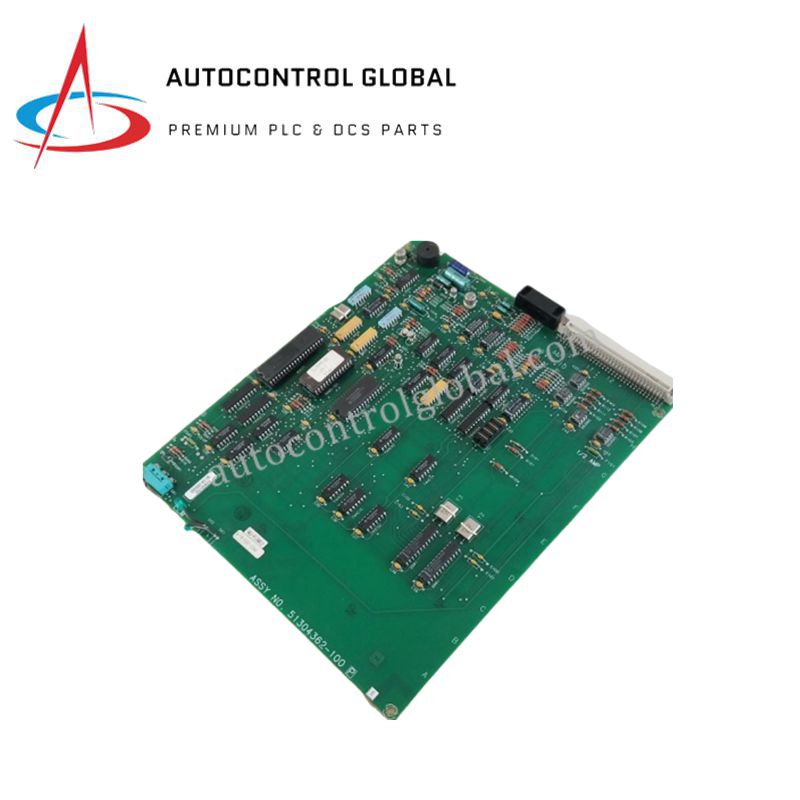

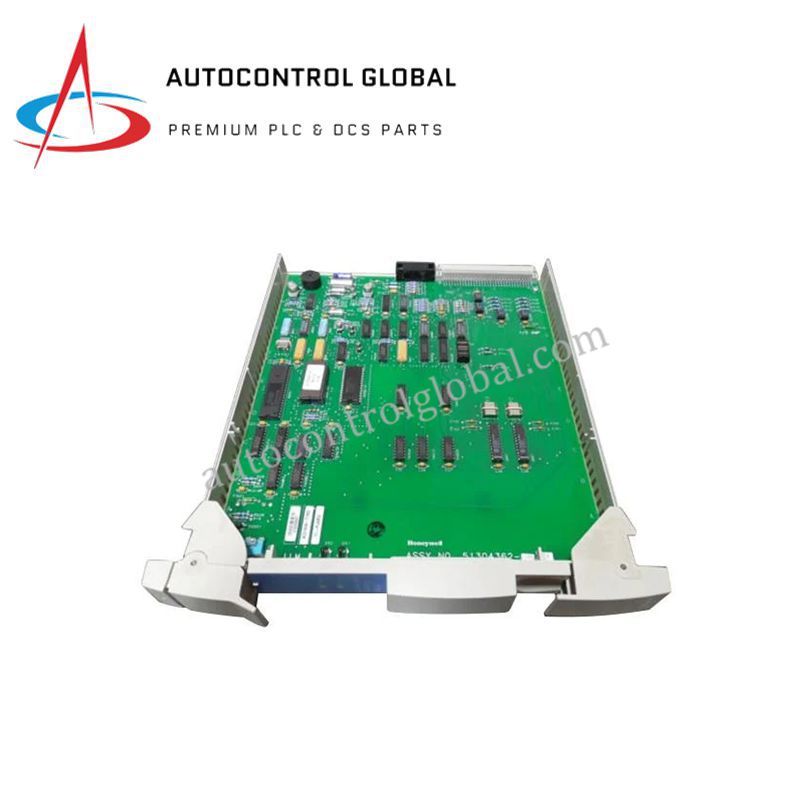

51304362-100 Honeywell | Low-Level Analog Control Card
Manufacturer: Honeywell
-
Part Number: 51304362-100
Condition：New with Original Package
Product Type: Low-Level Analog Control Card
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 51304362-100, also known as MC-TAMT03, is a high-performance Analog Multiplexer Termination Module for Honeywell TDC 3000 and Experion PKS distributed control systems. It efficiently routes, conditions, and terminates analog input signals, consolidating multiple channels into a single processing path.
Engineered for industrial reliability, it supports up to 16 analog channels and accommodates a wide variety of input types, including 4–20 mA current loops, 0–10 V voltage signals, thermocouples, and RTDs. Its high input impedance minimizes signal loading, while channel-to-channel and channel-to-system isolation ensures noise immunity. The plug-in module features keyed connectors and a conformal coating for durable operation in harsh environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304362-100 |
| Alternate Part Number | MC-TAMT03 |
| Type | Analog Multiplexer Termination Module |
| Function | Terminate and condition analog input signals; multiplex multiple channels |
| Channel Capacity | Up to 16 analog input channels |
| Input Signal Types | 4–20 mA, 0–10 V, thermocouples, RTDs (with conditioning) |
| Input Impedance | High impedance to minimize signal loading |
| Accuracy | ±0.1% of full scale (typical) |
| Isolation | Channel-to-channel and channel-to-system for noise immunity |
| Mounting | Plug-in module for Honeywell I/O chassis or termination assembly; keyed connectors |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Conformal Coating | Yes — for moisture, dust, and corrosion resistance |
| Compliance | CE marked; meets industrial EMC and safety standards |
| Weight | 1.43 lbs |
FAQ
Q1: How many analog channels does the 51304362-100 support?
A1: It typically supports up to 16 analog input channels for flexible system design.
Q2: What input signal types are compatible?
A2: The module accepts 4–20 mA, 0–10 V, thermocouples, and RTDs with appropriate signal conditioning.
Q3: What isolation features does this module provide?
A3: It offers channel-to-channel and channel-to-system isolation to protect against noise and interference.
Q4: Can this module operate in harsh industrial environments?
A4: Yes, the conformal coating ensures protection against moisture, dust, and corrosive atmospheres.
Q5: How is it installed?
A5: It uses a plug-in design with keyed connectors for secure and error-free integration into Honeywell I/O chassis.
Q6: What are the delivery and warranty options?
A6: The unit is brand-new original, in stock, shipped 3–14 days via DHL, and supports a 30-day return policy for quality issues.
