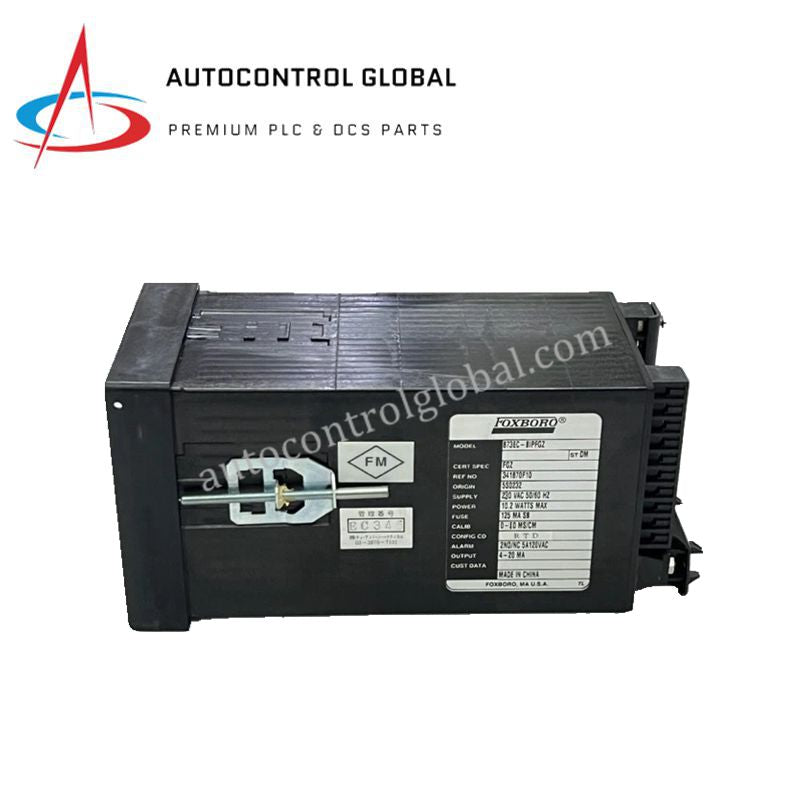

873EC-BIPFGZ | Foxboro Industrial Conductivity Measurement Module
Manufacturer: Foxboro
-
Part Number: 873EC-BIPFGZ
Condition：New with Original Package
Product Type: Distributed Control System Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Foxboro 873EC-BIPFGZ is a high-performance electrodeless conductivity analyzer designed for industrial process measurement. Using toroidal inductive sensing, it eliminates direct contact with process fluids, reducing maintenance and extending sensor lifespan. This module accurately measures conductivity in corrosive, high-viscosity, or high-purity fluids. It is widely applied in chemical processing, pharmaceuticals, food & beverage, and water treatment industries, supporting reliable and continuous process monitoring.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | 873EC-BIPFGZ |
| Measurement Type | Electrodeless (inductive) conductivity |
| Measurement Range | Suitable for wide range of chemical concentrations |
| Power Supply | 24 VDC typical; some variants support 220 VAC |
| Power Consumption | Approx. 10.2 W |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Humidity Range | 5% to 95% RH, non-condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Communication Protocols | Standard industrial interfaces (e.g., Modbus, analog output) |
| Mounting Configuration | Field-mountable; supports panel or pipe installation |
| Sensor Type | Toroidal coil (non-contact) |
| Certifications | Industrial-grade reliability and compliance |
