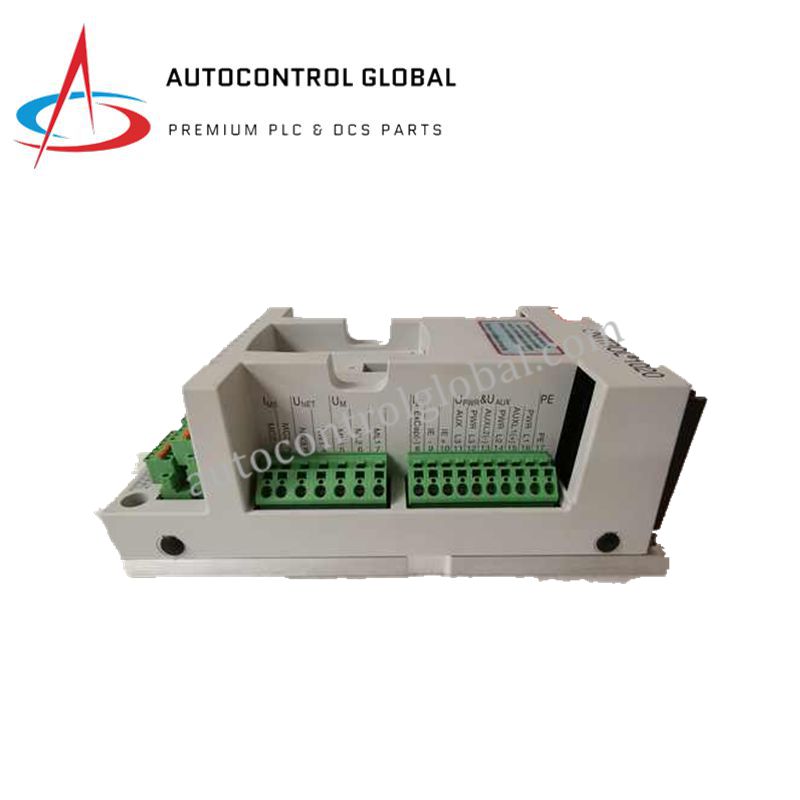

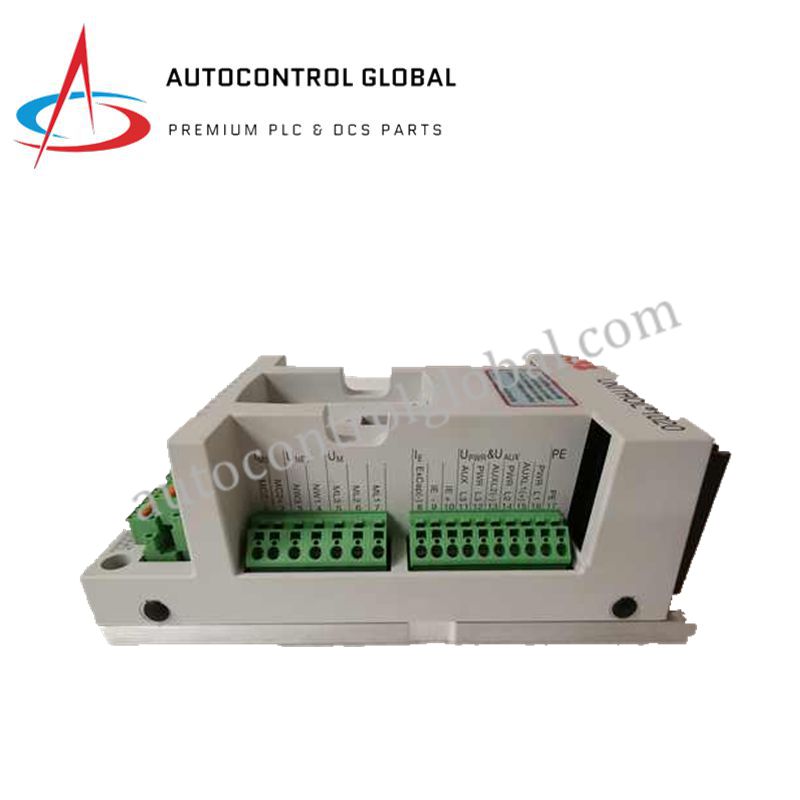

ABB UNS3670A-Z V2 | Compact Control System Voltage Module
Manufacturer: ABB
-
Part Number: UNS3670A-Z
Condition：New with Original Package
Product Type: Compact Control System Voltage Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB UNS3670A-Z V2 – High-Performance Voltage Converter Module
The ABB UNS3670A-Z V2 is a robust voltage converter module engineered for industrial automation applications. It ensures stable DC output from variable AC or DC inputs, maintaining reliable performance in distributed control systems (DCS), PLCs, and remote monitoring setups.
Designed with high-efficiency conversion and compact dimensions, this module integrates seamlessly into control cabinets, offering durable operation even under harsh environmental conditions. Passive cooling or integrated heat dissipation ensures thermal stability without active fans.
Technical Specifications
| Feature | Description |
|---|---|
| Model | UNS3670A-Z V2 HIEE205011R000 |
| Type | Voltage Converter Module |
| Input Voltage | 380–480 V AC (system-specific) |
| Output Voltage | Regulated DC (typically 24 V DC) |
| Power Rating | High-efficiency conversion for medium to high power loads |
| Input Voltage Range | 18–32 V DC (module supply) |
| Power Supply | 24 V DC |

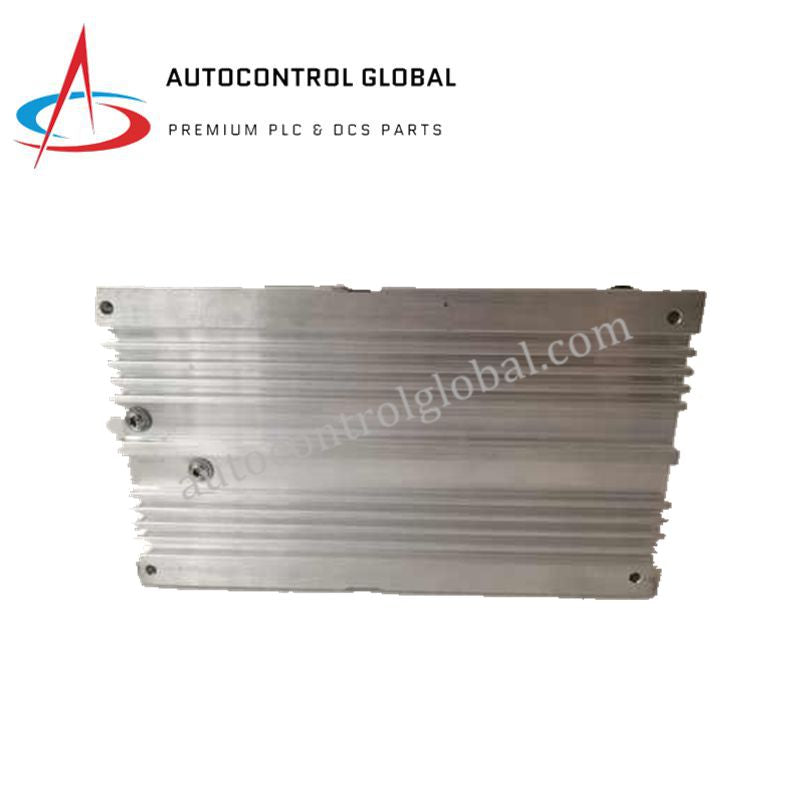

| Cooling Method | Passive convection or integrated heat dissipation |
| Communication Interface | Ethernet (diagnostics and monitoring) |
| Mounting Type | Panel-mounted or rack-mounted in control cabinets |
| Protection Features | Overvoltage protection, Short-circuit protection, Thermal shutdown, EMI shielding |
| Operating Temperature | –40°C to +70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions | 100 mm × 50 mm × 20 mm |
| Weight | 1.5–2.5 kg |
| Certifications | CE, UL, RoHS compliant |
