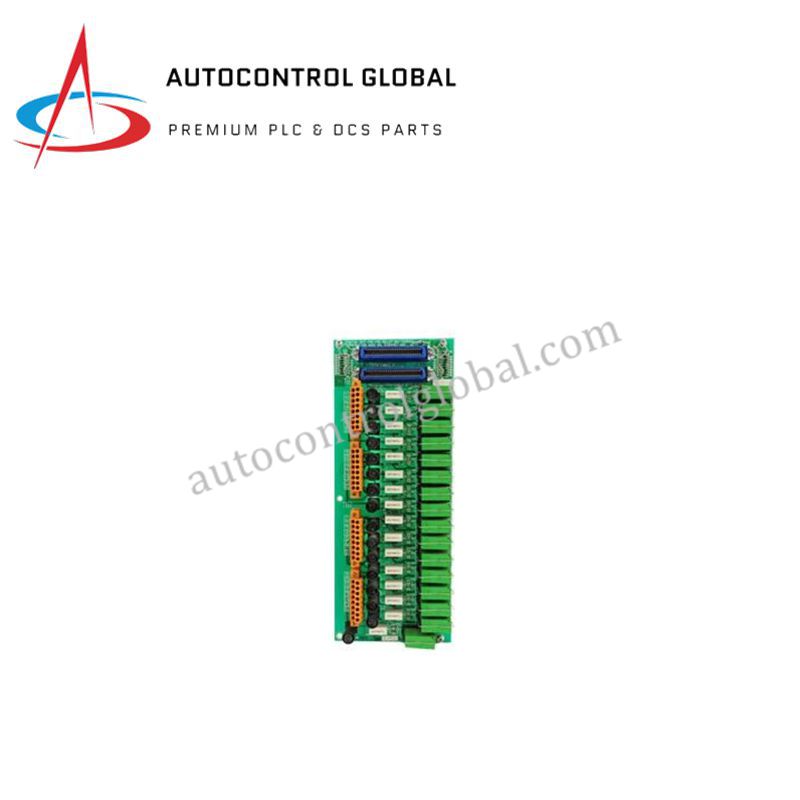

Honeywell MU-TDOR22 51304427-100 | 16-Channel Relay Output Module
Manufacturer: HONEYWELL
-
Part Number: MU-TDOR22 51304427-100
Condition：New with Original Package
Product Type: 16-Channel Relay Output Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell MU-TDOR22 51304427-100 – 16-Channel Digital Output Relay Module
Product Overview
The Honeywell MU-TDOR22 51304427-100 is a high-performance digital output relay module designed for Honeywell Distributed Control Systems (DCS). It provides reliable switching for field devices such as motors, solenoids, valves, and relays, supporting demanding industrial environments including oil & gas, power generation, manufacturing, and building automation.
Engineered for durability and high operational life, the MU-TDOR22 features silver-alloy contacts, surge protection, and integrated fusing, ensuring safe and robust high-voltage switching. The module integrates seamlessly with Honeywell’s Fault Tolerant Architecture (FTA), providing fast and reliable control of multiple output channels.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | MU-TDOR22 |
| Part Number | 51304427-100 |
| Type | Digital Output Relay Module |
| Output Channels | 16 discrete outputs |
| Contact Type | Form A (SPST/NO) or Form B (SPST/NC) |
| Contact Material | Silver alloy |
| Maximum Load Voltage | 265 VAC RMS / 140 VDC |
| Maximum Load Current | 2.5 A RMS @ 240 VAC resistive |
| Minimum Load Current | 100 mA |
| Surge Protection | Fuse-limited surge handling |
| Contact Life | Up to 20 million operations |
| Snubber Circuit | 51 Ω / 0.022 µF RC across each contact |
| Fusing | 3 A, 250 V slow-blow fuse per output (5×20 mm) |
| Surge Withstand | ANSI/IEEE C37.90.1-1978 compliant |
| Mounting Style | DIN rail or cabinet installation |
| Operating Temperature | -40°C to +70°C |
| Certifications | CE compliant |
