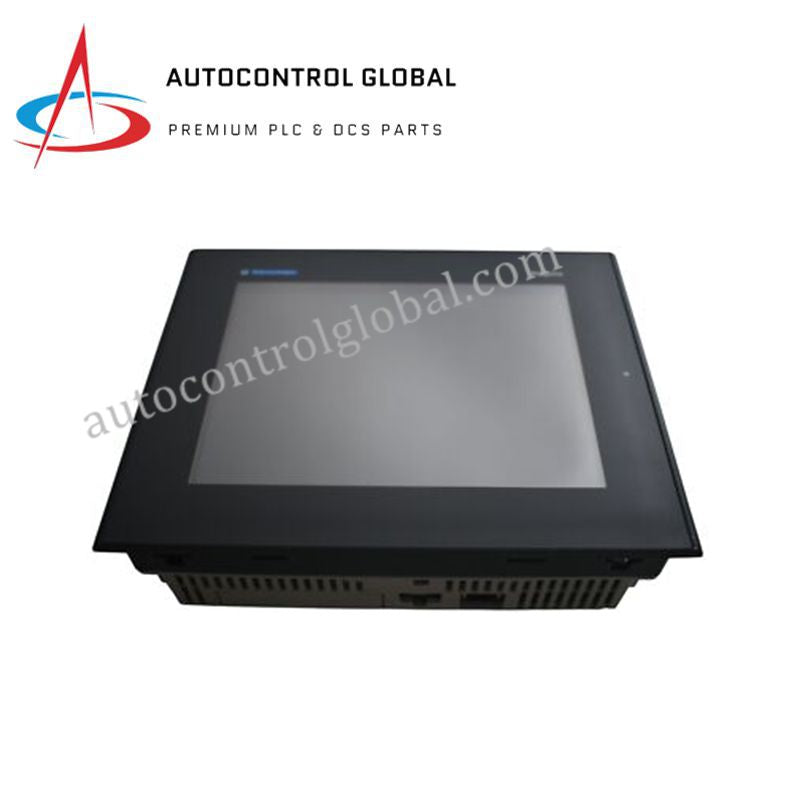

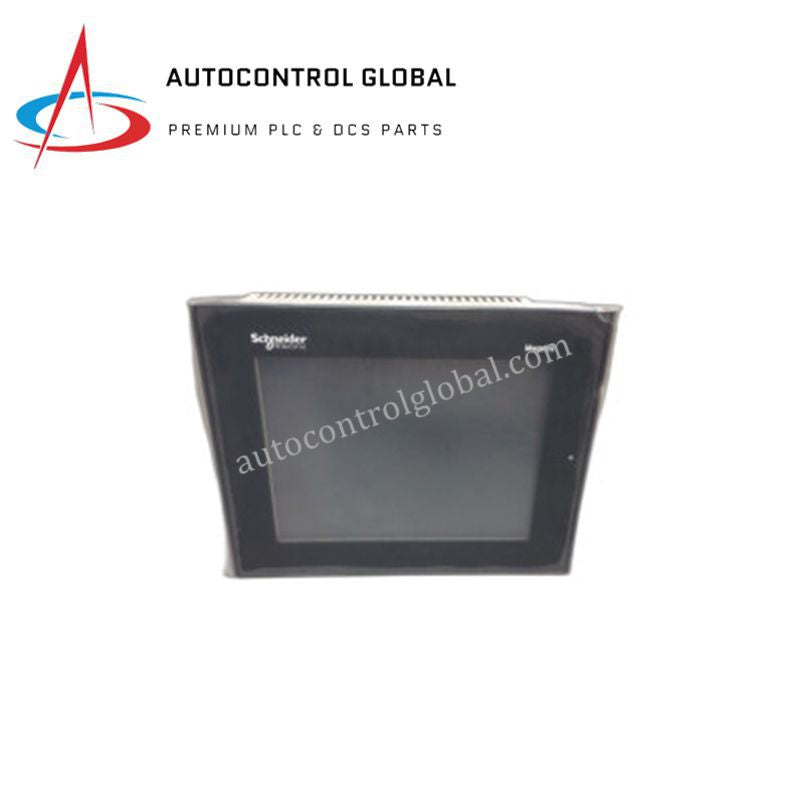

XBTGT4340 | Schneider Electric Magelis HMI | 640 x 480 VGA

Product Overview

The Schneider Electric XBTGT4340 is an advanced touchscreen operator interface terminal designed for seamless integration into industrial automation systems. With a 7.5-inch TFT LCD display and 640 x 480 VGA resolution, it provides clear and reliable operator control for manufacturing, utilities, and process industries. Although discontinued by the manufacturer, this unit is still widely used for monitoring, controlling, and configuring various industrial processes. Radwell provides a 2-year warranty to ensure continued support.

Technical Specifications

• Model: XBTGT4340

• Brand: Schneider Electric

• Product Type: Advanced HMI Touchscreen Terminal

• Display Size: 7.5-inch TFT LCD

• Resolution: 640 × 480 pixels (VGA)

• Display Colours: 65,536 colours

• Touchscreen Type: Analog resistive

• Backlighting: CCFL, replaceable

• Processor: RISC 32-bit

• Memory:

• 32 MB RAM

• 64 MB Flash

• Interfaces:

• 2 × COM ports (RS232/RS485)

• 1 × Ethernet (10/100 Mbps)

• 2 × USB (Host/Device)

• CompactFlash slot

• Power Supply: 24 V DC

• Power Consumption:25 W

• Mounting: Panel mounting

• Weight: 2.5 kg (5.5 lbs)

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Humidity Range: 10–90% RH (non-condensing)

• Dimensions:

• Width: 298 mm

• Height: 228 mm

• Depth: 60 mm

• Certifications: CE, UL, CSA

FAQ

Is the Schneider Electric XBTGT4340 still available?
The XBTGT4340 has been discontinued by the manufacturer, but it is available through Radwell with a 2-year warranty.

What is the display size of the XBTGT4340?
The XBTGT4340 features a 7.5-inch TFT LCD display with a 640 x 480 VGA resolution.

What are the key communication options on the XBTGT4340?
It includes Ethernet, USB, and serial (RS232/RS485) communication ports for flexible integration.

Can the XBTGT4340 be mounted easily?
Yes, the XBTGT4340 is designed for panel mounting, ensuring easy installation in your automation systems.

What is the warranty for the XBTGT4340?
While the manufacturer warranty may not apply, Radwell provides a 2-year warranty on this product.
