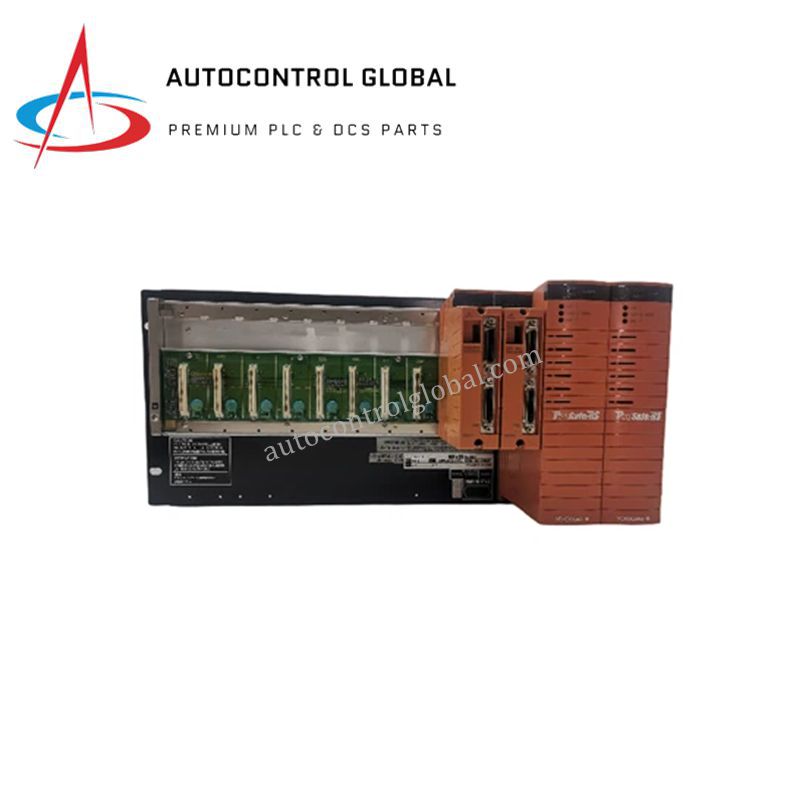

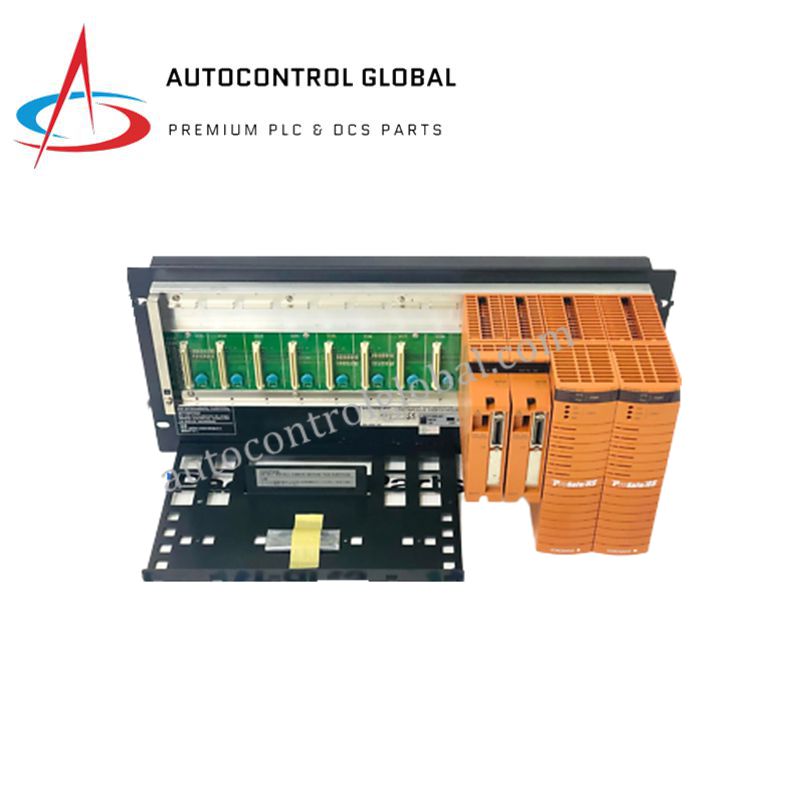

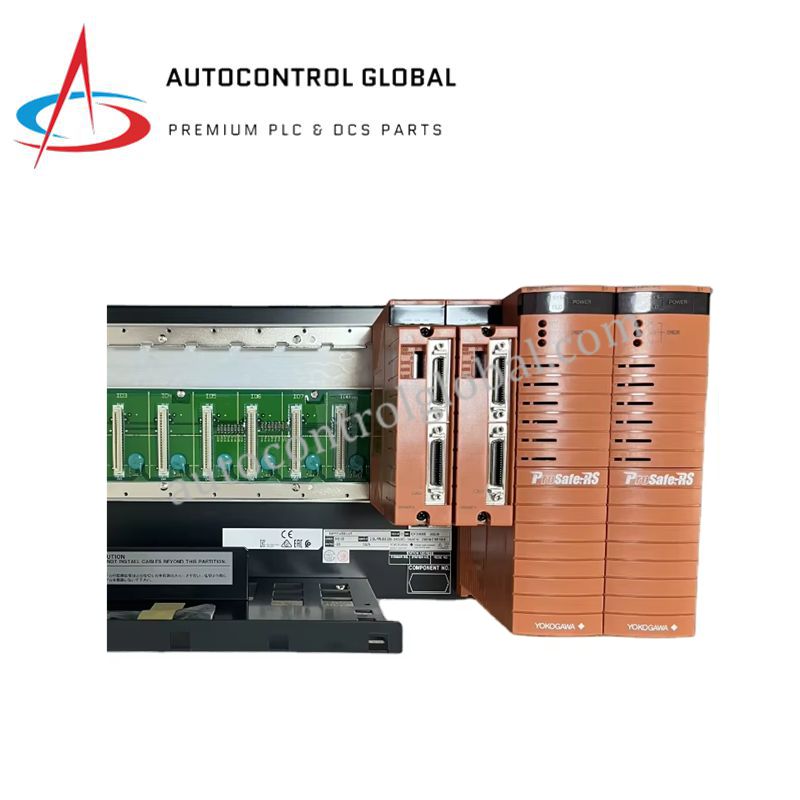

Yokogawa SNB10D-225/CU2N | Safety Node Unit for ProSafe-RS SIS
Manufacturer: Yokogawa
-
Part Number: SNB10D-225/CU2N
Condition：New with Original Package
Product Type: Safety Node Unit for ProSafe-RS SIS
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Yokogawa SNB10D-225/CU2N is a dual-redundant Safety Node Unit designed for use in ProSafe-RS Safety Instrumented Systems (SIS). It acts as a communication and interface hub between field I/O modules and the safety control unit, ensuring continuous, high-integrity data transmission through an ESB (Ethernet Safety Bus).
Engineered to meet SIL 3 safety integrity standards, this unit ensures uninterrupted operation in safety-critical environments such as oil & gas, chemical processing, and power generation facilities. The dual-redundant power supply and node expansion capability further enhance system resilience. Its wide temperature tolerance (–20°C to +70°C) and ISA G3 environmental rating guarantee reliable performance under harsh industrial conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SNB10D-225/CU2N |
| Product Type | Safety Node Unit |
| Manufacturer | Yokogawa |
| System Platform | ProSafe-RS Safety Instrumented System (SIS) |
| Power Supply Options | 100–120 V AC / 220–240 V AC / 24 V DC |
| Power Consumption | 200 VA (100–120V), 230 VA (220–240V), 5.5 A (24V DC) |
| Communication Interface | ESB Bus Optical Transmission (CU2N Connector) |
| Transmission Distance | Up to 5 km with ANT401 Fiber Cable |
| Safety Integrity Level | SIL 3 Compliant |
| I/O Module Capacity | Supports up to 8 Modules |
| Redundancy | Dual Power Supply and Node Expansion |
| Operating Temperature | –20°C to +70°C |
| Explosion Protection | ISA G3 Standard (No Explosion Proof) |
| Mounting Type | Rack-mounted (4 × M5 Screws) |
| Dimensions (W × H × D) | 482.6 mm × 221.5 mm × 205 mm |
| Weight | 5.9 kg |
| Shipping Weight | 8 kg |
| Condition | New & Original |
| Certifications | COO (Certificate of Origin), Test Report |
| Country of Origin | Japan |
FAQs
Q1: Which system is the SNB10D-225/CU2N compatible with?
A1: The SNB10D-225/CU2N is designed for Yokogawa’s ProSafe-RS Safety Instrumented System (SIS) platform.
Q2: What communication protocol does this unit use?
A2: It uses ESB bus optical transmission, enabling high-speed and interference-resistant data communication.
Q3: How many I/O modules can it support?
A3: The unit supports up to 8 I/O modules, ensuring flexible scalability for large safety systems.
Q4: Can it operate in harsh industrial environments?
A4: Yes, it is ISA G3 compliant and operates reliably from –20°C to +70°C, even under challenging conditions.
