Bently Nevada 330905-12-22-05-02-05 | NSv Industrial Vibration Probe
Manufacturer: Bently Nevada
-
Part Number: 330905-12-22-05-02-05
Condition：New with Original Package
Product Type: NSv Industrial Vibration Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 330905-12-22-05-02-05 is part of the 3300 NSv (Narrow Side View) Proximity Transducer System. It provides precise non-contact measurement of shaft displacement and vibration, suitable for small, high-speed rotating machinery such as compressors, pumps, and gearboxes.

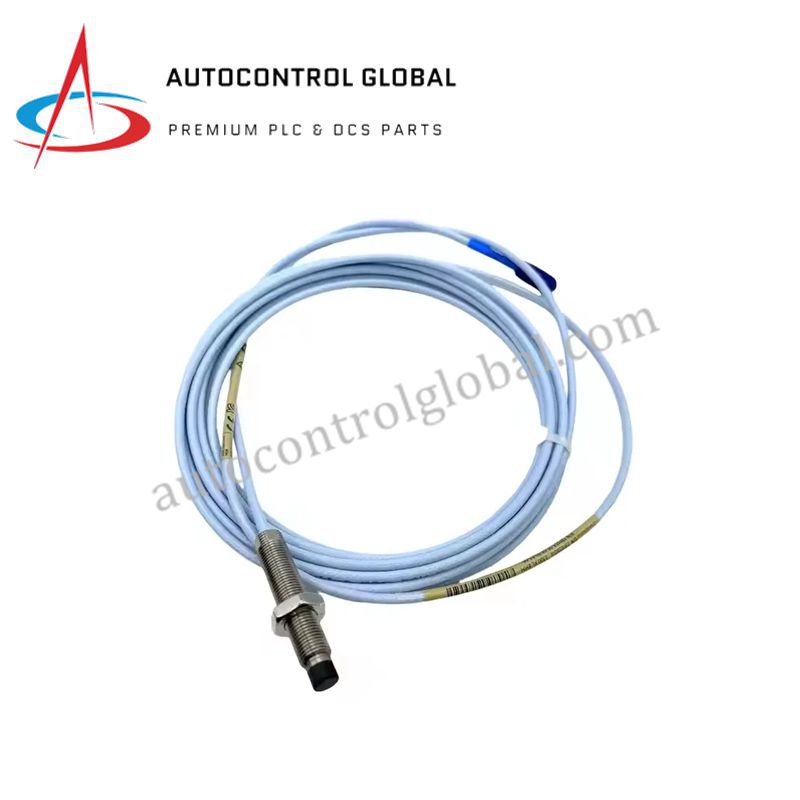

This probe features an 8 mm diameter tip made of PEEK and a durable AISI 304 stainless steel case. It includes a 0.5-meter FEP-insulated coaxial cable with a Miniature ClickLoc™ connector. The probe operates in extreme industrial environments with temperatures from –34°C to +177°C and storage down to –51°C.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330905-12-22-05-02-05 |
| Series | 3300 NSv (Narrow Side View) |
| Probe Tip Diameter | 8 mm |
| Tip Material | PEEK |
| Thread Size | M10 × 1 (metric) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 250 mm |
| Cable Length | 0.5 meter (approx. 20 in) |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Measurement Range | 2 mm (80 mils) |
| Linearity | ±0.3% of full-scale range |
| Resolution | ±2.5 pm (0.1 mils) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –34°C to +177°C (–30°F to +351°F) |
| Storage Temperature | –51°C to +177°C (–60°F to +351°F) |
| Probe Case Material | AISI 304 stainless steel |
| Cable Material | 75 Ω coaxial, FEP-insulated |
| Shipping Weight | 1.5 Kg |
| Compliance | CE, RoHS, ISO 9001; API 670 compatible |
