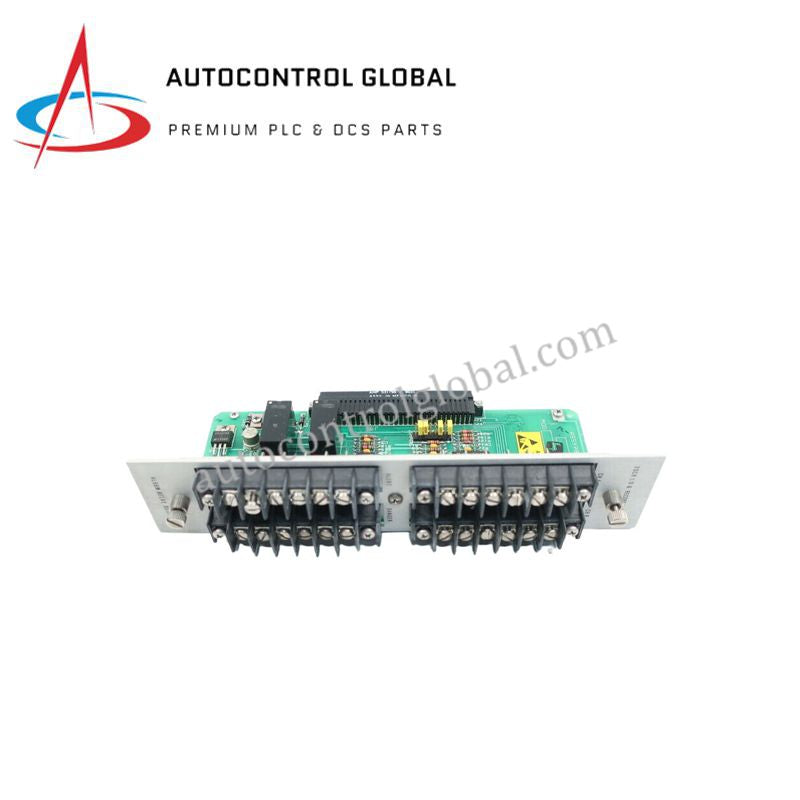

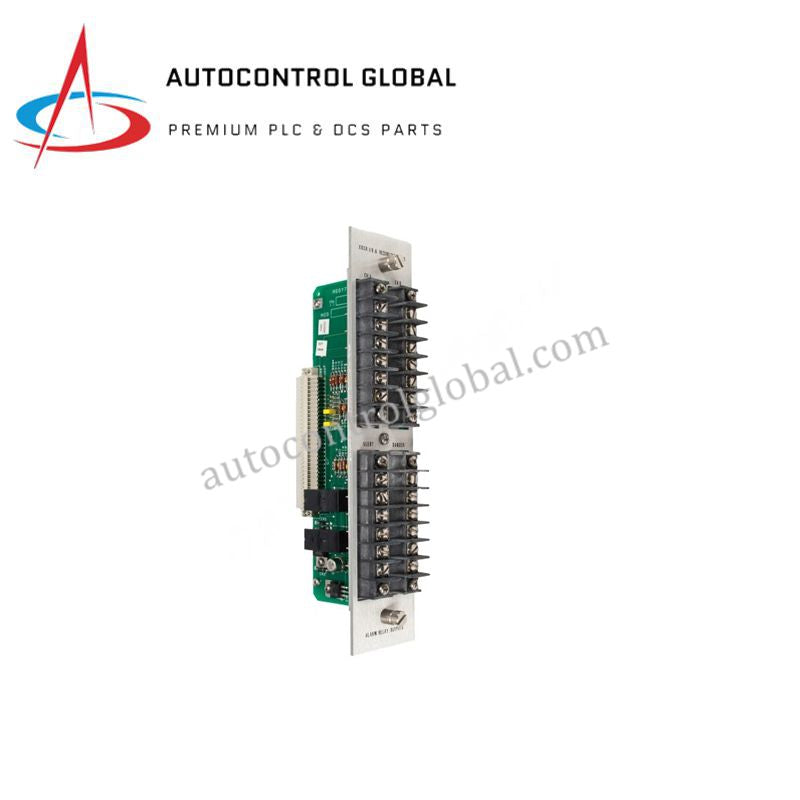

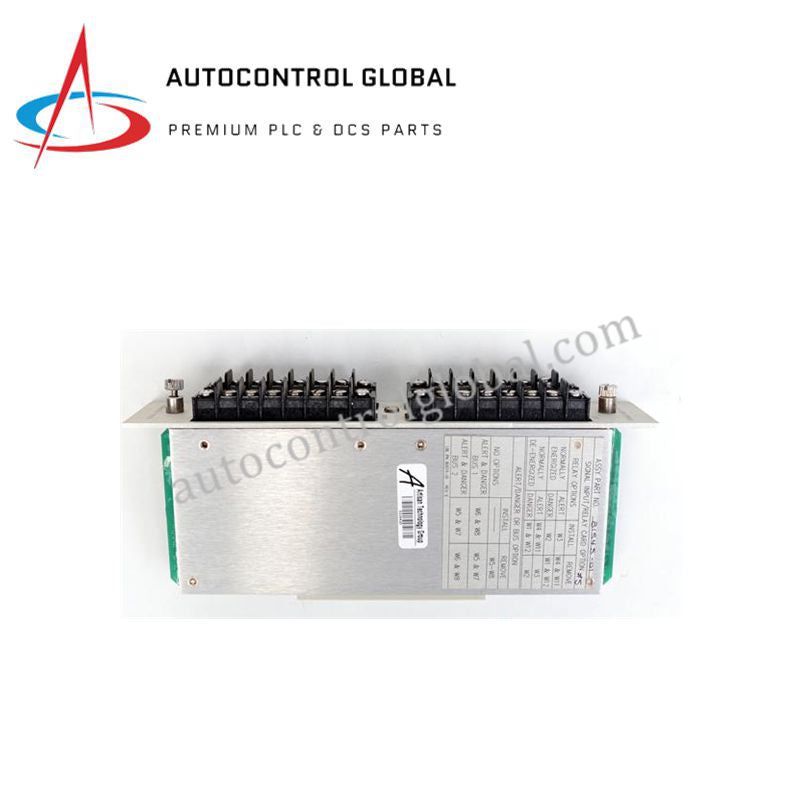

Bently Nevada 81545-01 | Transducer I/O & Relay Module
Manufacturer: Bently Nevada
-
Part Number: 81545-01
Condition：New with Original Package
Product Type: Transducer I/O & Relay Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 81545-01 module is part of the 3300 System, designed to monitor and record vital parameters such as casing growth and thrust bearing position. It integrates directly with sensors and the monitoring rack, offering a reliable interface for critical industrial applications.
Its compact design, epoxy-sealed dual relays, and screw terminal connections provide both durability and easy installation. With robust switching capability, the 81545-01 delivers dependable alert and trip functions, making it essential for high-uptime machinery protection systems.
Description
The Bently Nevada 81545-01 is a high-performance transducer I/O and recording terminal module that ensures precise data acquisition and secure relay operation. It connects vibration sensors, proximity probes, and accelerometers to monitoring racks, supporting real-time data processing.
Built for industrial reliability, this module withstands extreme temperature changes, continuous vibration, and high electrical noise. It is fully compatible with the Bently Nevada 3300 series and compliant with international protection standards, guaranteeing seamless integration in condition monitoring and machinery protection applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 81545-01 |
| Function | Transducer I/O and recording terminal with dual epoxy relays |
| Relay Type | Dual epoxy-sealed relays for alarm and trip switching |
| Dimensions | 2.0" × 9.0" × 4.0" (5.1 × 22.9 × 10.2 cm) |
| Weight | 0.4 kg (0 lbs 12.9 oz) |
| Connection Type | Screw terminal |
| Signal Inputs | Proximity probes, accelerometers, velocity transducers |
| Signal Processing | High-speed analog-to-digital conversion |
| Output Signal | Digital output for monitoring system integration |
| Mounting Type | Rack-mounted in Bently Nevada 3300 series chassis |
| Operating Temperature | –20°C to +65°C |
| Environmental Protection | Epoxy-sealed relays for durability |
| System Compatibility | Compatible with Bently Nevada 3300 series |
| Certifications | CE, UL, CSA; API 670 compliant |
