Product Description

Overview

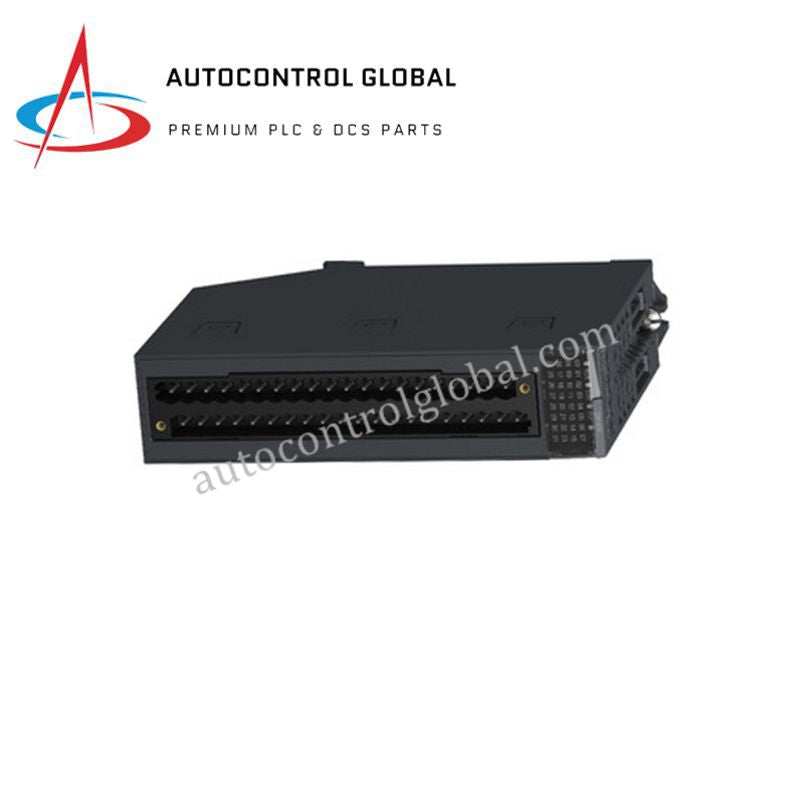

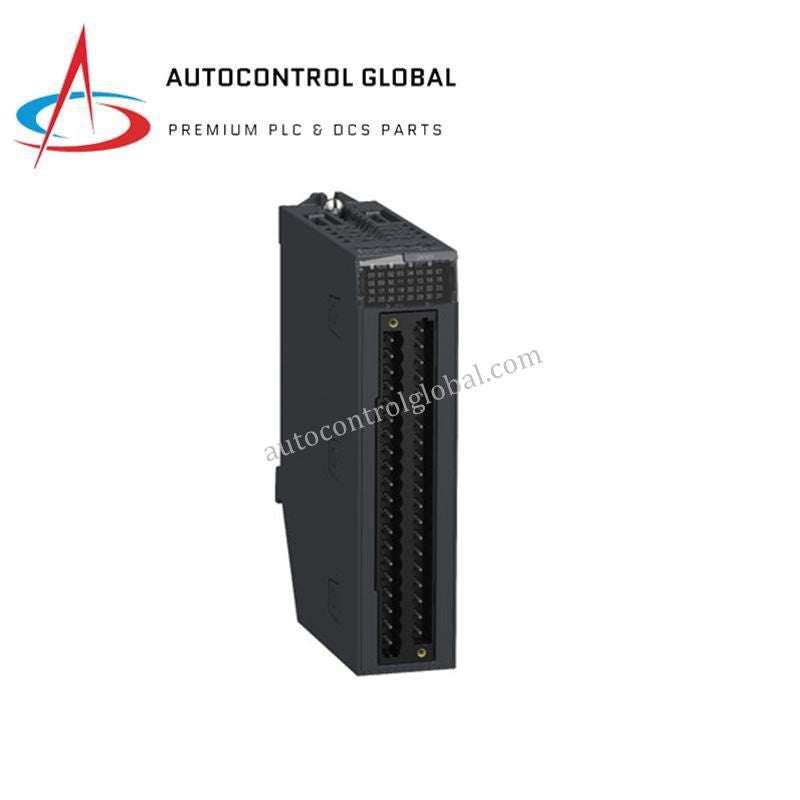

The Schneider BMXDAI1615 is a high-performance 16-channel DC discrete input module from the Modicon X80 range. Moreover, it is designed to acquire signals from field devices such as push buttons, limit switches, and proximity sensors. Its robust IP20-rated housing ensures reliable operation in harsh industrial environments. In addition, the module supports both M340 and M580 PAC systems, offering flexible integration for medium to large automation applications.

Technical Specifications

General

• Product Type: Discrete Input Module

• Series: Modicon X80

• Model: BMXDAI1615

• Number of Inputs: 16

• Input Voltage Range: 24 V DC (19–30 V DC typical)

• Input Current: 7 mA per channel

• Input Impedance: 3.5 kΩ

• Isolation Resistance: >10 MΩ at 500 V DC

• Response Time: Fast, suitable for high-speed automation

• Power Consumption: 2.5–3 W

• Current Draw: 80 mA at 3.3 V DC, 100 mA at 24 V DC

• Diagnostics: RUN LED (green), ERR LED (red), per-channel LEDs

• Protection: Internal protection; external fuse recommended

• Operating Temperature: –25 to +70 °C

• Storage Temperature: –40 to +85 °C

• Altitude: Up to 2000 m standard, 5000 m with derating

• Net Weight: 0.15 kg

• Protection Rating: IP20

Compliance & Certifications

• Standards: IEC, UL, CSA, CE

• EMC Directive: 2014/30/EU

• Low Voltage Directive: 2014/35/EU

FAQ

Q1: How many inputs does BMXDAI1615 support?
It provides 16 discrete DC input channels suitable for industrial automation.

Q2: What sensors are compatible with this module?
The module works with 2-wire and 3-wire DC proximity sensors compliant with IEC 60947-5-2 standards.

Q3: Is it suitable for harsh environments?
Yes, it features IP20 protection and operates from –25 to +70 °C reliably.

Q4: What protection features are included?
Each input group is protected against overload and short-circuit. External fuses are recommended.

Q5: Can it be used with M340 and M580 PAC systems?
Yes, it is fully compatible with Modicon M340 and M580 Programmable Automation Controllers.
