TEI14949 | AB Triaxial Connector for Microwave & Instrumentation
Manufacturer: ABB
-
Part Number: TEI14949
Condition：New with Original Package
Product Type: Triaxial Connector for Microwave & Instrumentation
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

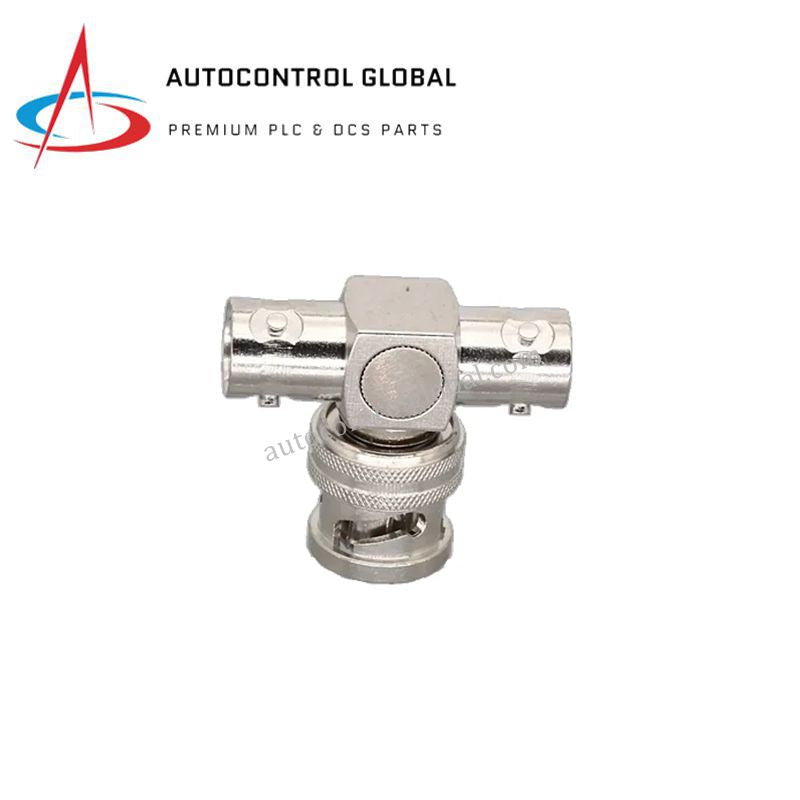

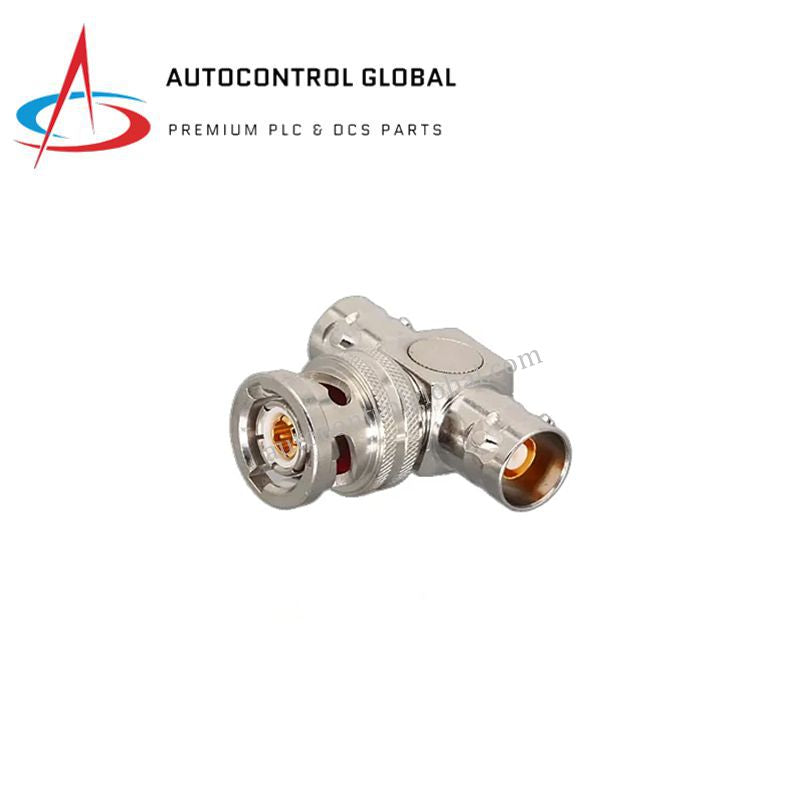

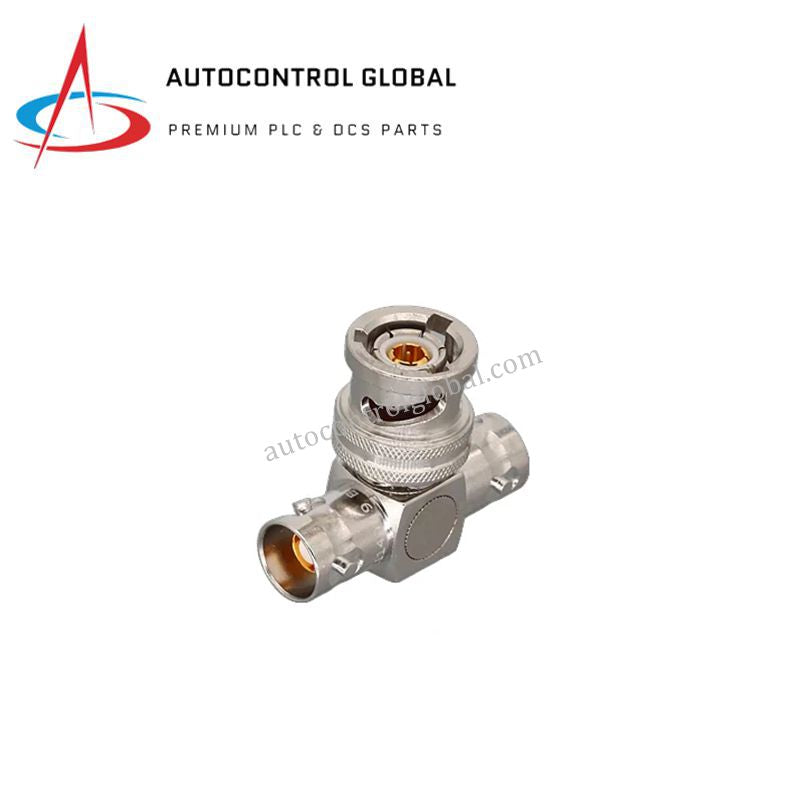

Allen-Bradley TEI14949 | BNC Female Isolated Panel Connector
Product Overview
The TEI14949 from Allen-Bradley is a high-performance coaxial connector module manufactured by Trompeter Electronics. Engineered for precision signal transmission, it supports RF, microwave, and instrumentation applications. Its robust construction ensures reliable performance even in harsh industrial environments.
This male connector features high-frequency support up to 18 GHz and an impedance of 50 Ω, making it suitable for critical communication and measurement systems. Its RoHS compliance guarantees environmental safety without compromising performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TEI14949 |
| Manufacturer | Trompeter Electronics / Allen-Bradley |
| Product Type | Coaxial Male Connector Module |
| Connector Type | Coaxial |
| Gender | Male |
| Diameter | 15 mm |
| Length | 43 mm |
| Impedance | 50 Ω |
| Voltage Rating | 500 V |
| Current Rating | 3 A |
| Frequency Range | DC to 18 GHz |
| Operating Temperature | –55°C to +155°C |
| Compliance | RoHS Compliant |
| Weight | 360 g |
| Country of Origin | USA |
| Applications | RF systems, microwave circuits, instrumentation setups |
| Condition | New, in stock |
FAQ
Q1: What frequency range does the TEI14949 support?
A1: It supports DC to 18 GHz, suitable for RF and microwave applications.
Q2: What is the connector type and gender?
A2: It is a coaxial male connector module.
Q3: What is the operating temperature range?
A3: The module operates from –55°C to +155°C.
Q4: Is the TEI14949 RoHS compliant?
A4: Yes, it is RoHS compliant, meeting environmental safety standards.
Q5: Is this connector in stock and ready for shipment?
A5: Yes, the TEI14949 is brand new in stock, shipping via DHL, FedEx, or EMS within 3–14 days depending on order size.
