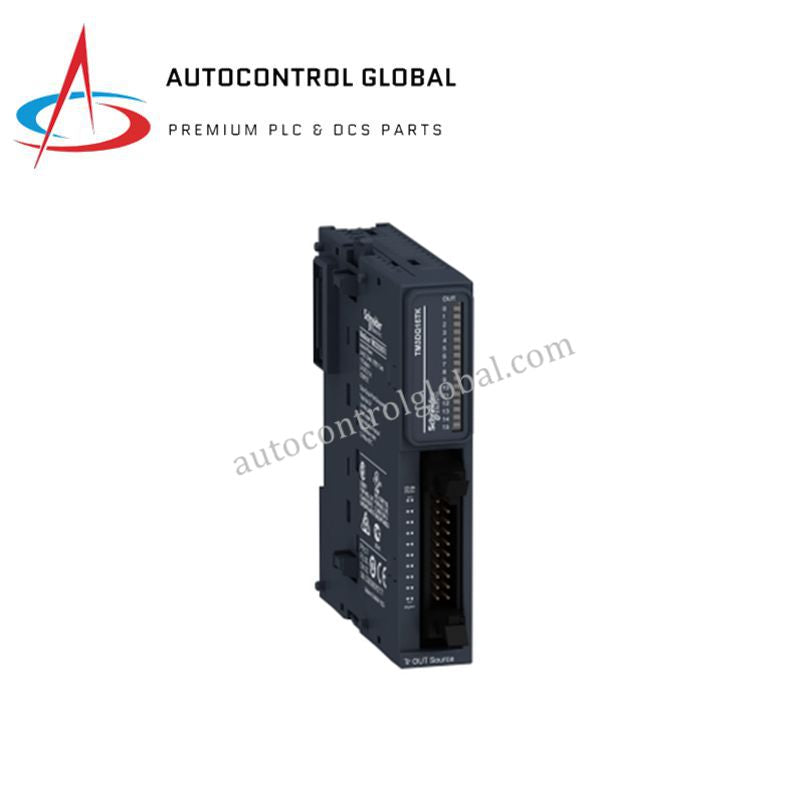

TM3DQ16TK | Schneider Modicon TM3 Compact Output Expansion Module

Product Description

The Schneider TM3DQ16TK is a compact discrete output module from the Modicon TM3 expansion range, designed to extend the output capacity of Modicon M221, M241, M251, and M262 PLCs. It provides 16 transistor outputs (PNP, sourcing logic) operating at 24 VDC, ideal for controlling relays, solenoids, lamps, and other low-power actuators.

This module integrates seamlessly into TM3 expansion systems using HE10 connectors, enabling compact wiring and flexible panel installation. Moreover, fast switching response times and LED diagnostics simplify monitoring and troubleshooting in demanding industrial environments.

With robust isolation between outputs and the bus, the TM3DQ16TK ensures reliable and safe operation, making it perfect for machine automation, packaging, and material handling applications. Its slim design allows efficient use of panel space while delivering high-performance functionality.

Technical Specifications

• Product type: Discrete output module

• Series: Modicon TM3

• Model: TM3DQ16TK

• Function: Provides 16 transistor outputs for PLC control

• Output type: Transistor (PNP, sourcing logic)

• Number of outputs: 16

• Output voltage: 24 VDC

• Output current per channel: 100 mA

• Leakage current (OFF state): ≤ 0.1 mA

• Switching time: Typical ON/OFF <1 ms

• Isolation: 500 V AC between channels and bus

• Diagnostics: 1 green LED per channel

• Power consumption: 5 mA at 5 VDC; up to 20 mA at 5 VDC and 10 mA at 24 VDC (active)

• Cable distance: ≤ 5 m (non-shielded)

• Mounting: DIN rail TH35‑15 or TH35‑7.5, IEC 60715

• Dimensions: Height: 90 mm; Width: 21.4 mm; Depth: 81.3 mm

• Net weight: 0.22 kg

• Protection rating: IP20

• Certifications: CE, UL, UKCA, RCM, EAC

• Lifecycle status: Active product

FAQ Content

Q1: How many outputs does the TM3DQ16TK module provide?
A1: The module provides 16 discrete transistor outputs with PNP sourcing logic.

Q2: What is the output voltage and current per channel?
A2: Each output operates at 24 VDC with a maximum current of 100 mA.

Q3: Which PLCs are compatible with this module?
A3: Compatible with Modicon M221, M241, M251, and M262 PLCs.

Q4: Does the module provide diagnostics for outputs?
A4: Yes, each channel has a green LED indicating output status for monitoring.

Q5: Can this module be mounted in compact panels?
A5: Yes, its slim design and DIN rail mounting save valuable panel space.
