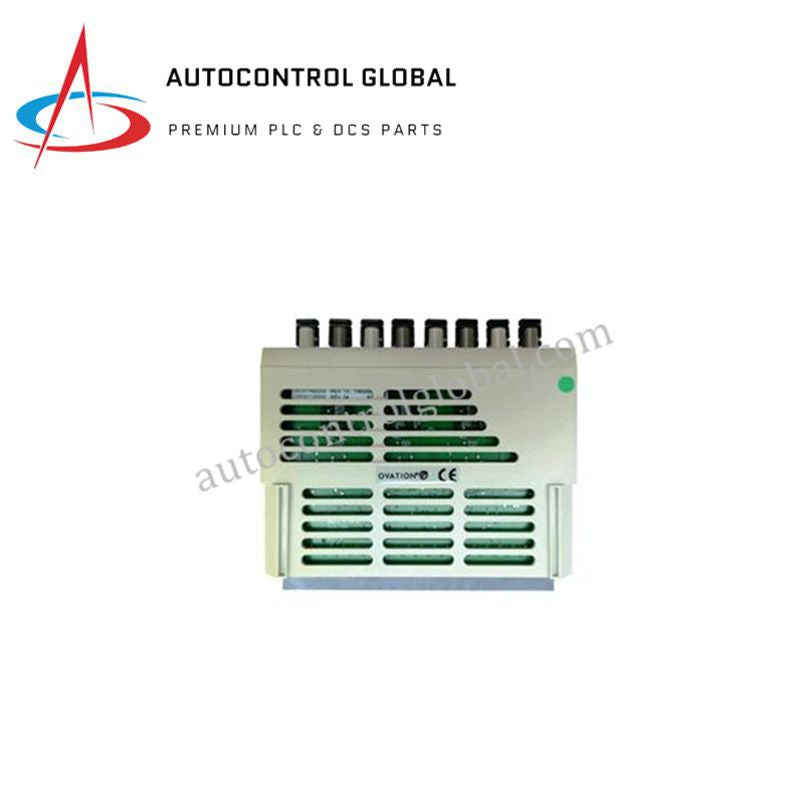

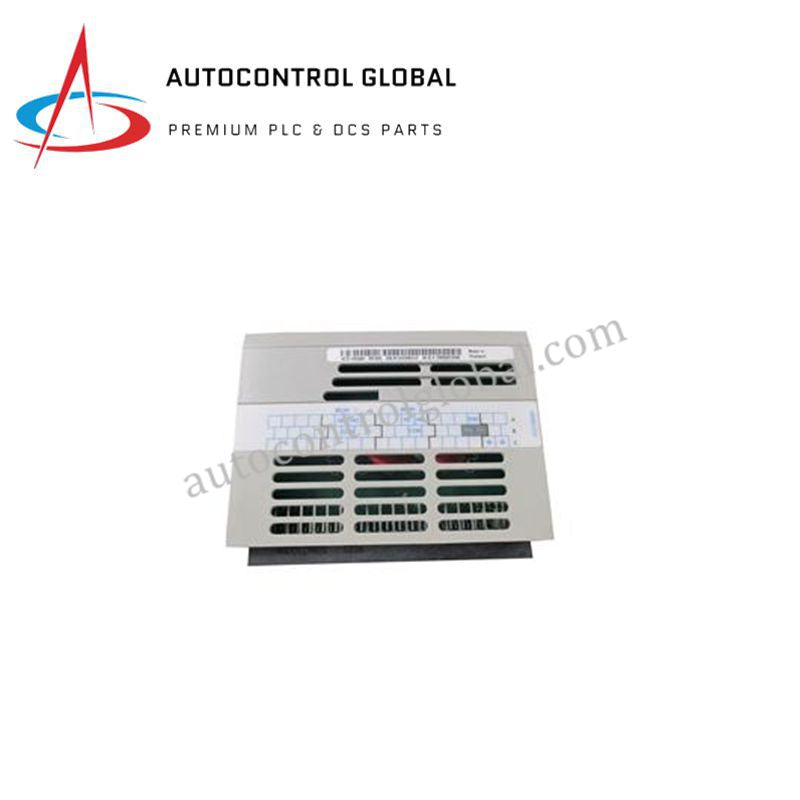

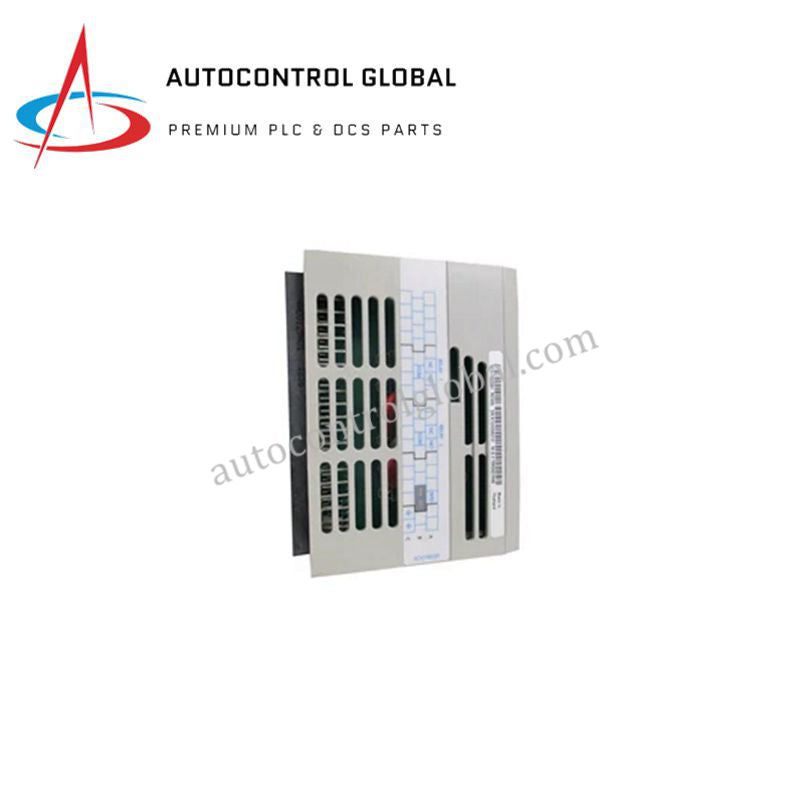

Emerson Ovation 5X00070G05 Analog Input Module – Product Description

Product Overview

The Emerson Ovation 5X00070G05 Thermocouple Analog Input Module provides precise temperature measurement for demanding industrial processes. It captures thermocouple signals and converts them into accurate digital data for the Ovation Distributed Control System. Moreover, the module supports stable performance in facilities that depend on continuous temperature monitoring. Its robust design ensures long-term reliability, and its fast sampling capability helps maintain responsive control in dynamic environments.

Technical Specifications

Model: Emerson Ovation 5X00070G05
Type: Thermocouple Analog Input Module
Manufacturer: Emerson (USA)
System Compatibility: Emerson Ovation DCS
Input Type: Thermocouple analog input
Supported Thermocouple Types: J, K, T, E, N, R, S, B
Channels: High-density multi-channel design (typically 8–16 channels)
Accuracy: ±0.1% of full scale
Resolution: 16-bit A/D conversion
Update Rate: Fast sampling suitable for real-time temperature monitoring
Isolation: Channel-to-system isolation for enhanced noise immunity
Operating Temperature: 0°C to +60°C
Storage Temperature: −40°C to +85°C
Humidity Range: 5% to 95% RH, non-condensing
Power Consumption: 5 W
Dimensions: 4.1 × 15.9 × 10.8 cm
Weight: 0.45 kg
Certifications: CE, RoHS
Origin: USA

FAQ

Q1: Which thermocouple types are supported by the 5X00070G05?
It supports J, K, T, E, N, R, S, B, and other standard industrial types.

Q2: Does the module integrate directly with the Ovation DCS?
Yes, it installs seamlessly within all Emerson Ovation control architectures.

Q3: What industries most commonly use this module?
It is widely used in power plants, petrochemical facilities, chemical processing, steel manufacturing, and water treatment operations.

Q4: Is the module hot-swappable during operation?
Yes, technicians can replace it without shutting down the system.

Q5: How accurate are the thermocouple readings?
It provides ±0.1% full-scale accuracy with 16-bit resolution for precise monitoring.
