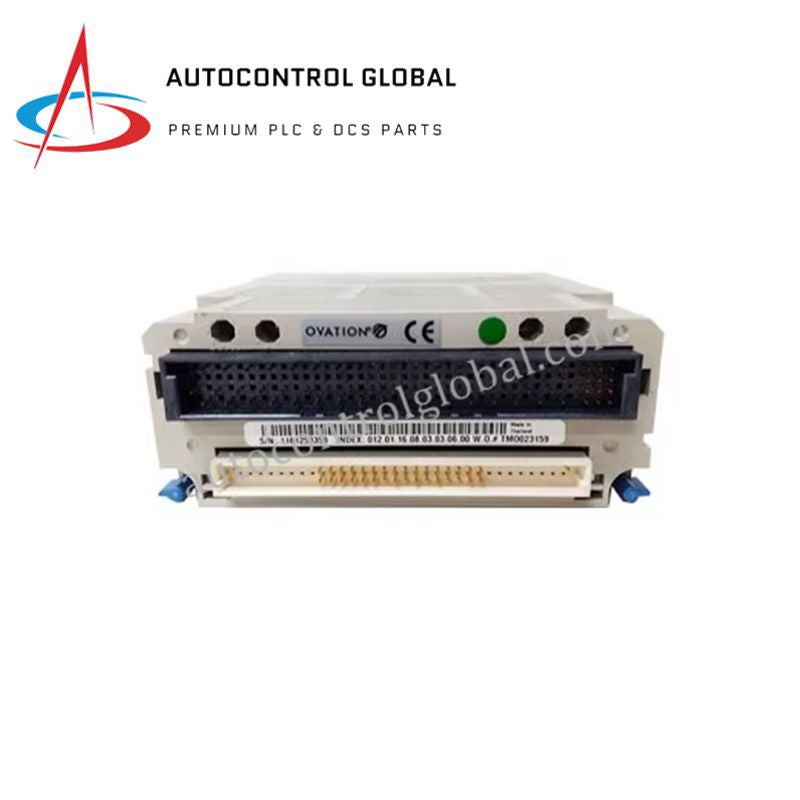

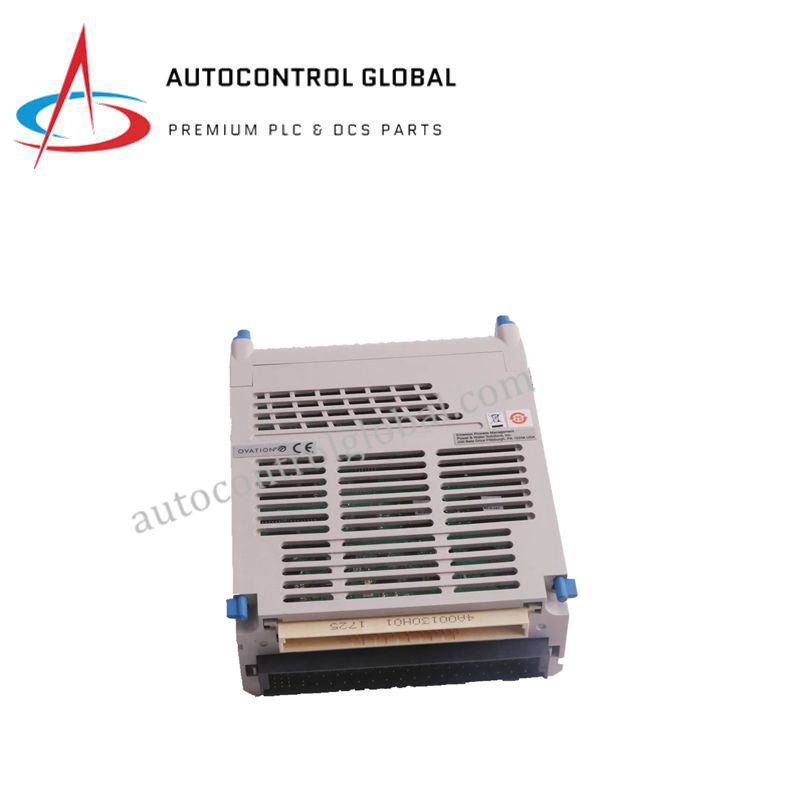

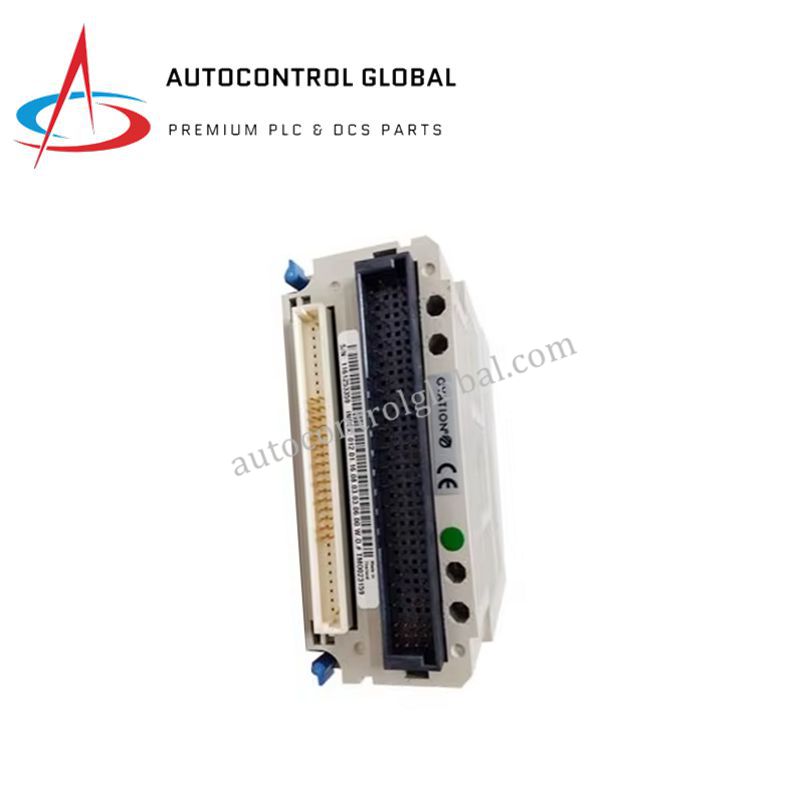

Emerson 5X00500G01 32-Channel Digital Output Module

Product Overview

The Emerson 5X00500G01 is a high-density 32-channel Digital Output Module designed for the Ovation™ DCS platform. It provides precise digital control signals to actuators, relays, and solenoids while maintaining extreme reliability in harsh industrial environments. Moreover, its compact design reduces panel space and integrates seamlessly into Ovation control systems for optimized automation performance.

Technical Specifications

Output Channels: 32 current-sourcing digital outputs
Output Type: IEC 61131‑2 protected DC outputs
Maximum Output Voltage: 24 VDC nominal (range 18–32 VDC)
Isolation: ±1,000 VDC between channels and ground
Response Time: <1 millisecond
Event Recording: Supports high-speed, time-stamped event capture
Diagnostics: Channel status LEDs, fault detection, self-test functions
Power Consumption: 6 W
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: 5%–95% non-condensing
Dimensions: 12.8 × 5.4 × 16.5 cm
Weight: 0.4 kg
Mounting: Standard Ovation I/O rack slot
Certifications: CE, RoHS

FAQ

Q: How many channels does the 5X00500G01 provide?
It provides 32 current-sourcing digital output channels in a single module.

Q: What protection does the module offer for industrial environments?
It offers ±1,000 VDC isolation between channels and operates from –40 °C to +70 °C.

Q: Can it capture events for diagnostics?
Yes, it supports precise, time-stamped event recording for troubleshooting and analysis.

Q: How fast is the response time?
The response time is less than 1 millisecond for rapid switching of actuators and relays.

Q: Is it compatible with Ovation DCS?
Yes, it integrates seamlessly into Ovation™ DCS racks and standard I/O slots.
