GE DS200DCFBG1B | High-Reliability DC Feedback Power Supply
Manufacturer: GE Fanuc
-
Part Number: DS200DCFBG1B
Condition：New with Original Package
Product Type: High-Reliability DC Feedback Power Supply
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

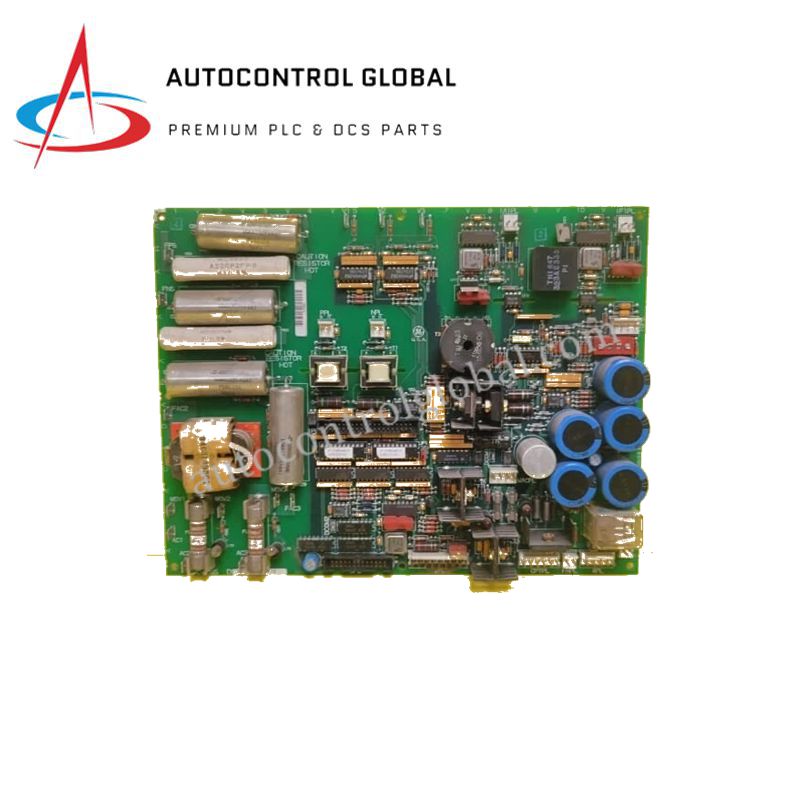

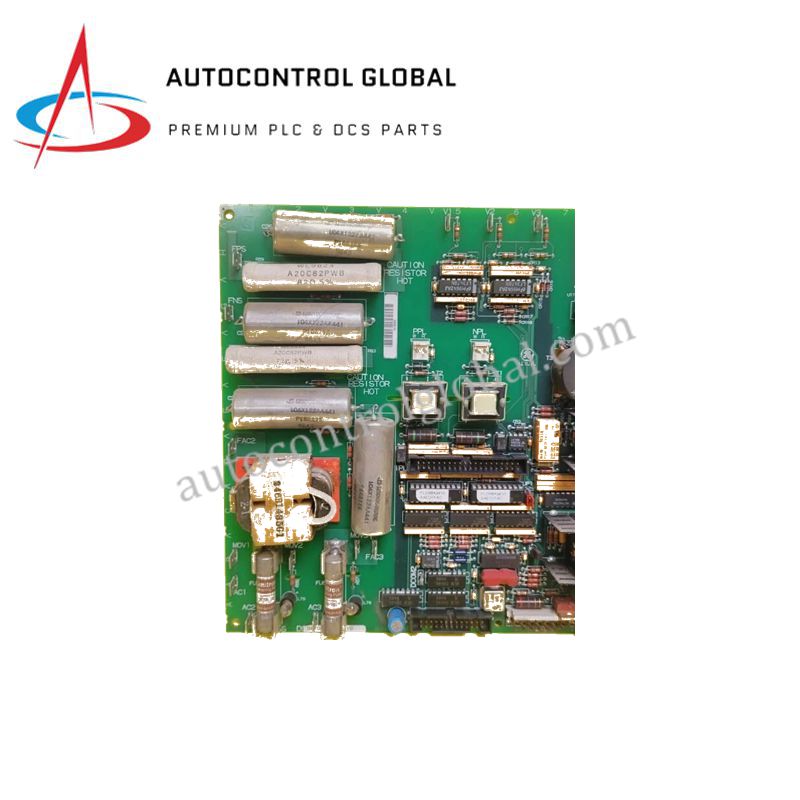

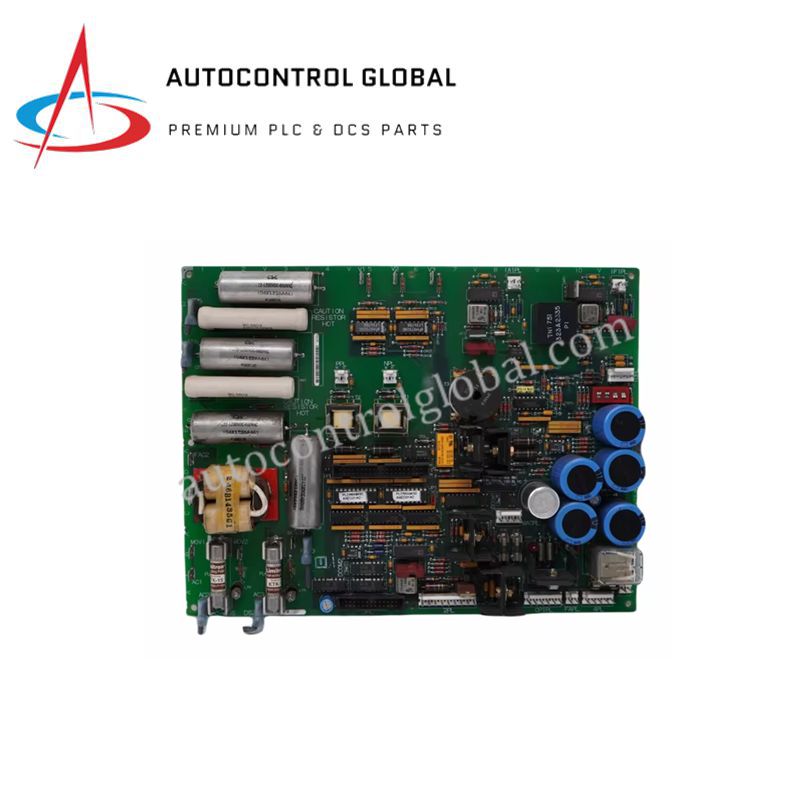

The GE DS200DCFBG1B is a DC feedback power supply board designed for Mark V Speedtronic, EX2000, DC2000, FC2000, and ME2000 control systems. It converts AC and DC inputs into multiple regulated control-level outputs, providing reliable power to critical system components, including cabinet fans.
This board integrates isolated outputs such as ±15V, ±24V, +5V DC, and 115V AC, eliminating the need for multiple small power supplies and reducing cabinet space. Moreover, its VCO frequency feedback converts analog signals into frequency signals for long-distance transmission with high noise immunity.
The DS200DCFBG1B is equipped with diagnostic LEDs, neon indicators, and test points for real-time monitoring of fuse status and voltages. In addition, it offers field configurability via jumpers and DIP switches, allowing voltage scaling and signal adjustments on-site without factory recalibration.
Built for harsh industrial environments, this board features conformal coating, wide operating temperature range, and robust protection features such as overvoltage, undervoltage, and overcurrent lockout. Its high MTBF (>250,000 hours) ensures dependable long-term operation in demanding control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DS200DCFBG1B |
| Manufacturer | General Electric (GE) |
| Product Type | DC Feedback Power Supply Board |
| Series Compatibility | Mark V, EX2000, DC2000, FC2000, ME2000, AC2000 |
| Functional Acronym | DCFB |
| Input Voltage | 38 VAC (±10%), 115 VAC (single-phase), 24 VDC |
| Output Voltages | +5V DC @ 4A, ±15V DC @ 0.8A, +24V DC @ 3A, –24V DC @ 1A, 115V AC @ 2A |
| Analog Feedback | Configurable 4–20 mA / 0–10 V (12-bit DAC) |
| Monitoring Signals | Armature current, field current, AC line voltage, phase sequence, VCO feedback |
| Protection Features | Overvoltage, undervoltage, overcurrent lockout; 3 fast-blow fuses |
| Diagnostics | 2 red LEDs (+24V/–24V fuse status), 1 neon lamp (115V AC fuse), 5 test points |
| Configurability | 12 jumpers (13 from REV BKC), 7 DIP switches |
| Operating Temperature | –40°C to +70°C |
| Coating | Conformal coating for industrial-grade durability |
| MTTR | < 3 minutes |
| MTBF | > 250,000 hours |
| Condition | Brand new |
| Country of Origin | USA |
FAQ
Q1: What voltages does the DS200DCFBG1B output?
A1: It provides +5V, ±15V, ±24V DC, and 115V AC for system components.
Q2: Can the board be adjusted on-site?
A2: Yes, field configurability is available via jumpers and DIP switches.
Q3: What protection features are included?
A3: It includes overvoltage, undervoltage, overcurrent lockout, and fast-blow fuses.
Q4: Is it suitable for harsh industrial environments?
A4: Absolutely, it has conformal coating and wide temperature tolerance for demanding applications.
Q5: What is the expected lifespan?
A5: The board features MTBF >250,000 hours, ensuring long-term reliability.
