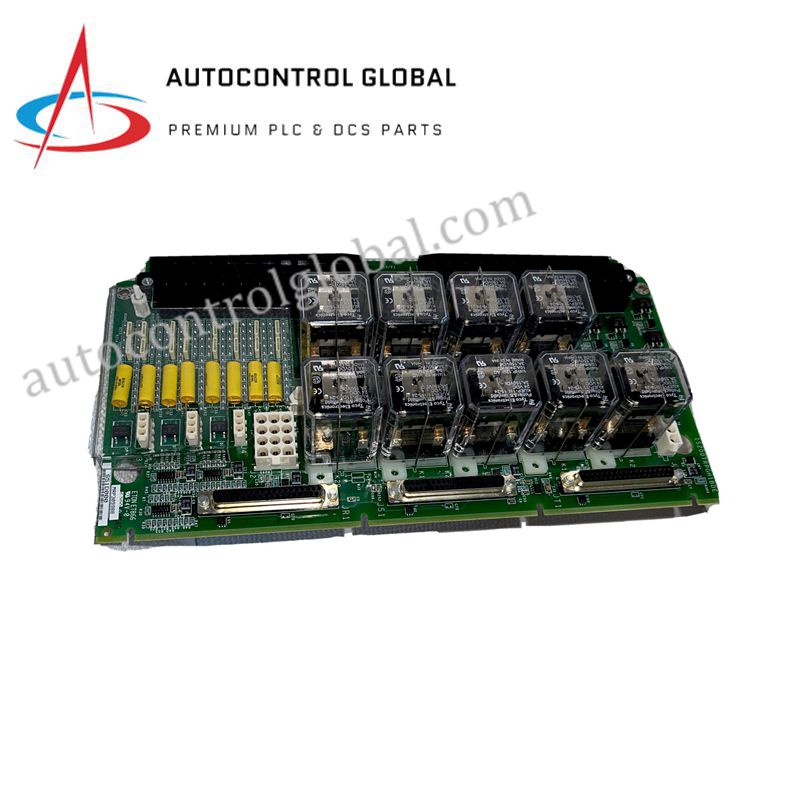

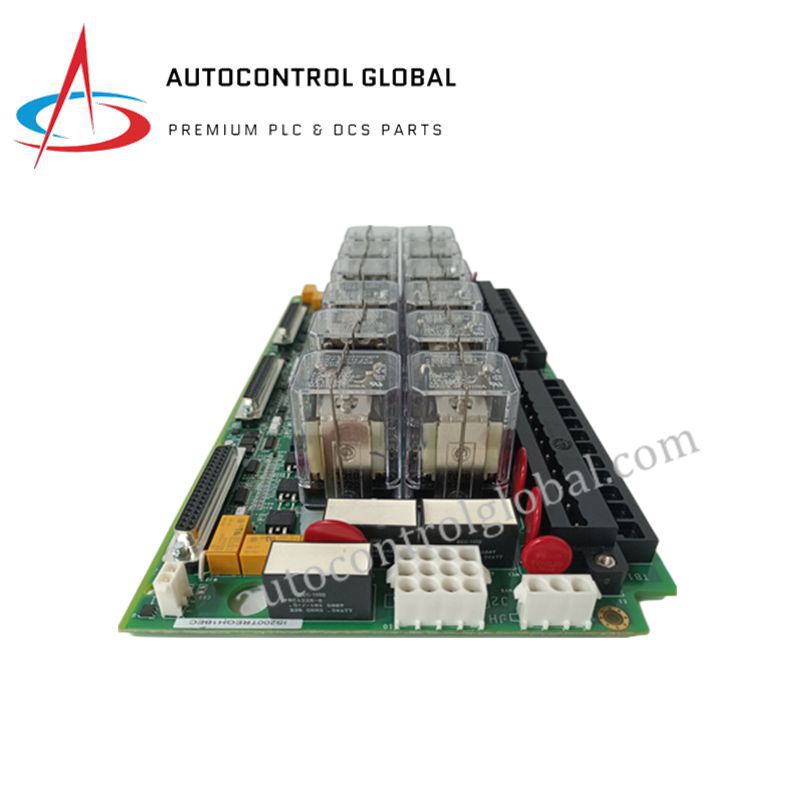

IS200VCRCH1BBD | GE Mark VI Voltage Current Relay Control Board

Product Description

The GE IS200VCRCH1BBD is a robust discrete I/O board engineered for the Mark VI turbine control system. It processes voltage and current inputs from various sensors and generates relay outputs for alarms, trips, and status signals. Moreover, the module features high-speed data acquisition to ensure rapid response in critical turbine protection applications. In addition, its rugged PCB construction with diagnostic LEDs supports continuous operation under harsh industrial conditions. With Modbus TCP/IP support, this board seamlessly integrates into modern industrial communication networks. Compact design allows straightforward installation in standard Mark VI racks, making it ideal for power generation, petrochemical, and heavy industrial automation environments.

Technical Specifications

Manufacturer: General Electric (GE)
Model / Part Number: IS200VCRCH1BBD
Type: Voltage Current Relay Control Board / Discrete I/O Board
System Compatibility: GE Mark VI Turbine Control System
Function: Processes voltage/current inputs and generates relay outputs for alarms, trips, and status
Input Voltage: 24 VDC nominal
Communication: Modbus TCP/IP supported
Diagnostics: Built-in self-test, fault detection, and LED indicators for channel status
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Dimensions: 330 mm × 280 mm × 25 mm
Weight: 0.5 kg
Mounting: Standard installation within Mark VI racks
Origin: USA

FAQ

Q: What is the primary function of the IS200VCRCH1BBD module?
It processes voltage and current inputs and generates relay outputs for alarms, trips, and status.

Q: Which turbine control system is it compatible with?
It is fully compatible with GE Mark VI turbine control systems for gas and steam turbines.

Q: What communication protocol does it support?
The module supports Modbus TCP/IP for integration into industrial networks.

Q: What is its operating temperature range?
It operates reliably between –40 °C and +70 °C in harsh environments.

Q: Where is this module typically used?
In power generation, petrochemical, and heavy industrial automation systems requiring turbine protection.
