PR9350/02 Inductive Sensor | EPRO Shaft Position Monitoring Device
Manufacturer: Epro
-
Part Number: PR9350/02
Condition：New with Original Package
Product Type: Shaft Position Monitoring Device
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

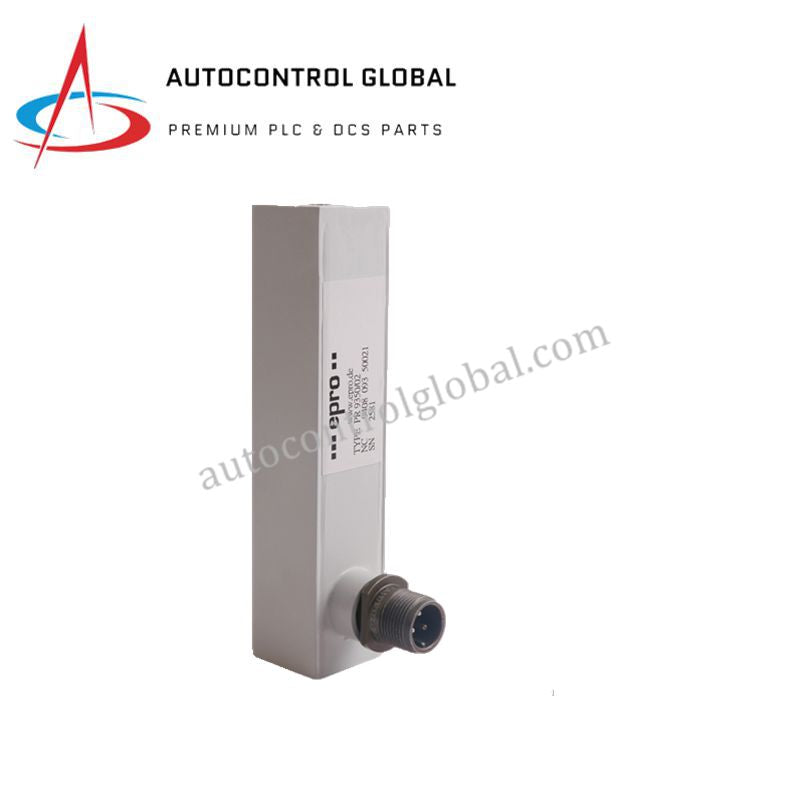

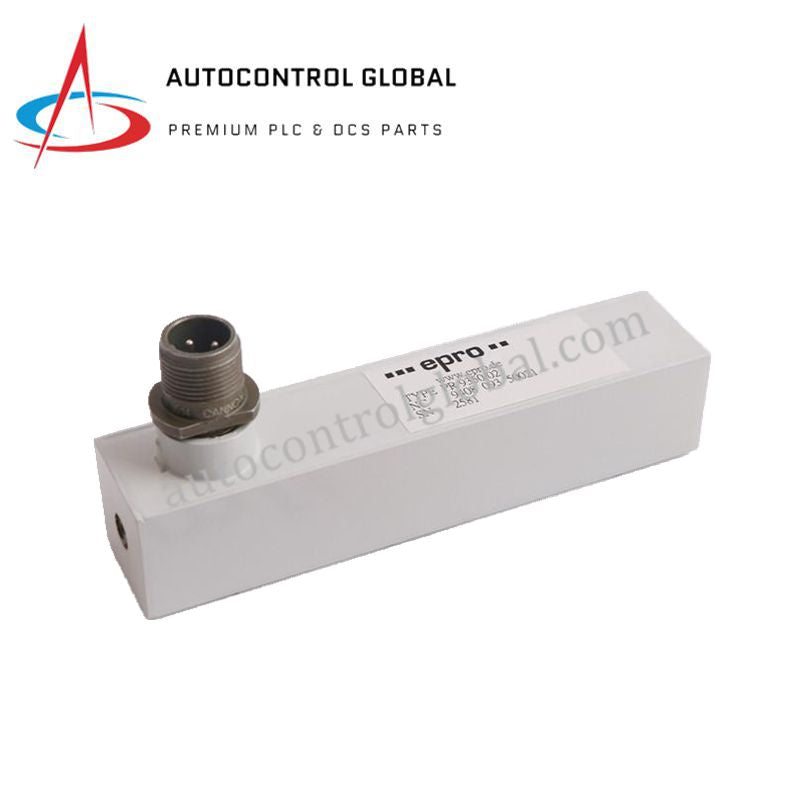

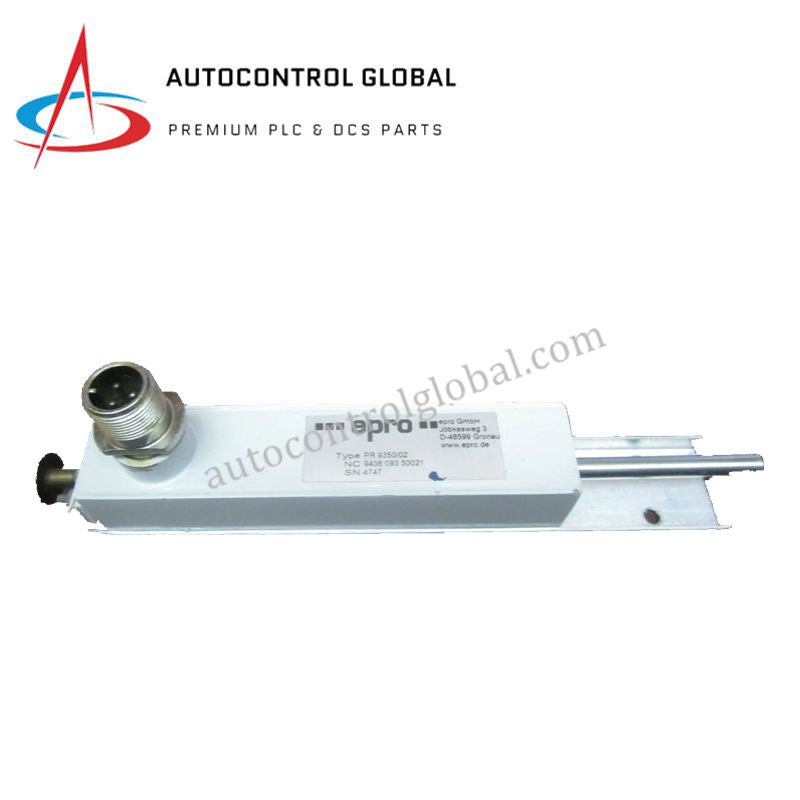

EPRO PR9350/02 Inductive Displacement Sensor
The EPRO PR9350/02 is a high-precision inductive displacement sensor (LVDT type) designed for surface-contact measurement of radial and axial shaft displacement, position, and thermal expansion. It provides accurate analog voltage output and performs reliably in turbines, compressors, pumps, and fans. Engineered by Emerson, the sensor withstands high temperatures, mechanical stress, and harsh industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Sensor Type | Inductive displacement sensor (LVDT) |
| Model | PR9350/02 |
| Measurement Principle | Contact-based inductive sensing |
| Static Measurement Range | ±25 mm |
| Sensitivity | 270 mV/V (at 5 kHz full scale) |
| Linearity Error | < 2% |
| Supply Voltage | 5 V AC (3–5 kHz excitation frequency) |
| Sensor Dimensions | 28 × 28 × 222 mm |
| Weight | 0.5 kg |
| Temperature Range | –20°C to +120°C |
| Sensor Tip Material | Stainless steel or alloy |
| Output Signal | Analog voltage proportional to displacement |
| Installation Type | Surface contact; mounted to measure cylinder expansion or shaft movement |
| Environmental Protection | Industrial-grade sealing against dust and moisture |
FAQ
Q1: Are these products new and original?
A1: Yes, the EPRO PR9350/02 is 100% brand new and original from the factory.
Q2: Do you have stock available?
A2: Yes, we have stock. Orders usually ship within 3 days to 2 weeks, depending on quantity and logistics.
Q3: Which shipping methods are available?
A3: We typically ship via DHL, TNT, FedEx, UPS, or EMS for fast and secure delivery.
Q4: What if the sensor has quality issues?
A4: We offer a 30-day return policy to ensure worry-free purchasing.
Q5: What is the measurement range of this sensor?
A5: The PR9350/02 provides a ±25 mm static measurement range with high linearity.
Q6: Can this sensor operate at high temperatures?
A6: Yes, it works reliably from –20°C to +120°C in industrial environments.
Q7: Is this suitable where eddy current sensors are not recommended?
A7: Yes, it is ideal for applications where material or temperature prevents the use of eddy current sensors.
