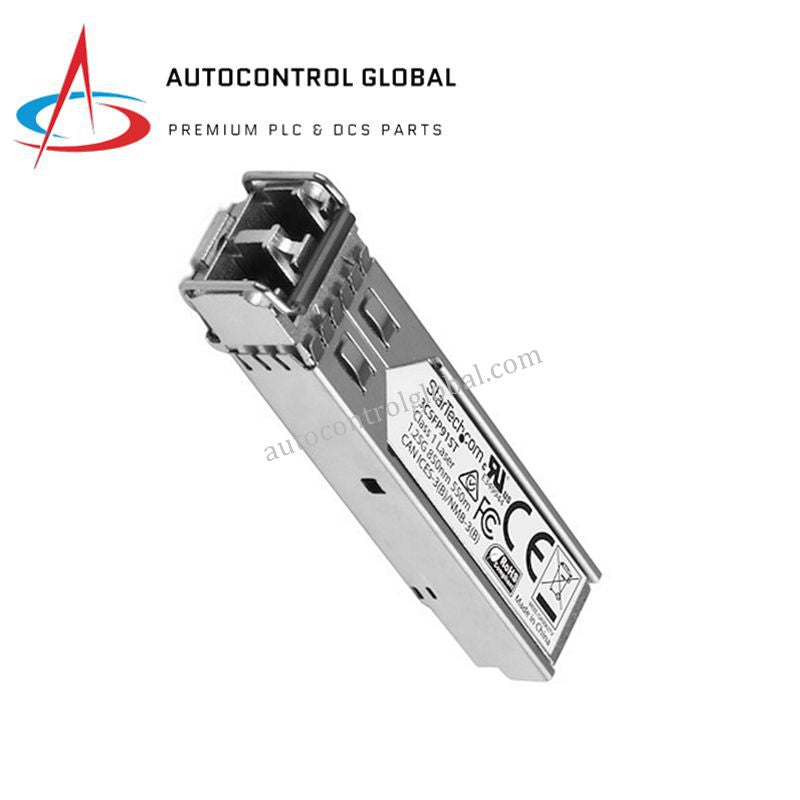

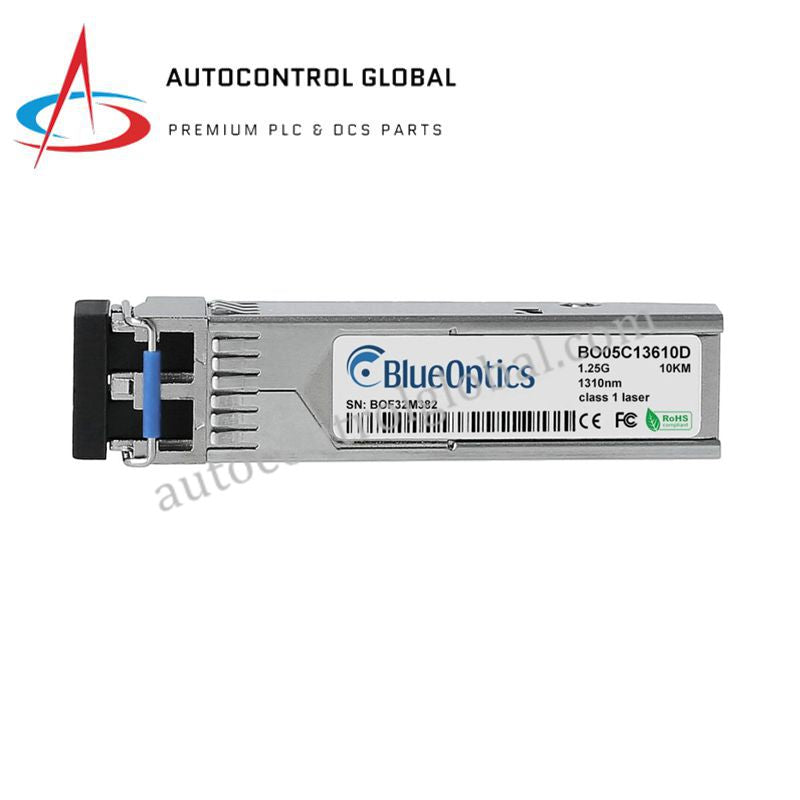

Product Description – Schneider TCSEAAF1LFS00 Fiber SFP Module

The Schneider TCSEAAF1LFS00 is a high-performance Fiber SFP (Small Form-factor Pluggable) transceiver designed for industrial Ethernet applications. It provides a reliable 1000BASE-LX Gigabit Ethernet connection, supporting both single-mode and multimode fiber transmission. Moreover, the module is hot-swappable, enabling seamless installation and replacement without disrupting ongoing network operations.

With its compact LC duplex connector design, the module integrates easily into TCSESM and MCSESM industrial switches. Therefore, it offers a flexible solution for extending Ethernet networks over long distances while maintaining high immunity to electromagnetic interference. Its lightweight and compact form factor make it ideal for deployment in space-constrained switch chassis.

Technical Specifications

Transmission Characteristics

• Ethernet Standard: 1000BASE-LX (Gigabit Ethernet)

• Connector Type: LC duplex fiber connector

• Supported Fiber Types: Single-mode 9/125 µm, Multimode 50/125 µm or 62.5/125 µm

• Transmission Distance:

• Multimode: up to 500 m

• Single-mode: up to 20 km

• Wavelength: 1310 nm

• Data Rate: 1 Gbps full duplex

Mechanical Characteristics

• Dimensions (W × H × D): 20 × 18 × 50 mm

• Weight: 0.04 kg

• Mounting: Plug-in SFP slot of TCSESM switches

• Hot-swappable: Yes

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +85 °C

• Relative Humidity: 5–95% non-condensing

• Protection Rating: IP20 when installed in switch chassis

Compliance & Sustainability

• Standards: IEEE 802.3z Gigabit Ethernet standard

• Certifications: CE, UL, CSA

• Packaging: Minimum 70% recycled cardboard

• Sustainability: RoHS and REACh compliant

FAQ

Q1: Which fiber types are supported by TCSEAAF1LFS00?
It supports single-mode (9/125 µm) and multimode (50/125 µm, 62.5/125 µm) fibers.

Q2: What is the maximum transmission distance?
Up to 500 m for multimode fiber and 20 km for single-mode fiber.

Q3: Is this module hot-swappable?
Yes, it allows replacement without interrupting network operation.

Q4: Which switches are compatible with this SFP module?
Compatible with Schneider TCSESM and MCSESM industrial Ethernet switches.

Q5: What is the operating temperature range?
It operates between 0 °C and +60 °C for standard industrial conditions.
