Product Description – Schneider TCSEGPA23F14F Profibus Remote Master

The Schneider TCSEGPA23F14F is a high-performance Profibus DP V1 Remote Master module designed to bridge Ethernet Modbus TCP/IP networks with Profibus field devices. It enables reliable communication between Modicon PLCs and Profibus devices such as drives, sensors, and actuators. Moreover, its compact design allows installation close to the process instrumentation, minimizing wiring complexity and latency.

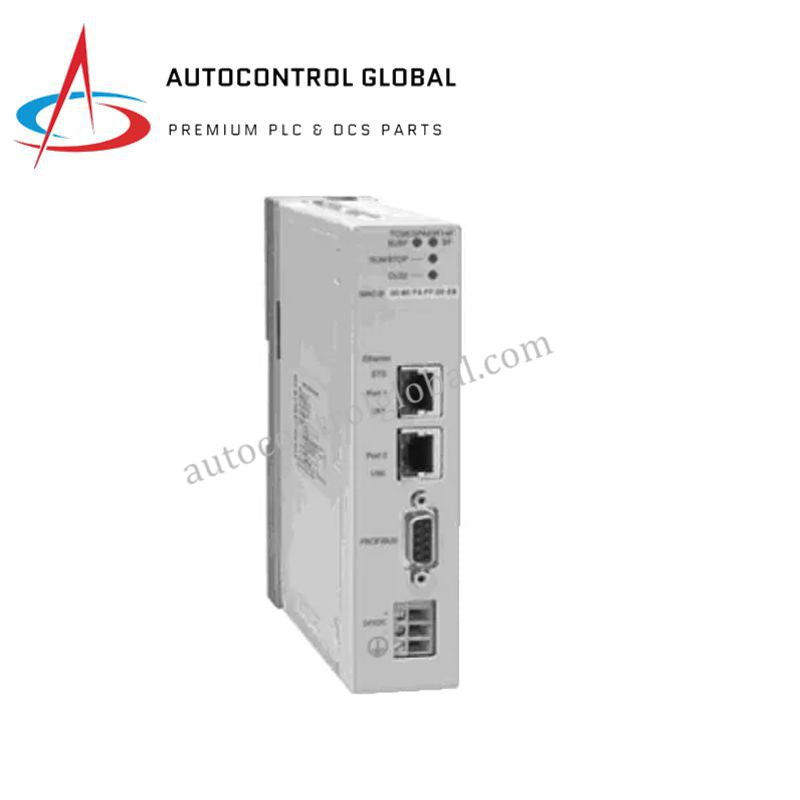

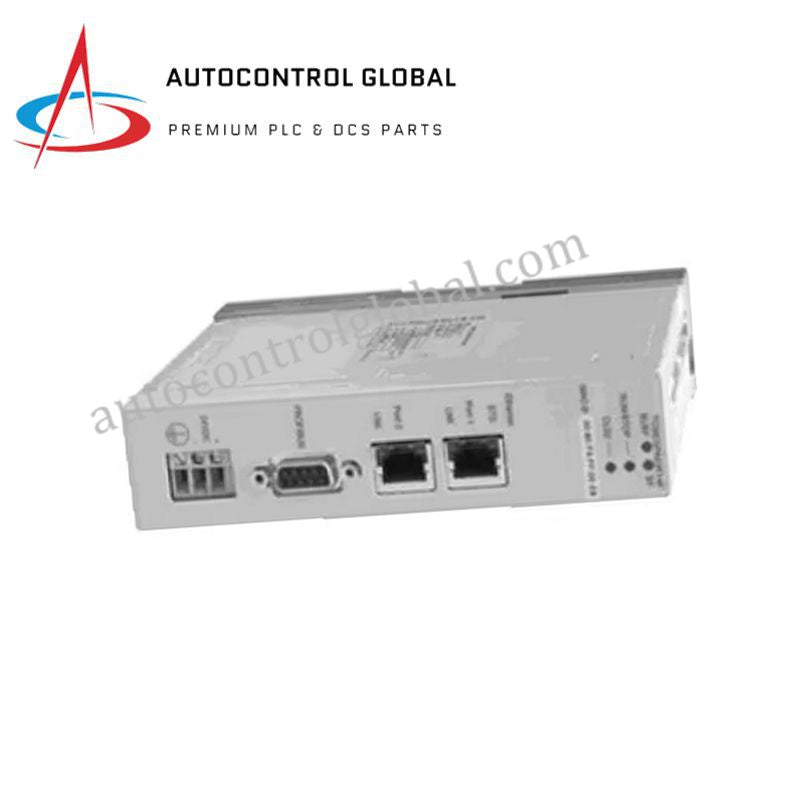

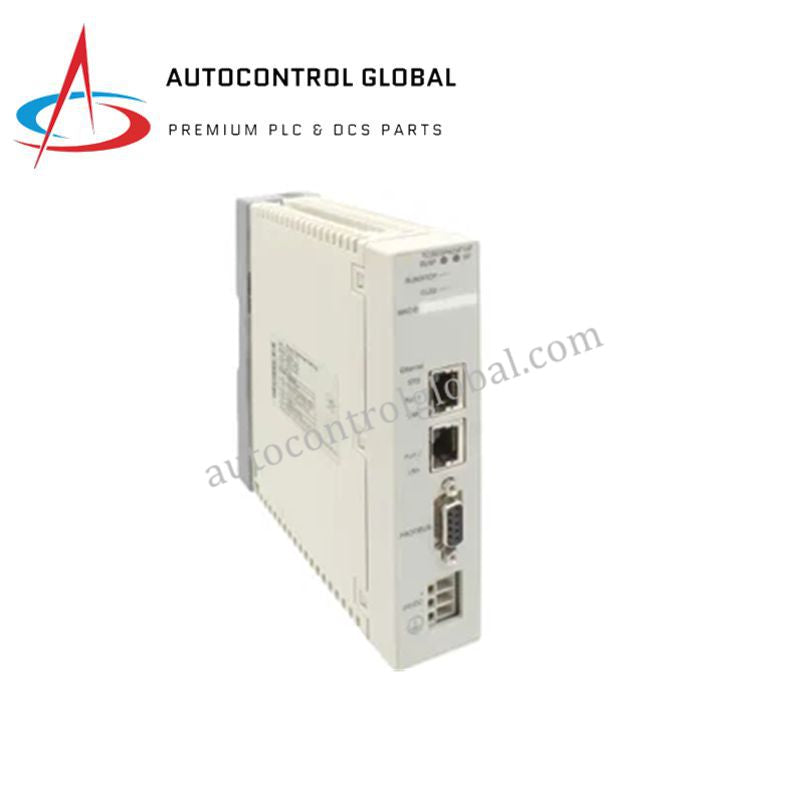

Equipped with dual Ethernet RJ45 ports and a Profibus DP SUB-D 9 connector, this module supports master class 1, master class 2, and slave modes. Therefore, it provides flexible integration into hybrid automation systems while ensuring high-speed, deterministic data exchange. Hot-swappable capabilities allow maintenance without disrupting network operations, and robust diagnostics simplify system monitoring.

Technical Specifications

Communication

• Supported PLCs: Modicon Premium, Quantum, M340, M580

• Gateway Function: Ethernet Modbus TCP ↔ Profibus DP V1

• Physical Interface: RS‑485

• Master Class 1: Profibus DP

• Master Class 2: Profibus DP

• Slave: Modbus TCP

• Mode of Transmission: NRZ (Non-Return to Zero)

• Transmission Medium:

• Profibus: 2 twisted shielded pairs cable

• Modbus TCP: Category 5 STP cable

• Transmission Rate:

• Profibus: 9.6 kbit/s to 12 Mbit/s (distance varies with repeaters)

• Modbus TCP: 10/100 Mbps Ethernet

Mechanical Characteristics

• Structure Type: Industrial bus module

• Mounting: DIN‑rail or panel

• Dimensions: 144 × 144 × 200 mm

• Weight: 2.5 kg

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +85 °C

• Relative Humidity: 5–95% non‑condensing

• Protection Rating: IP20 (standard panel installation)

Compliance & Sustainability

• Certifications: CE, UL, CSA

• Packaging: Minimum 70% recycled cardboard

• Sustainability: Eligible for Schneider’s global take-back program

FAQ

Q1: Which PLCs are compatible with TCSEGPA23F14F?
It supports Modicon Premium, Quantum, M340, and M580 PLCs.

Q2: Can this module act as both master and slave?
Yes, it supports Profibus Master Class 1, Master Class 2, and Modbus TCP Slave modes.

Q3: What communication ports are available on this module?
It has 2 Ethernet RJ45 ports for Modbus TCP and 1 Profibus DP SUB-D 9 connector.

Q4: Is hot-swapping supported?
Yes, the module can be replaced or installed without interrupting the network.

Q5: What is the maximum Profibus transmission speed?
Up to 12 Mbit/s, depending on cable length and repeaters.
