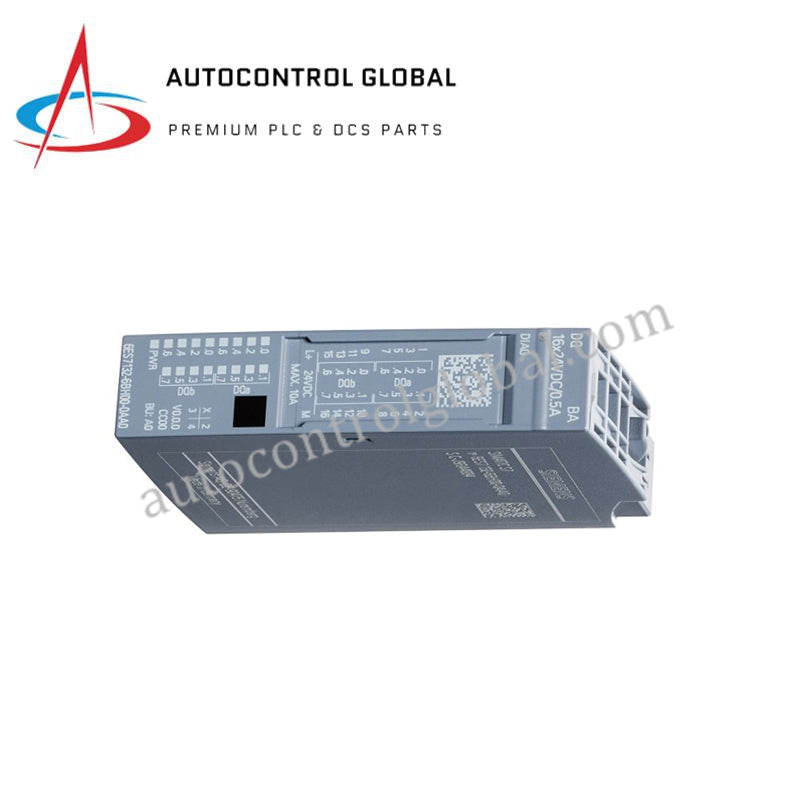

ET 200SP 16-Channel DO Module | Siemens 6ES7132-6BH00-0AA0
Manufacturer: Siemens
-
Part Number: 6ES7132-6BH00-0AA0
Condition：New with Original Package
Product Type: ET 200SP 16-Channel DO Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Siemens SIMATIC ET 200SP 6ES7132-6BH00-0AA0 Digital Output Module
The 6ES7132-6BH00-0AA0 (Model: DQ 16x24VDC/0.5A BA) is a high-density digital output electronics module designed for the Siemens SIMATIC ET 200SP distributed I/O system. As part of the "Basic" (BA) line, this module provides an efficient and cost-effective solution for large-scale digital signaling. The 6ES7132-6BH00-0AA0 (Order Number: 6ES7132-6BH00-0AA0) features 16 source-switching (PNP) channels within a compact 15mm width, allowing for maximum I/O density in space-constrained control cabinets.
Engineered for reliability, the 6ES7132-6BH00-0AA0 (Part Number: 6ES7132-6BH00-0AA0) is suitable for driving standard industrial loads, including solenoid valves, indicator lamps, and DC contactors. It integrates seamlessly with BaseUnit (BU) Type A0 and utilizes the CC00 color code for easy terminal identification. With built-in module diagnostics and short-circuit protection, it ensures high system uptime and simplified maintenance, upholding the industrial Expertise and Trustworthiness (E-E-A-T) expected from Siemens automation hardware.
Detailed Technical Specifications
The 6ES7132-6BH00-0AA0 (Model: 6ES7132-6BH00-0AA0) provides the following technical parameters for modern automation architectures:
| Feature | Details |
| Manufacturer | Siemens AG |
| Product Series | SIMATIC ET 200SP |
| Model Number | 6ES7132-6BH00-0AA0 |
| Product Type | Digital Output Module (DQ) |
| Function Class | Basic (BA) |
| Number of Outputs | 16 Channels |
| Output Type | Source Output (PNP / P-switching) |
| Rated Load Voltage | 24 V DC |
| Output Current | 0.5 A per channel (Max. 8 A per module) |
| Load Types | Resistive, Inductive, and Lamp loads |
| Diagnostics | Module-level diagnostics; Short-circuit detection |
| BaseUnit Compatibility | Type A0 (CC00 Color Code) |
| Dimensions (W x H x D) | 15 mm x 73 mm x 58 mm |
| Net Weight | 0.04 kg |
| Operating Temperature | 0°C to +60°C (Horizontal installation) |
