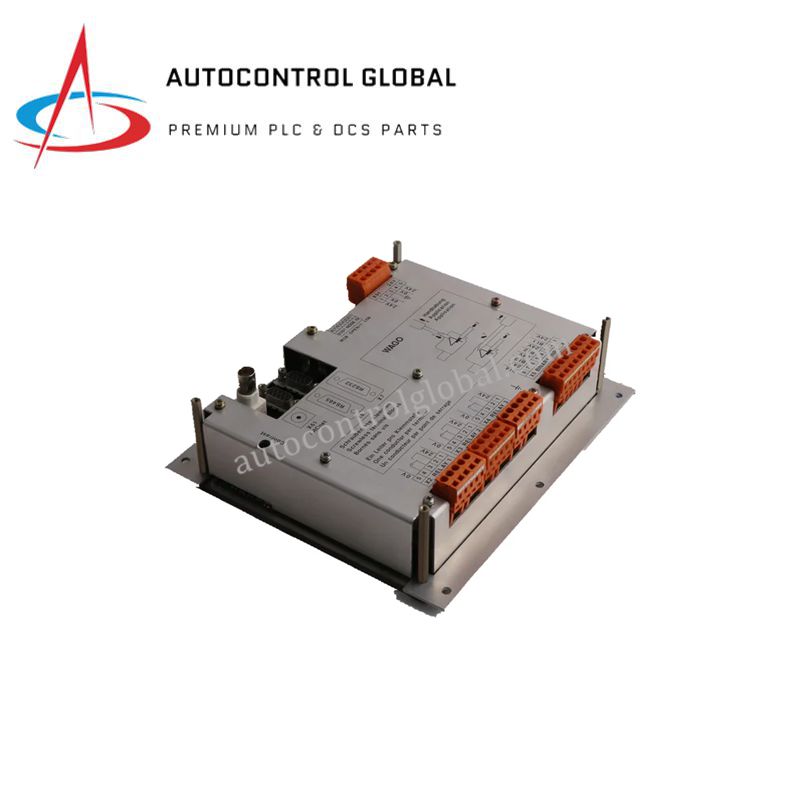

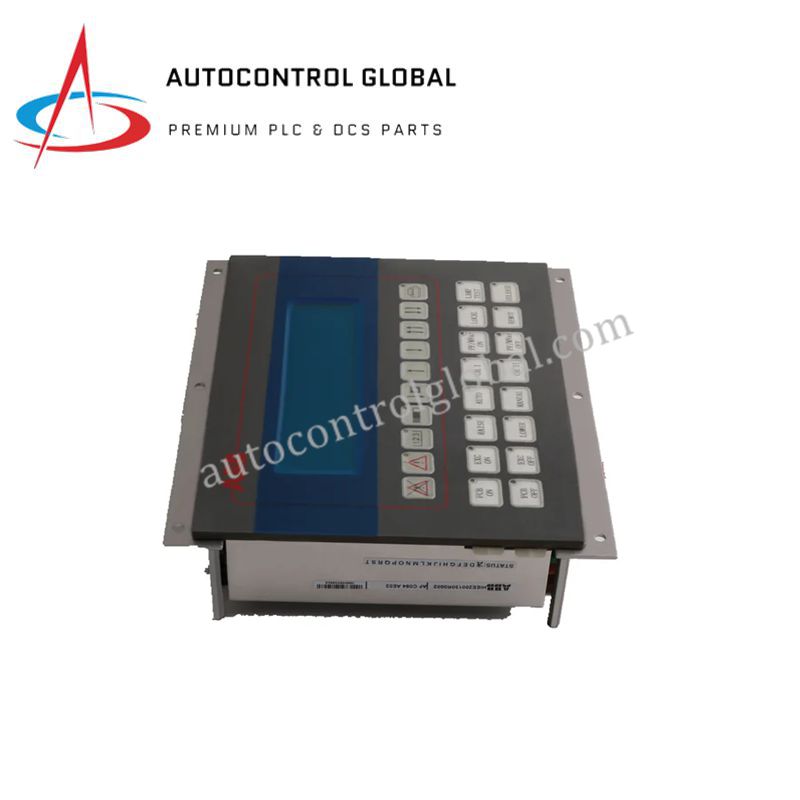

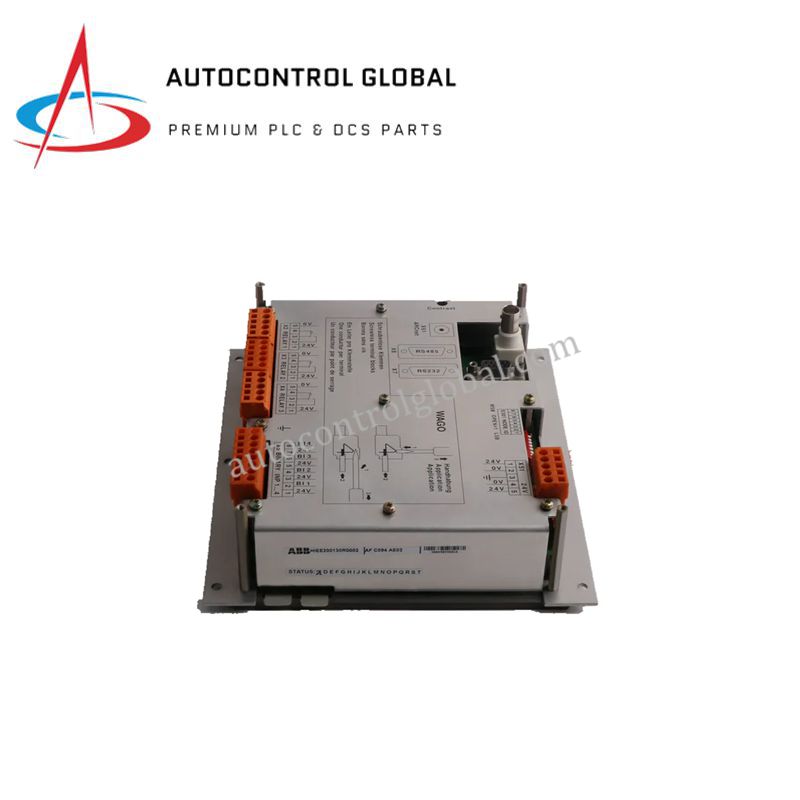

AFC094AE02 | ABB ARCnet LCD Operator Interface Panel
Manufacturer: ABB
-
Part Number: HIEE200130R0002 AFC094AE02
Condition：New with Original Package
Product Type: ARCnet LCD Operator Interface Panel
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB AFC094AE02 ARCnet Control Panel (HIEE200130R0002)
Overview
The ABB AFC094AE02 is an ARCnet control panel designed for seamless integration into ABB DCS systems.
It functions as an LCD operator interface, enabling intuitive human-machine interaction for industrial automation.
With optional Modbus RTU support, the panel is ideal for power generation, petrochemical, and manufacturing sectors.
Its robust construction, high-clarity LCD, and EMI resistance enhance operational efficiency and system reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | AFC094AE02 |
| Part Number | HIEE200130R0002 |
| Product Type | ARCnet Control Panel (LCD Operator Panel) |
| Power Supply | 24 V DC (range: 18–32 V DC) |
| Communication Interface | ARCnet (supports Modbus RTU extension) |
| Display | LCD screen (monochrome or color depending on configuration) |
| Protection Rating | IP20 (cabinet installation) |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (H × W × D) | 300 mm × 200 mm × 20 mm |
| Weight | 1.36 kg |
| Mounting Options | Panel-mounted or rack-mounted |
| Certifications | CE, UL, RoHS |
| Country of Origin | Switzerland |
| Application Areas | Industrial automation, DCS operator interface, process control |
FAQs
Q1: Is the ABB AFC094AE02 panel brand new?
✅ Yes, it is full new original ABB product.
Q2: What communication protocols are supported?
✅ Supports ARCnet, with optional Modbus RTU extension.
Q3: What power supply is required?
✅ Operates on 24 V DC, with an input range of 18–32 V DC.
Q4: What is the display type?
✅ Equipped with a high-clarity LCD screen, monochrome or color depending on configuration.
Q5: What are the mounting options?
✅ Can be panel-mounted or rack-mounted based on installation requirements.
