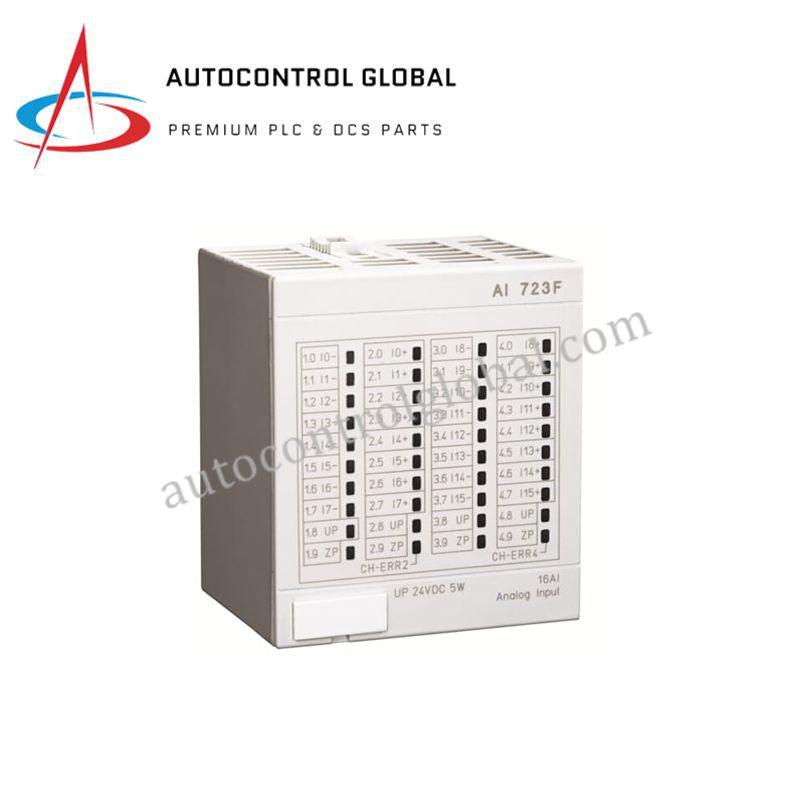

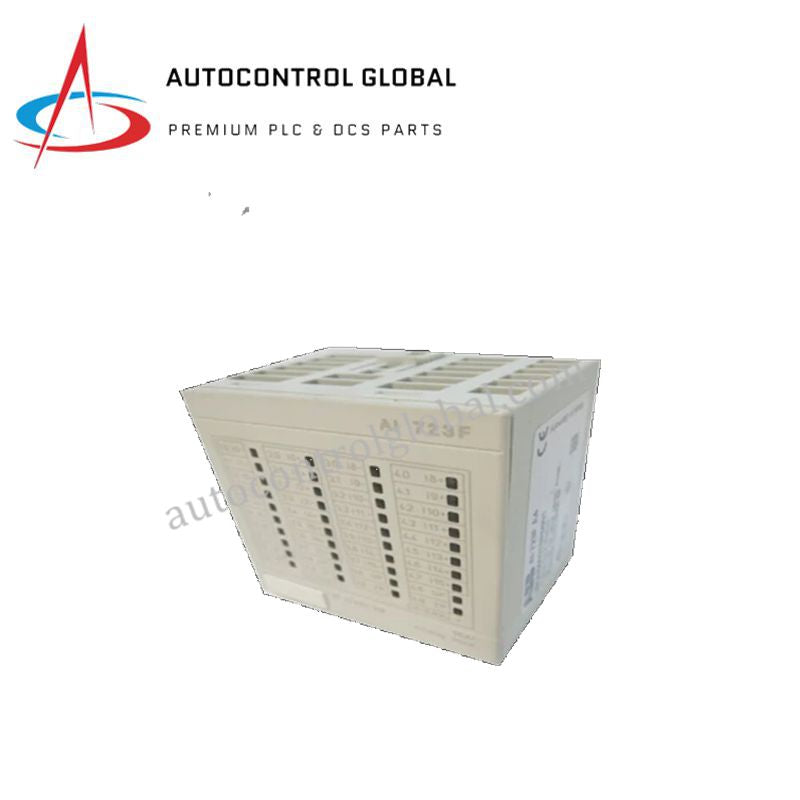

AI723F A2 ABB Module | High-Precision Analog Input Interface
Manufacturer: ABB
-
Part Number: DC732F A0
Condition：New with Original Package
Product Type: High-Precision Analog Input Interface
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The ABB AI723F A2 is a high-performance analog input module engineered for ABB’s AC 800F Freelance DCS systems. It features 16 analog input channels divided into two configurable groups, supporting a variety of signal types such as voltage, current, and temperature.
With its 12-bit + sign resolution, wide input range, and 2500 Vrms isolation, the AI723F A2 ensures accurate and stable signal acquisition in complex automation environments. This module connects seamlessly to TU715F and TU716F terminal units, making it ideal for flexible configuration and system scalability.
Key Features
-
16 analog input channels for comprehensive signal monitoring.
-
Supports voltage (±10 V), current (0/4–20 mA), and RTD sensors such as Pt100, Pt1000, Ni1000.
-
High-speed 100 kHz sampling ensures real-time process accuracy.
-
2500 Vrms galvanic isolation enhances system safety and reliability.
-
Compact and modular design compatible with ABB Freelance DCS.
-
Perfect for process control, data acquisition, and sensor integration.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | AI723F A2 |
| Product ID | 3BDH000376R0005 |
| Product Type | Analog Input Module |
| Number of Channels | 16 analog inputs (2 configurable groups) |
| Signal Types Supported | ±10 V, 0/4–20 mA, Pt100, Pt1000, Ni1000 |
| Input Type | Differential |
| Resolution | 12-bit + sign |
| Input Impedance | 10 MΩ |
| Accuracy | ±0.1% of full scale |
| Data Acquisition Rate | 100 kHz |
| Isolation | 2500 Vrms |
| Power Supply | 24 VDC |
| Dimensions (L × W × H) | 20 × 125 × 50 mm |
| Weight | 2 kg |
| Mounting Type | Compatible with TU715F / TU716F terminal units |
| Country of Origin | Sweden |
| Condition | Brand new, original packaging |
| Applications | Process control, industrial automation, signal monitoring |
FAQ
Q1: Is the ABB AI723F A2 original and new?
A1: Yes, the ABB AI723F A2 is 100% brand new and factory-sealed from ABB.
Q2: How many analog inputs does the module provide?
A2: It supports 16 independent analog input channels divided into two groups.
Q3: What signal types can it process?
A3: It supports voltage (±10 V), current (0/4–20 mA), and RTD sensors like Pt100 and Ni1000.
Q4: Is it compatible with TU715F and TU716F terminal units?
A4: Yes, it is fully compatible with both terminal units for easy installation.
Q5: What is your delivery policy?
A5: We have ready stock, and ship via DHL/FedEx within 3 days to 2 weeks, depending on order size.
Q6: What if there is a quality issue?
A6: We offer a 30-day return policy for any verified product quality issues.
