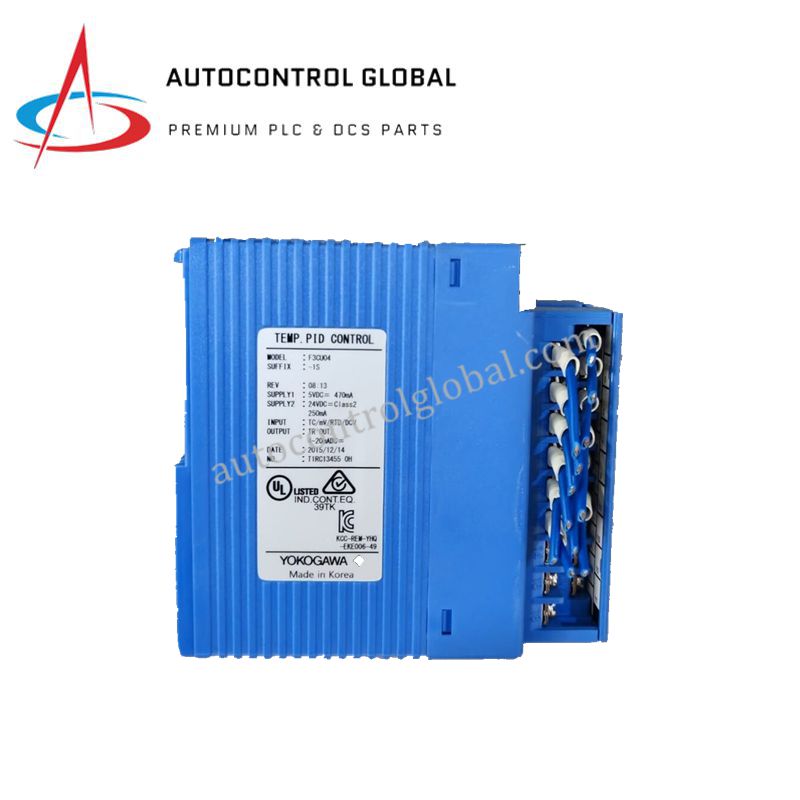

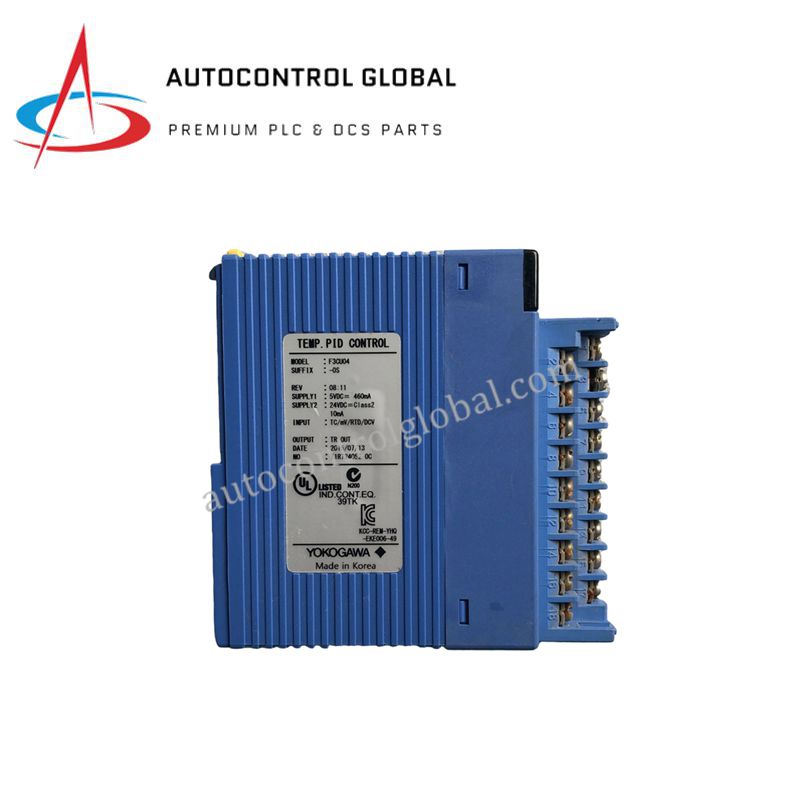

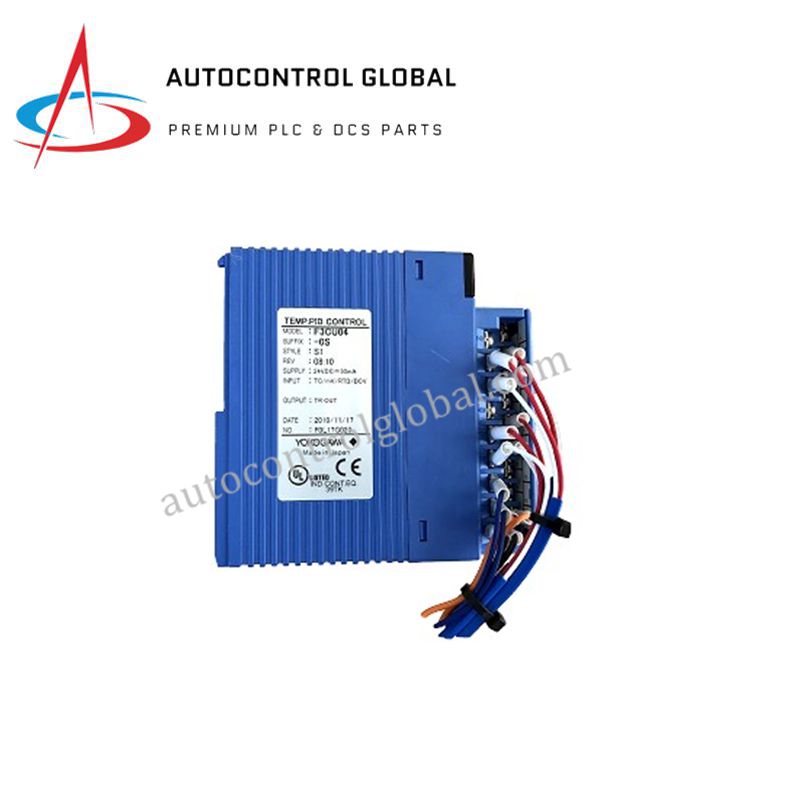

F3CU04-0S by YOKOGAWA | 4-Loop Temperature Controller for FA-M3
Manufacturer: Yokogawa
-
Part Number: KS1-07
Condition：New with Original Package
Product Type: 4-Loop Temperature Controller for FA-M3
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
YOKOGAWA F3CU04-0S | Temperature Control and PID Module
Product Overview
The YOKOGAWA F3CU04-0S is a high-performance temperature control and PID module designed for the FA-M3 PLC series. It delivers precise thermal regulation through four independent control loops, ensuring fast and stable temperature management for demanding industrial processes.
Each loop in the F3CU04-0S executes a PID algorithm with high-speed sampling, enabling rapid response and superior process stability. It supports thermocouple and RTD inputs, making it compatible with a wide range of sensors used in chemical, semiconductor, and food industries.
The module includes auto-tuning, alarm handling, and ramp/soak control functions, giving users flexible configuration options for advanced process optimization.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | F3CU04-0S |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Temperature Control and PID Module |
| System Compatibility | FA-M3 PLC Series |
| Number of Control Loops | 4 independent loops |
| Control Algorithms | PID, ON/OFF, Manual, Auto-tuning |
| Input Types | Thermocouple (K, J, T, E, etc.), RTD (Pt100, JPt100) |
| Output Types | Voltage (0–10 V), Current (4–20 mA), SSR drive |
| Sampling Period | 100 ms or faster |
| Alarm Functions | Deviation, PV high/low, sensor break |
| Communication | Internal FA-M3 bus |
| Mounting Type | DIN rail or base-mounted in FA-M3 rack |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) | 28.9 mm × 100 mm × 83.2 mm |
| Weight | 0.12 kg |
| Country of Origin | Japan |
| Condition | New and in stock |
| Shipping Port | Xiamen |
| Payment Options | T/T, Western Union |
FAQ
Q1: Which PLC system is compatible with the F3CU04-0S module?
The F3CU04-0S is fully compatible with the Yokogawa FA-M3 PLC series, commonly used in automation and process control.
Q2: How many temperature control loops are available in this module?
It supports four independent PID loops, allowing simultaneous control of multiple zones or devices.
Q3: What types of sensors can the F3CU04-0S accept?
This module supports both thermocouple (K, J, T, E) and RTD (Pt100, JPt100) input types for flexible sensor selection.
Q4: What is the output range for control signals?
The module provides 0–10V voltage output, 4–20mA current output, and SSR drive outputs for versatile applications.
Q5: What are the warranty and shipping terms?
All YOKOGAWA F3CU04-0S units are brand new and original. We have stock available, and ship via DHL or FedEx within 3–14 days depending on order size. Each product includes a 12-month warranty and 30-day return policy for quality concerns.
