Honeywell 51120673-101 | Mixed Signal Universal Channel Module
Manufacturer: Honeywell
-
Part Number: 51120673-101
Condition：New with Original Package
Product Type: Mixed Signal Universal Channel Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

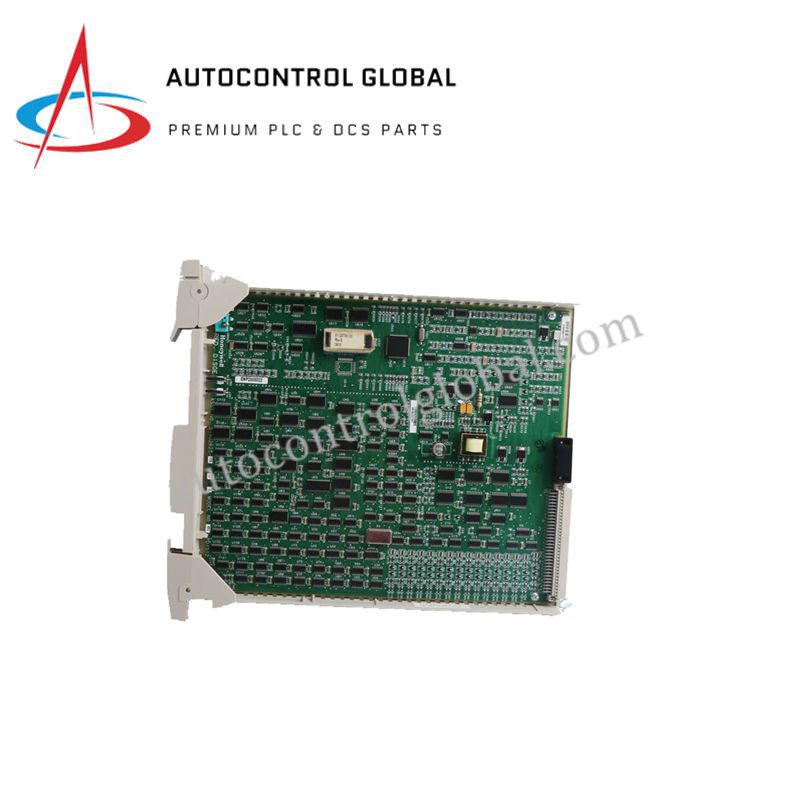

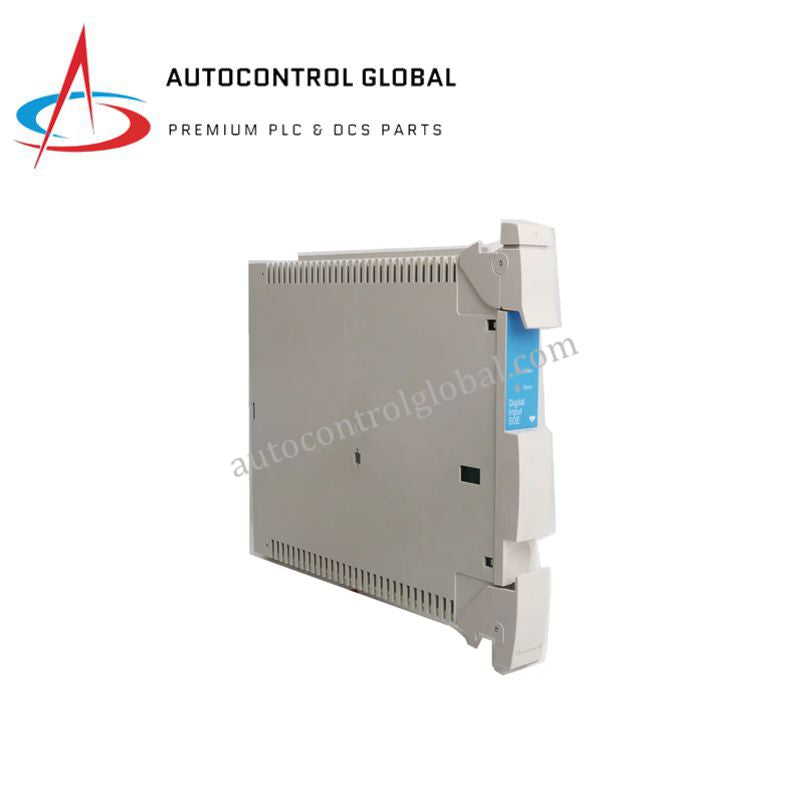

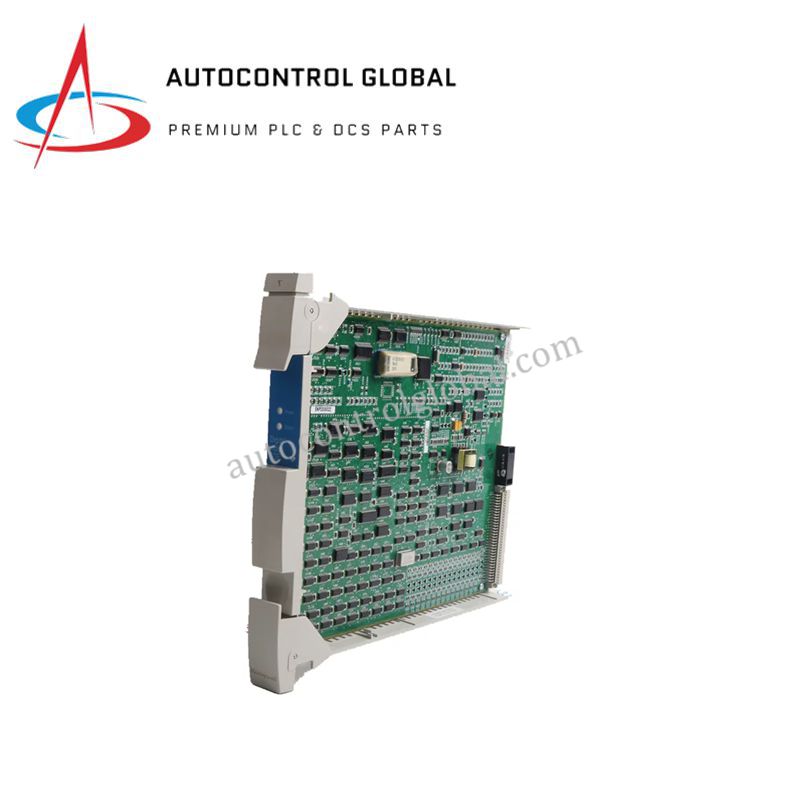

Honeywell 51120673-101 Universal Channel System Module
The Honeywell 51120673-101 is a high-performance Universal Channel System Module that provides flexible I/O configuration for Honeywell DCS platforms. Each of the 16 channels can be independently configured as analog input, analog output, digital input, or digital output, reducing the need for dedicated I/O cards and simplifying wiring.
This module ensures precise signal acquisition, high-resolution analog-to-digital conversion, and robust electrical isolation between channels, enhancing noise immunity. Its compact design fits neatly into Honeywell I/O chassis, supporting plug-and-play installation and scalable deployment.
Ideal for industries such as power generation, oil & gas, chemical processing, and pharmaceuticals, the Honeywell 51120673-101 integrates seamlessly with Experion PKS and TDC 3000 systems, providing reliable data acquisition, signal conditioning, and advanced diagnostics.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51120673-101 |
| Type | Universal Channel System Module |
| Channel Configuration | Software-configurable per channel: AI, AO, DI, DO |
| Number of Channels | 16 universal I/O channels |
| Signal Types Supported | Analog: 4–20 mA, 0–10 V Digital: 24 VDC discrete signals |
| Communication Interface | Integrated with Honeywell I/O Link or Control Network |
| Installation | Plug-in module for Honeywell I/O chassis |
| Diagnostics | Built-in fault detection and signal integrity monitoring |
| Shielding | EMI/RFI protection |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, RoHS compliant |
| Manufacturer | Honeywell |
| Origin | USA |
| Weight | 0.68 kg |
| Package | Original Honeywell package |
FAQ
Q1: Is the Honeywell 51120673-101 brand new?
A1: Yes, it is brand new, original, and comes with a 12-month manufacturer warranty.
Q2: How many channels can be configured on this module?
A2: The 51120673-101 supports 16 universal I/O channels, configurable as AI, AO, DI, or DO.
Q3: What analog signals are supported?
A3: It supports 4–20 mA current loops and 0–10 V voltage signals.
Q4: Can the module be installed easily?
A4: Yes, it supports plug-and-play integration within Honeywell I/O chassis.
Q5: What operating conditions are supported?
A5: The module works reliably between –40°C to +70°C and 5% to 95% non-condensing humidity.
Q6: How is the module protected against interference?
A6: It includes EMI/RFI shielding for signal integrity in industrial environments.
