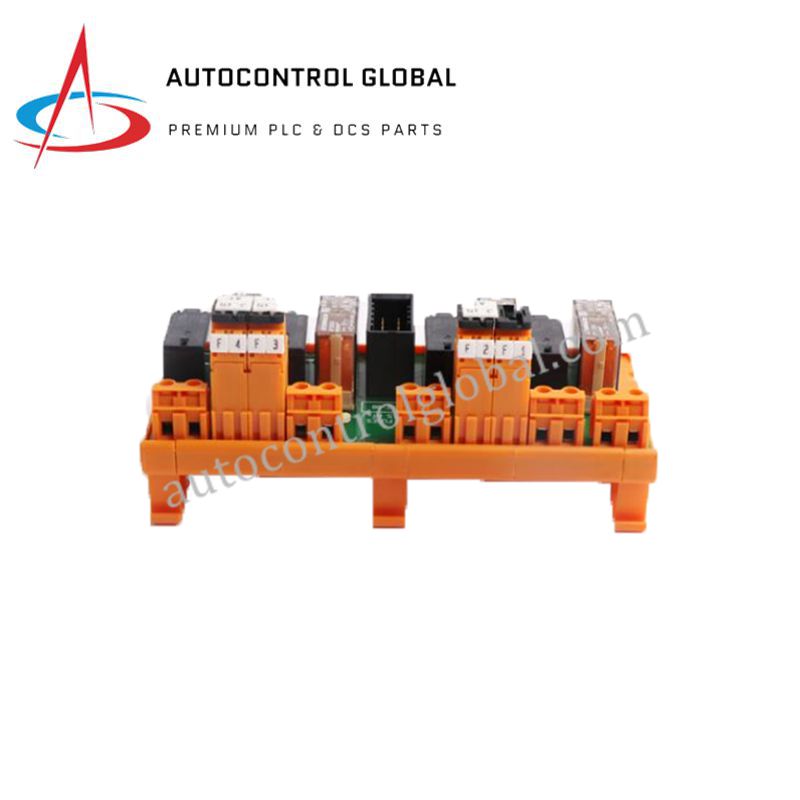

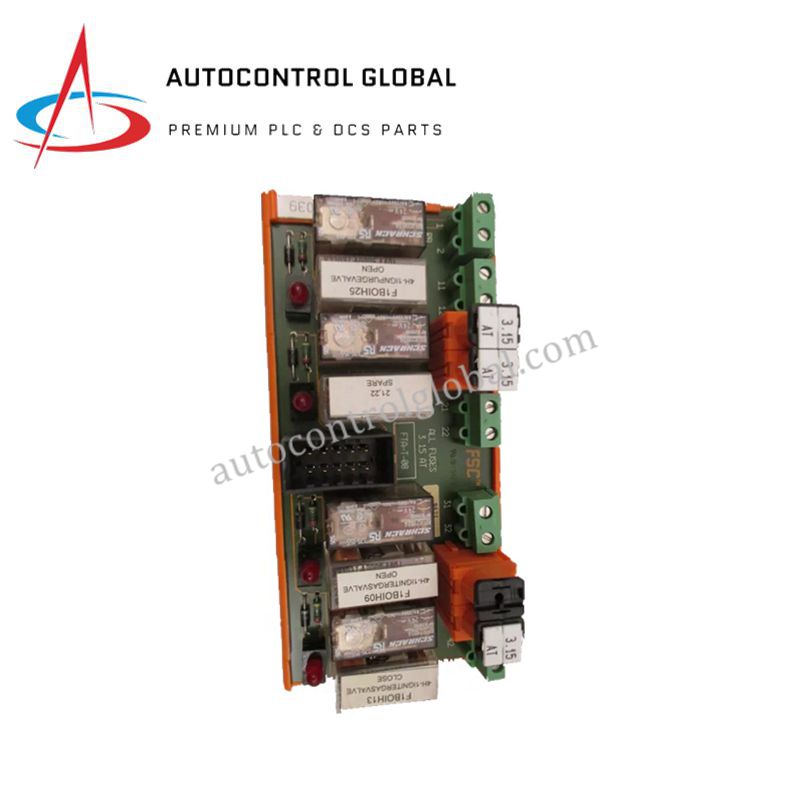

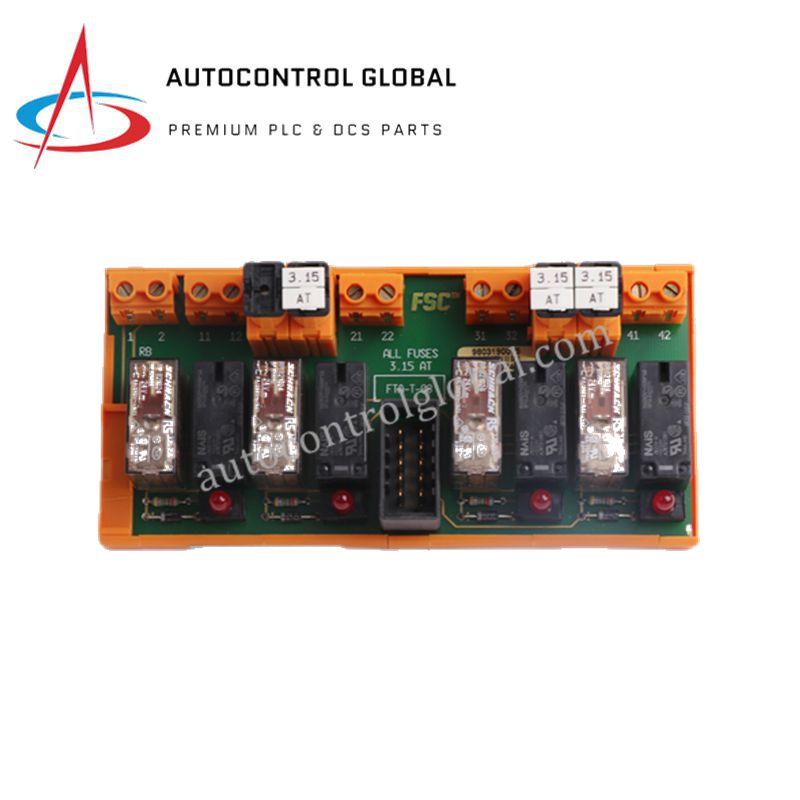

Honeywell FTA‑T‑08 Fail-Safe Digital Output Module USA
Manufacturer: ABB
-
Part Number: TARJETA FTA-T-08
Condition：New with Original Package
Product Type: Fail-Safe Digital Output Module USA
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell FTA‑T‑08 Fail‑Safe Digital Output Module
Product Overview
The Honeywell FTA‑T‑08 is a fail‑safe digital output module designed for safety-critical automation and process systems. Each channel employs dual relay contacts connected in series to ensure reliable fail‑safe operation. Moreover, its compact design with LED status indicators and fused outputs provides secure diagnostics and protection. This module is ideal for Emergency Shutdown (ESD) systems, alarm systems, and high-risk industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTA‑T‑08 |
| Type | Fail‑Safe Digital Output Module (Relay Contact) |
| System Compatibility | Honeywell safety and process automation systems |
| Number of Channels | 4 independent digital outputs |
| Output Type | Relay contact, fail‑safe, two relays in series per channel |
| Nominal Input Voltage | 24 VDC |
| Output Voltage Range | 24 VDC – 230 VAC |
| Output Current Capacity | 2 A per channel |
| Protection | Fused NO field contact (3.15 AT per channel) |
| Indicators | LED per channel |
| Isolation | Galvanic isolation between channels and system |
| Mounting | DIN EN rail snap‑in facility |
| Wiring Terminals | Screw terminals for secure field wiring |
| Dimensions (W × H × D) | 14.6 × 7 × 6.8 cm |
| Weight | 0.26–0.66 kg |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 0–95% RH, non‑condensing |
| Certifications | CE, TÜV, UL |
| Country of Origin | USA |
FAQ
Q1: How many output channels does the FTA‑T‑08 support?
It supports 4 independent fail‑safe relay output channels.
Q2: What is the maximum output current per channel?
Each channel can handle up to 2 A.
Q3: What is the operating voltage range for outputs?
Outputs operate between 24 VDC and 230 VAC.
Q4: How does the fail‑safe design work?
Two relays in series per channel ensure outputs default to a safe state during faults.
Q5: Can this module be mounted on DIN rails?
Yes, it features DIN EN rail snap‑in mounting for easy installation.
