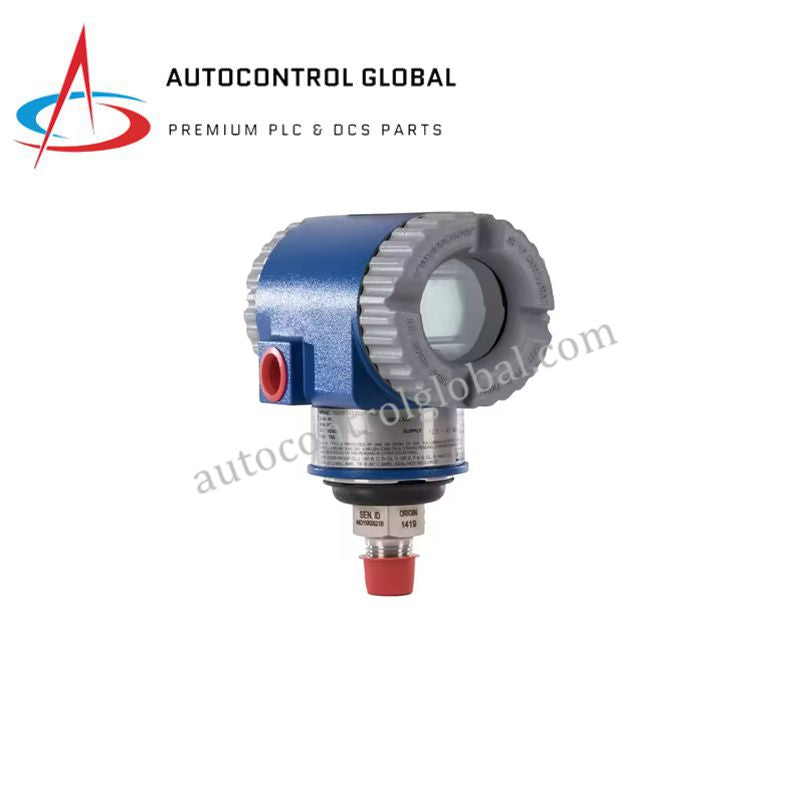

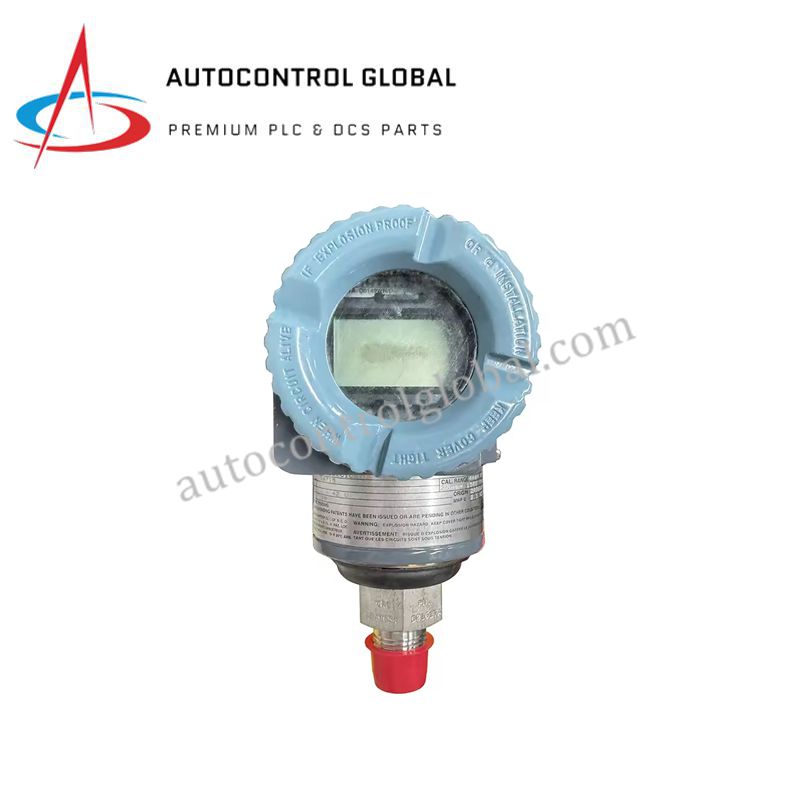

IMT25-PDADB10N-AB Magnetic Flow Transmitter for I/A Series | Foxboro

Product Description

Product Overview

The Foxboro IMT25-PDADB10N-AB is an intelligent magnetic flow transmitter engineered for demanding industrial flow measurement environments.
It is designed for seamless operation with Foxboro I/A Series® magnetic flowtubes across water, chemical, and energy process systems.
Moreover, this transmitter converts weak electrode signals into stable, high-resolution flow data with excellent long-term reliability.
The robust dual-compartment housing protects electronics while simplifying wiring and on-site maintenance activities.
Therefore, the IMT25 platform remains a trusted choice for continuous conductive liquid flow monitoring worldwide.

Technical Specifications

Product Type: Intelligent Magnetic Flow Transmitter
Manufacturer: Foxboro (Invensys / Schneider Electric)
Series: IMT25 I/A Series® Flow Measurement

Output Signals:

• 4–20 mA DC

• Pulse / Frequency Output

• Digital Communication (HART, FoxCom)

Measurement Performance:

• Accuracy: ±0.25% of reading (typical)

• Repeatability: ±0.1%

Power Supply Options:

• 85–265 V AC, 50/60 Hz

• 24 V DC (configuration dependent)

Environmental Ratings:

• Enclosure: Dual compartment, NEMA 4X / IP65

• Electronics Temperature: –20 °C to +60 °C

Process Conditions:

• Process Temperature: –40 °C to +180 °C, liner dependent

• Electrode Materials: Stainless steel, Hastelloy, platinum, tantalum

Diagnostics and Compliance:

• Self-diagnostics and remote configuration supported

• Certifications: FM, CSA, CE

• Compliance: RoHS

Physical Data:

• Dimensions: 260 × 200 × 150 mm

• Weight: 4–5 kg

FAQ

Q1: What type of fluids can the IMT25-PDADB10N-AB measure?
The transmitter measures electrically conductive liquids, including water, wastewater, slurries, and most chemical solutions.

Q2: Is the IMT25 compatible with older Foxboro magnetic flowtubes?
Yes, it supports multiple Foxboro flowtube series, including legacy and current I/A Series® models.

Q3: Can configuration be performed without removing the transmitter from service?
Moreover, parameters can be adjusted remotely using HART or FoxCom communication tools during operation.

Q4: Does the transmitter support both AC and DC power supplies?
Yes, it supports wide-range AC input or 24 V DC, depending on the ordered configuration.

Q5: Is this model suitable for harsh industrial environments?
Therefore, the dual-compartment housing and NEMA 4X rating ensure reliable performance in demanding conditions.
