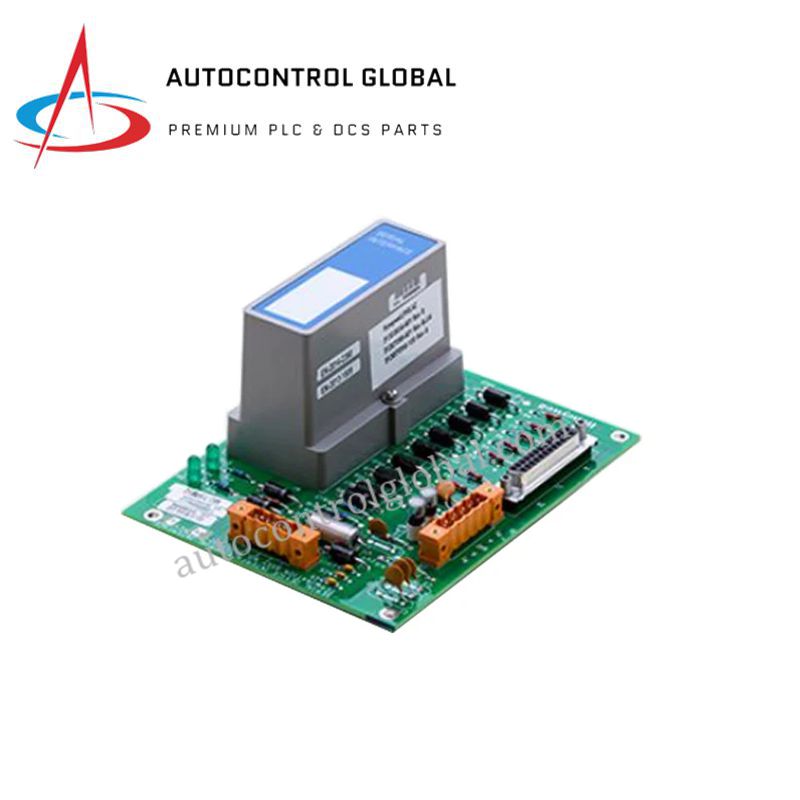

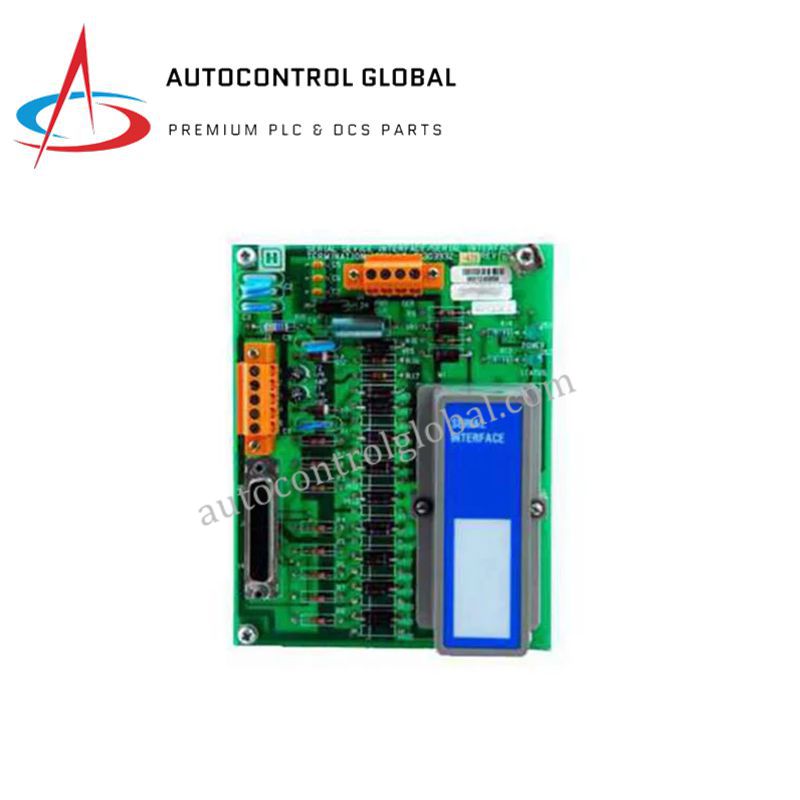

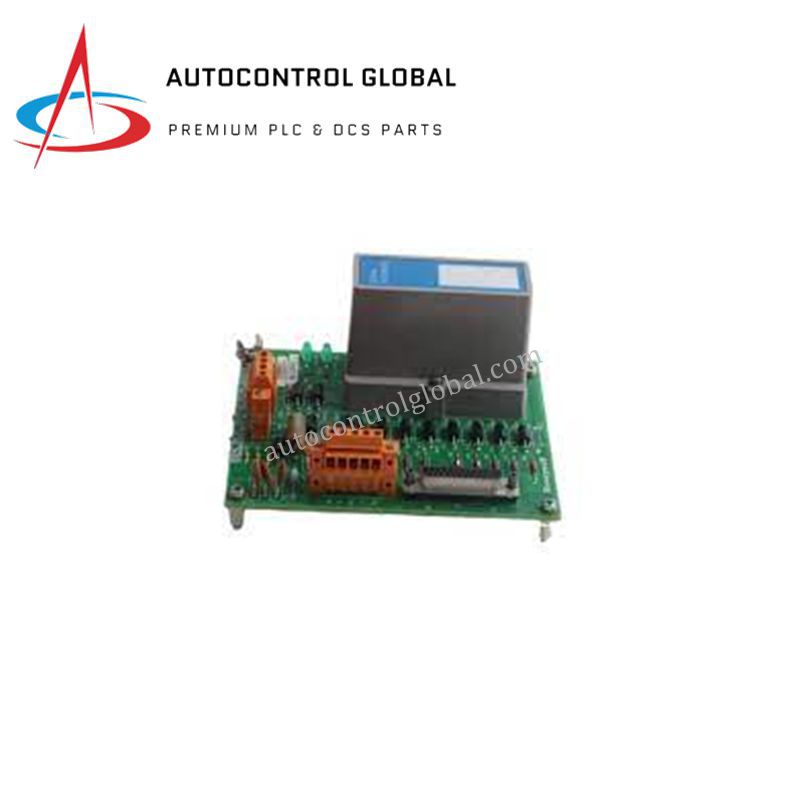

MU-TSIM12 Honeywell | Modbus RTU Serial Interface Module
Manufacturer: Honeywell
-
Part Number: MU-TSIM12 51303932-426
Condition：New with Original Package
Product Type: Modbus RTU Serial Interface Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell MU-TSIM12 | Serial Device Interface Module
Product Description
The Honeywell MU-TSIM12 is a high-performance serial communication module designed for distributed control systems (DCS), including Experion PKS. It enables seamless integration of serial field devices, such as sensors, controllers, and instrumentation, using the Modbus RTU protocol.
Supporting both RS-232 for single-device and RS-422/RS-485 for multi-device configurations, the MU-TSIM12 is highly adaptable for diverse industrial environments. It accommodates up to 15 slave devices on one master channel, simplifying communication architectures and reducing deployment costs. This module is ideal for long-distance, reliable data communication in process automation and control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | MU-TSIM12 |
| Part Number | 51303932-426 |
| Product Type | Serial Device Interface Module |
| Communication Protocol | Modbus RTU (Slave mode) |
| Interface Types | RS-232 (EIA-232), RS-422/RS-485 (EIA-422/485) |
| Channel Capacity | 1 master channel, up to 15 slave devices (RS-422/485 mode) |
| Baud Rate | 300 to 38.4 Kbps |
| Max Cable Distance | Up to 1200 meters (3937 feet) |
| Power Consumption | 200 mA at 5 VDC |
| Dimensions (H × W × D) | 85 × 121 × 40 mm |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Weight | 0.25 kg (0.55 lbs) |
| Mounting Type | Panel or rack mount |
| Certifications | CE, UL, CSA |
| Condition | Brand new |
| Country of Origin | USA |
FAQ
Q1: Which protocols does MU-TSIM12 support?
A1: It supports Modbus RTU in slave mode for RS-232 and RS-422/485 connections.
Q2: How many devices can connect via RS-422/485?
A2: Up to 15 slave devices can connect on a single master channel.
Q3: What is the maximum cable length supported?
A3: Communication is reliable up to 1200 meters (3937 feet).
Q4: Can the module be rack-mounted?
A4: Yes, it supports panel or rack mounting for flexible installation.
Q5: Is this module certified for industrial use?
A5: Yes, it carries CE, UL, and CSA certifications.
