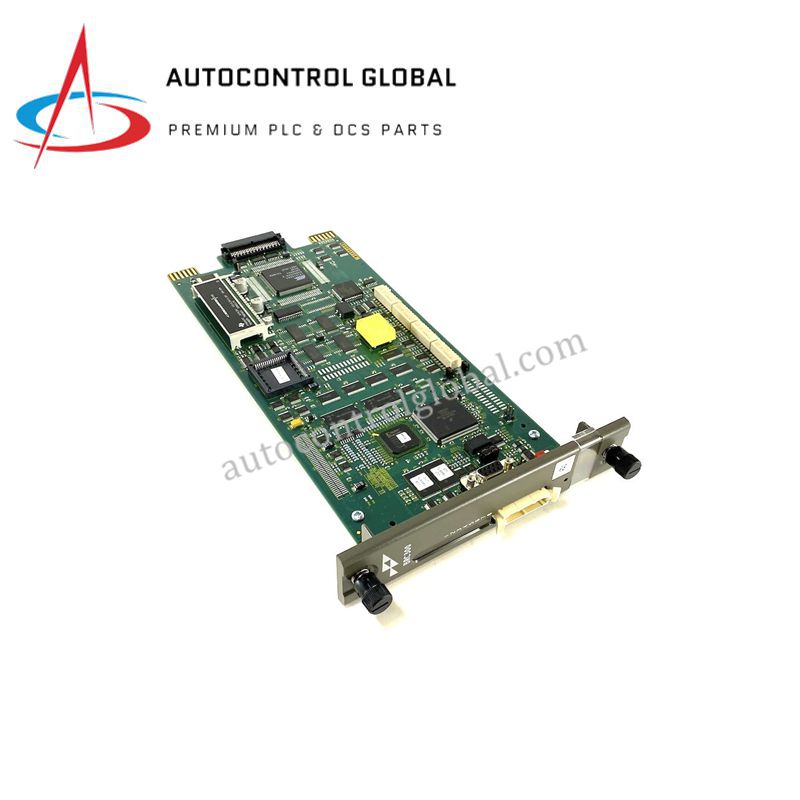

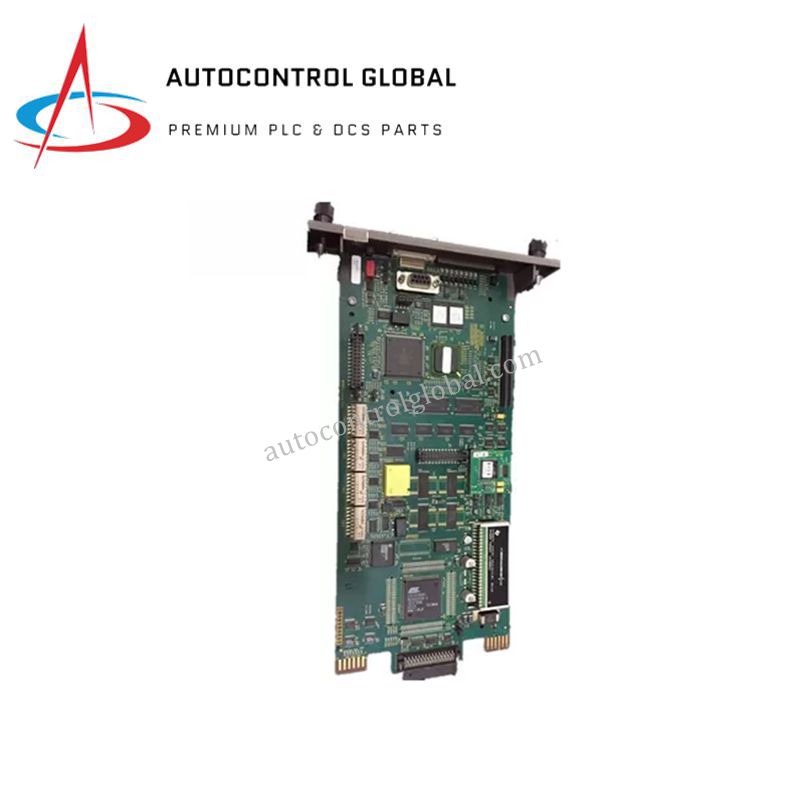

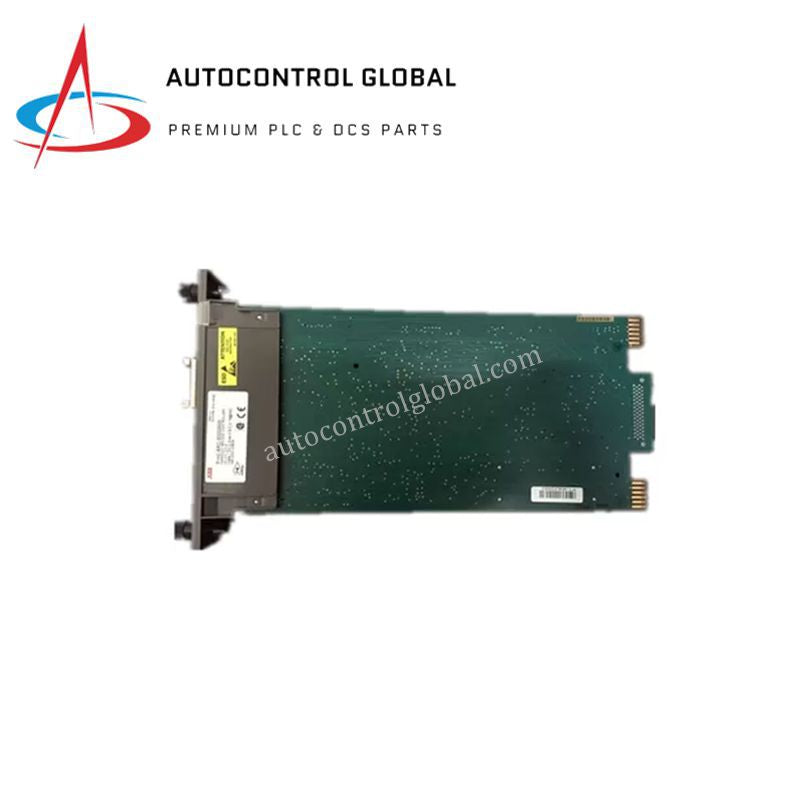

ABB P-HC-BRC-30000000 Harmony Bridge Controller Module – Product Description

Description / Overview

The ABB P‑HC‑BRC‑30000000, also known as the Bailey Harmony Bridge Controller, is a high-performance central CPU module for ABB’s Symphony Plus Harmony Rack (HR Series). It provides robust processing power for distributed automation systems while supporting both legacy INFI 90 platforms and modern Harmony systems. Moreover, its modular rack design allows easy installation, maintenance, and expansion, making it suitable for demanding industrial environments such as power generation, chemical plants, steel mills, and manufacturing automation.

Technical Data / Specifications

General Information

• Model: P‑HC‑BRC‑30000000

• Part Number: PHCBRC30000000

• Type: Bailey Harmony Bridge Controller

• Weight: 0.27 kg (0.60 lbs)

• Mounting: Rack-mounted (HR Series)

• Dimensions (W × H × D): 125 × 104 × 80 mm

• Country of Origin: Switzerland

• Tariff Code: 8537109160

System Compatibility

• ABB Symphony Plus Harmony Rack

• ABB INFI 90 legacy systems

• Function: Central CPU for process control and I/O coordination

Application Areas

• Process automation and industrial control

• Power generation and energy systems

• Chemical and petrochemical plants

• Steel production and heavy manufacturing

• Factory and manufacturing automation systems

FAQ

Q1: What is the main function of the P-HC-BRC-30000000 module?
It serves as the central CPU/controller for ABB Harmony Rack systems, coordinating all I/O modules.

Q2: Can it integrate legacy INFI 90 systems?
Yes, it provides seamless integration between INFI 90 and Symphony Plus Harmony platforms.

Q3: What is the module’s weight and size?
The module weighs approximately 0.27 kg and measures 125 × 104 × 80 mm.

Q4: Where is this module typically used?
It is widely used in power plants, chemical plants, steel mills, and manufacturing automation.

Q5: How is it mounted?
It installs directly into the HR Series rack for modular and secure integration.
