PFBK164 | ABB RTD Signal Processor for DCS & PLC Systems
Manufacturer: ABB
-
Part Number: 3BSE000469R1 PFBK164
Condition：New with Original Package
Product Type: RTD Signal Processor for DCS & PLC Systems
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

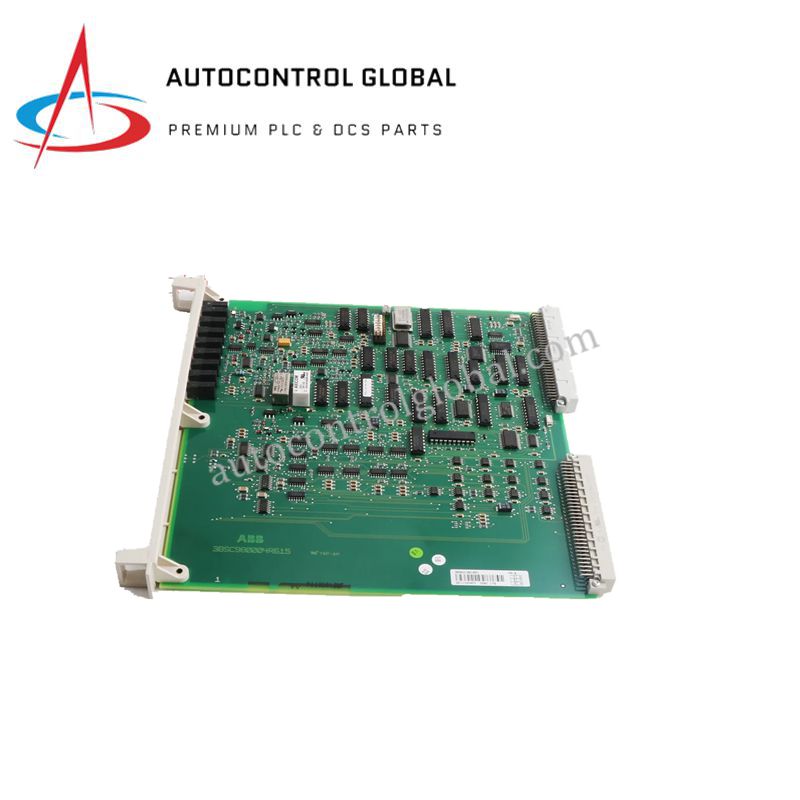

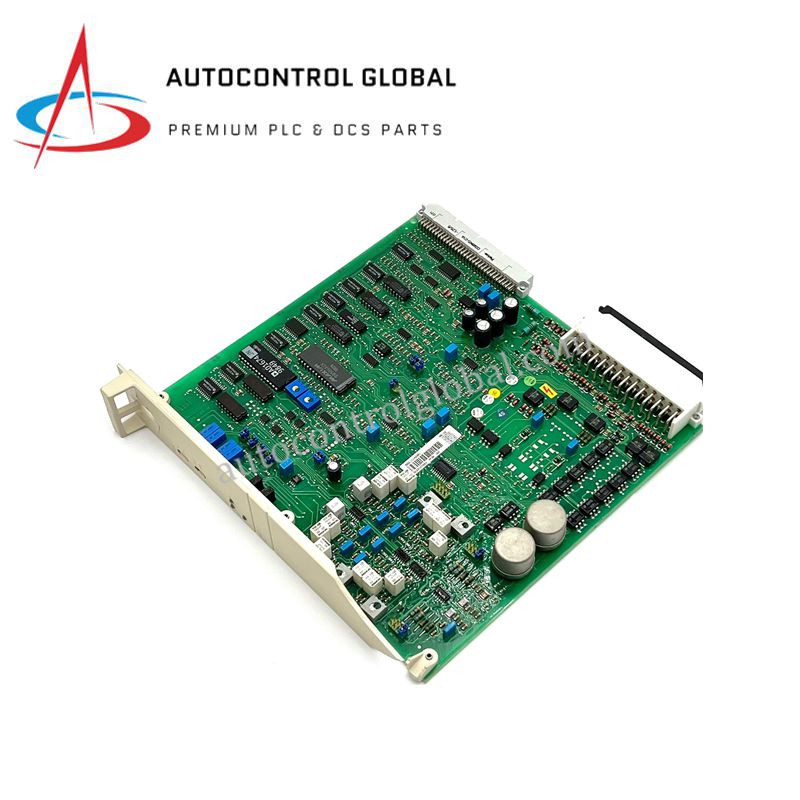

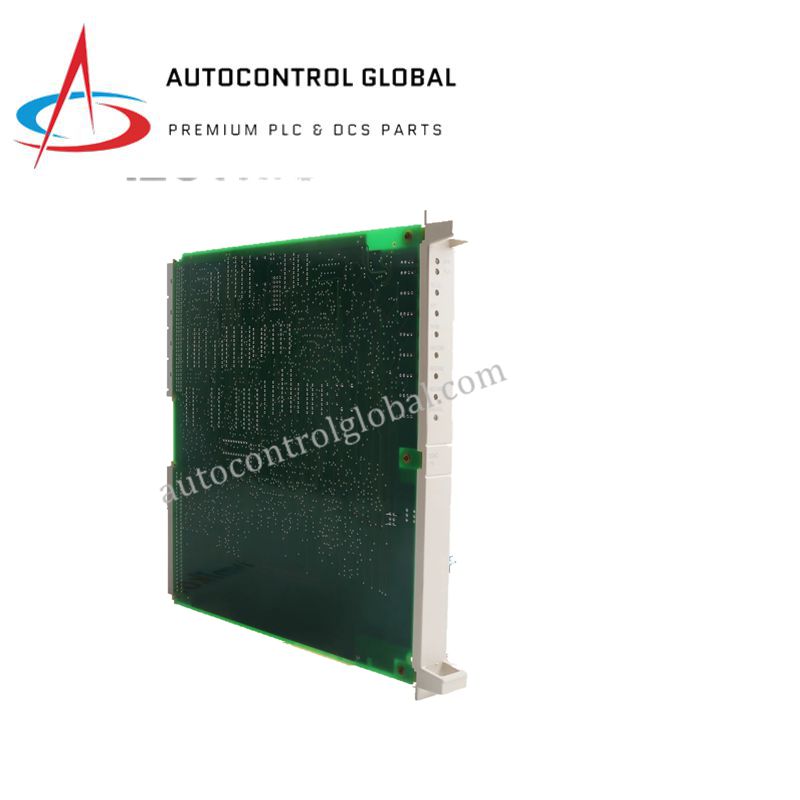

ABB PFBK164 RTD Signal Processing Board (3BSE000469R1)
Overview
The ABB PFBK164 is an RTD signal processing module designed for industrial automation in DCS and PLC systems.
It acquires and conditions temperature signals from RTDs, such as Pt100 sensors, providing linearized and isolated outputs compatible with standard analog inputs.
The module supports multi-channel synchronous acquisition and integrates easily with PROFIBUS or EtherNet/IP communication protocols.
Its compact and robust design ensures reliable operation in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | PFBK164 |
| Part Number | 3BSE000469R1 |
| Product Type | RTD Signal Conditioning Module |
| Input Type | RTD (e.g., Pt100) |
| Signal Output | 4–20 mA current loop or 0–10 V voltage |
| Operating Voltage | 24 V DC (some configurations may support 220 V AC) |
| Current Range | 100–400 A (industrial interface specific) |
| Communication Protocols | PROFIBUS, EtherNet/IP |
| Storage Interface | 2 memory card slots (backup/firmware) |
| Protection Rating | IP20 (requires enclosure in harsh environments) |
| Dimensions (L × W × H) | 120 mm × 80 mm × 40 mm |
| Weight | 0.5 kg |
| Country of Origin | Sweden |
| Application Areas | Temperature signal processing, industrial automation, process control |
FAQs
Q1: Is the ABB PFBK164 signal board new and original?
✅ Yes, the PFBK164 is brand new and original ABB product.
Q2: What type of input signals does it support?
✅ It supports RTD inputs, including Pt100 sensors, for accurate temperature measurement.
Q3: What are the output options?
✅ Provides 4–20 mA current loop or 0–10 V analog voltage outputs.
Q4: Which communication protocols are compatible?
✅ Works with PROFIBUS and EtherNet/IP for seamless system integration.
Q5: Is it suitable for harsh industrial environments?
✅ Yes, it has a robust, compact design and IP20 protection.
