PP846A ABB | Industrial HMI Touchscreen Operator Panel
Manufacturer: ABB
-
Part Number: PP846A
Condition：New with Original Package
Product Type: Industrial HMI Touchscreen Operator Panel
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

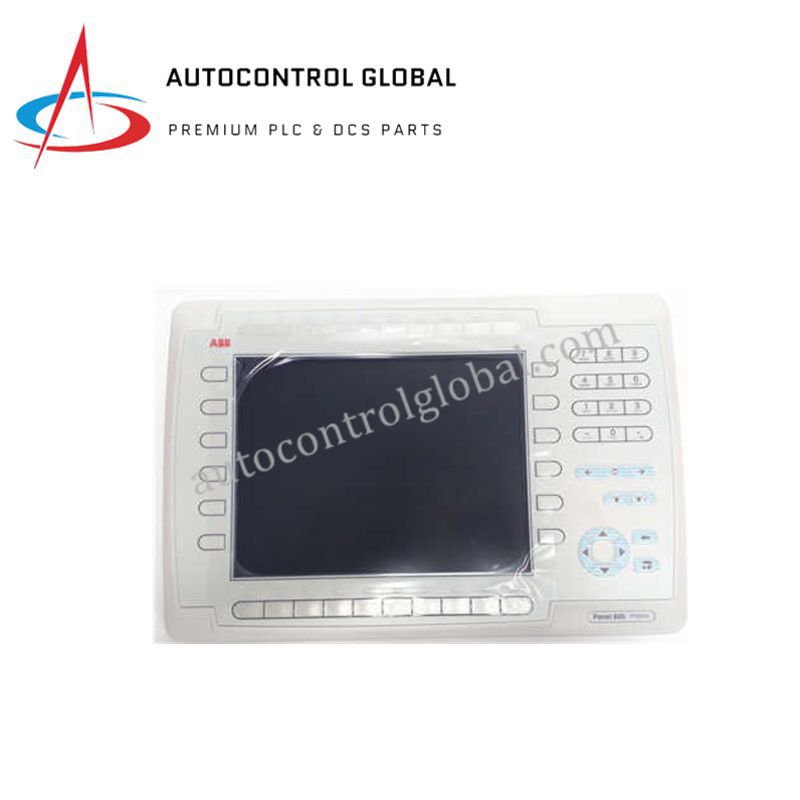

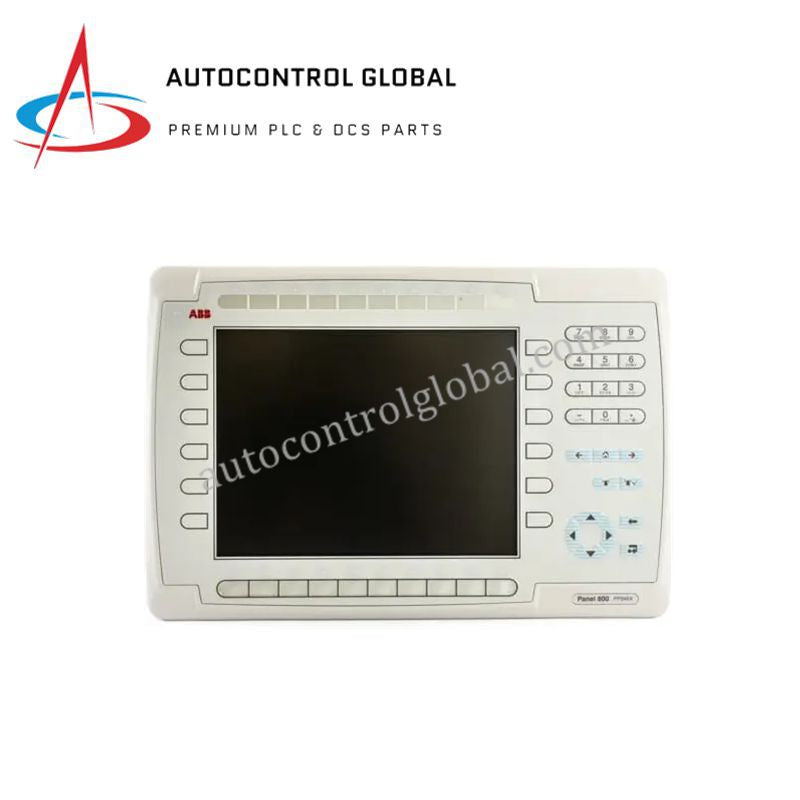

ABB PP846A HMI Operator Panel
Overview
The ABB PP846A is a high-performance HMI operator panel from the Panel 800 series, designed for ABB 800xA control systems.
It features a 10.4-inch TFT touchscreen with 800×600 resolution and 64K colors, providing intuitive visualization and control of industrial processes.
The panel supports multiple communication protocols including Modbus and EtherNet/IP, ensuring flexible system integration.
With a robust IP66-rated front, the PP846A is engineered for embedded panel mounting in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | PP846A |
| Part Number | 3BSE042238R2 |
| Product Type | HMI Operator Panel |
| Display | 10.4-inch TFT-LCD, 800×600 resolution, 64K colors, CCFL backlight |
| Touchscreen | Resistive touchscreen |
| Power Supply | 24 VDC (18–32 VDC, typical 1.0 A) |
| Communication Ports | 2× Ethernet (RJ45), RS-232C, RS-422/485, 2× USB |
| Memory | 256 MB Flash, 128 MB RAM |
| Keyboard | Membrane keys with metal dome, Autotex F157 overlay, 1 million operations |
| Mounting Type | Embedded panel mount |
| Protection Rating | IP66 front, IP20 rear |
| Operating Temperature | –20°C to +60°C |
| Dimensions (W × H × D) | 382 mm × 252 mm × 58 mm (installation depth: 158 mm) |
| Weight | 3.24 kg |
| Application Areas | Power generation, petrochemical, water treatment, manufacturing |
FAQs
Q1: Is the ABB PP846A new and original?
✅ Yes, the PP846A is brand new, factory-sealed, and ready for industrial use.
Q2: What display does it use?
✅ It has a 10.4-inch TFT-LCD with 800×600 resolution, 64K colors, and a resistive touchscreen.
Q3: Which communication protocols are supported?
✅ Supports Modbus, EtherNet/IP, RS-232C, RS-422/485, and USB for flexible integration.
Q4: What protection rating does it have?
✅ The front panel is IP66-rated, suitable for harsh industrial environments, while the rear is IP20.
Q5: How is it mounted?
✅ Designed for embedded panel mounting following ABB installation guidelines.
