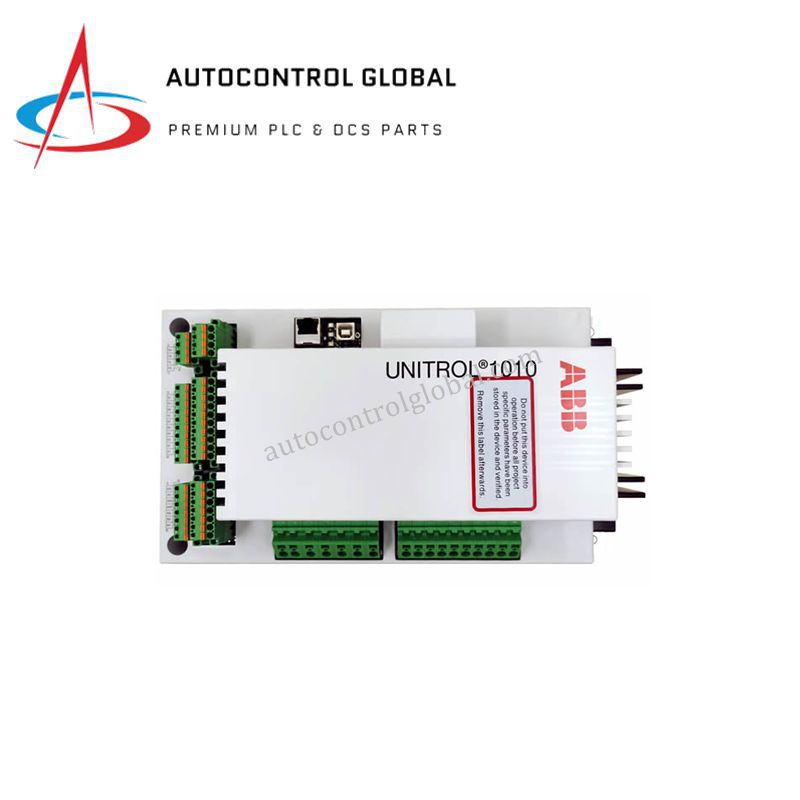

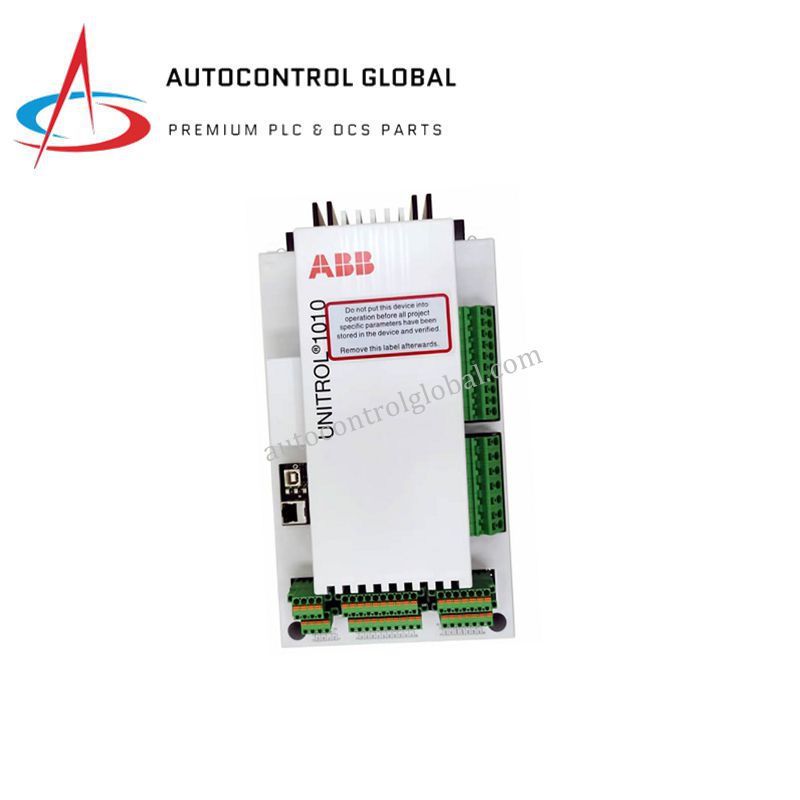

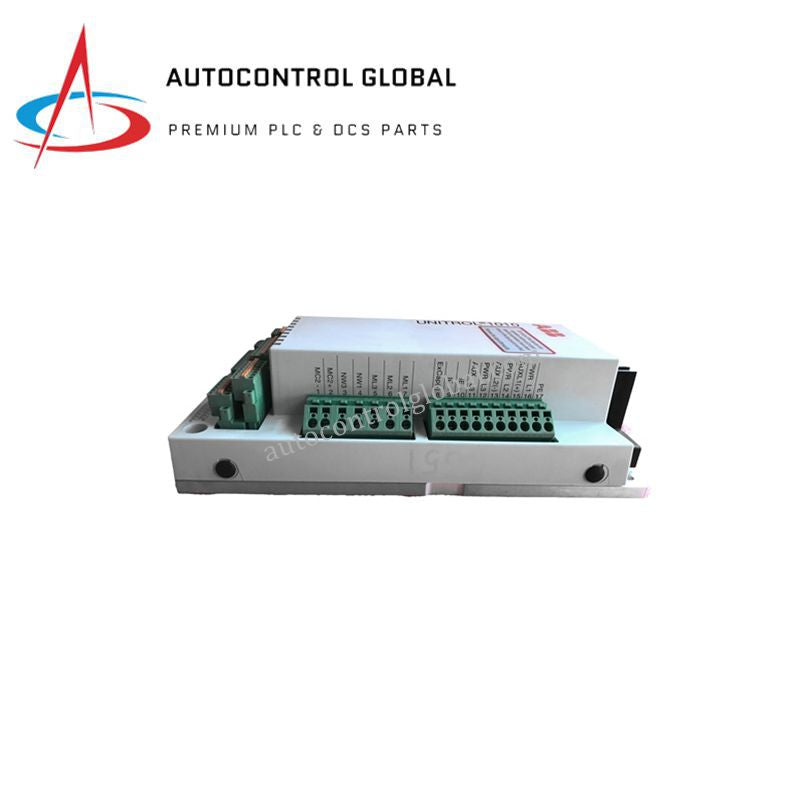

UNITROL 1010 ABB | Brushless Excitation Module for Industry
Manufacturer: ABB
-
Part Number: UNITROL1010 3BHE035301R1002
Condition：New with Original Package
Product Type: Brushless Excitation Module for Industry
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The ABB UNITROL 1010 (Part No. 3BHE035301R1002) is a brushless excitation unit designed for small to medium-sized synchronous generators and industrial machines. Moreover, it belongs to ABB’s UNITROL 1000 family, providing reliable voltage regulation and robust control for generator excitation currents up to 10 A DC.
This module supports dual-channel operation, enabling parallel generator control and advanced load sharing. In addition, it features rotating diode monitoring, automatic synchronizing functions, and integrated communication interfaces (Ethernet, USB, RS‑232) for efficient configuration, monitoring, and diagnostics.
The UNITROL 1010 also offers event and data recording for thorough system analysis. Its compact design matches the UNITROL 1020, simplifying integration into existing systems. Furthermore, compliance with DNV and UL standards ensures its suitability for both marine and industrial environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | UNITROL 1010 |
| Part Number | 3BHE035301R1002 |
| Series | UNITROL 1000 |
| Type | Automatic Voltage Regulator (AVR) |
| Excitation Current | Up to 10 A DC (continuous) |
| Technology | IGBT-based, microprocessor controlled |
| Functions | Voltage regulation, load sharing, diode monitoring, auto synchronizing |
| Communication Interfaces | Ethernet, USB, RS‑232 |
| Data Handling | Event and data recording |
| Standards Compliance | DNV, UL |
| Operating Temperature | –40°C to +70°C |
| Protection | Galvanic isolation, fault detection, rugged design |
| Dimensions | Compact, same as UNITROL 1020 |
| Application Areas | Small/medium synchronous generators, industrial machines, marine power systems |
FAQ
Q1: Can the UNITROL 1010 operate in parallel with other generators?
A1: Yes, it supports dual-channel operation for parallel operation and load sharing.
Q2: What types of communication interfaces are available?
A2: Ethernet, USB, and RS‑232 interfaces are integrated for monitoring and configuration.
Q3: What is the maximum excitation current for this module?
A3: It can handle excitation currents up to 10 A DC continuously.
Q4: Is it suitable for marine applications?
A4: Yes, it complies with DNV standards for marine and industrial environments.
Q5: Can it replace UNITROL 1020 modules?
A5: Yes, it shares the same interface and dimensions, allowing easy replacement.
