ABB CI858K01 3BSE018135R1 AC 800M Drive Communication

Product Overview

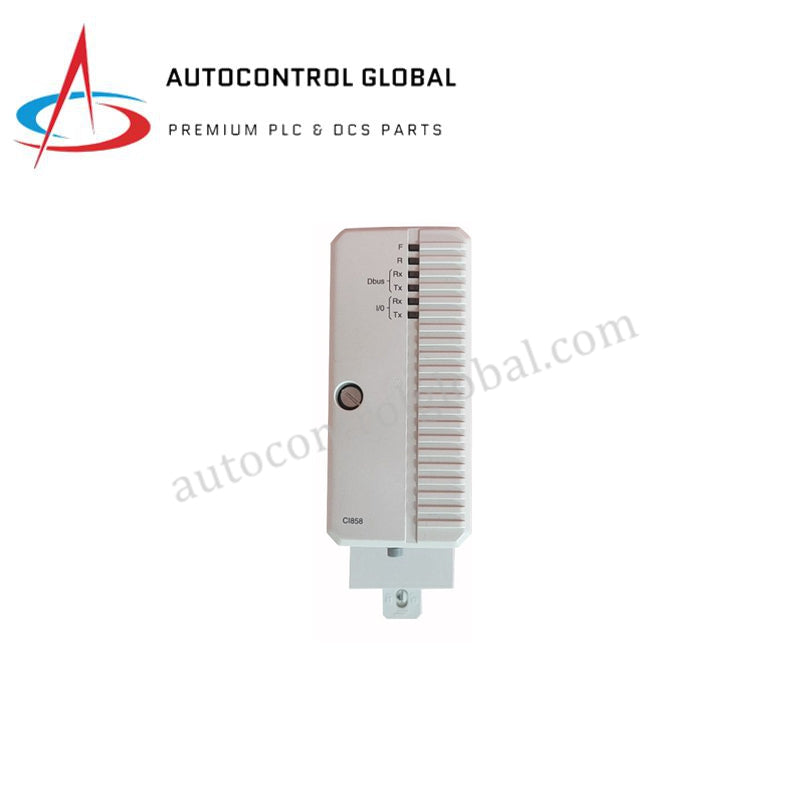

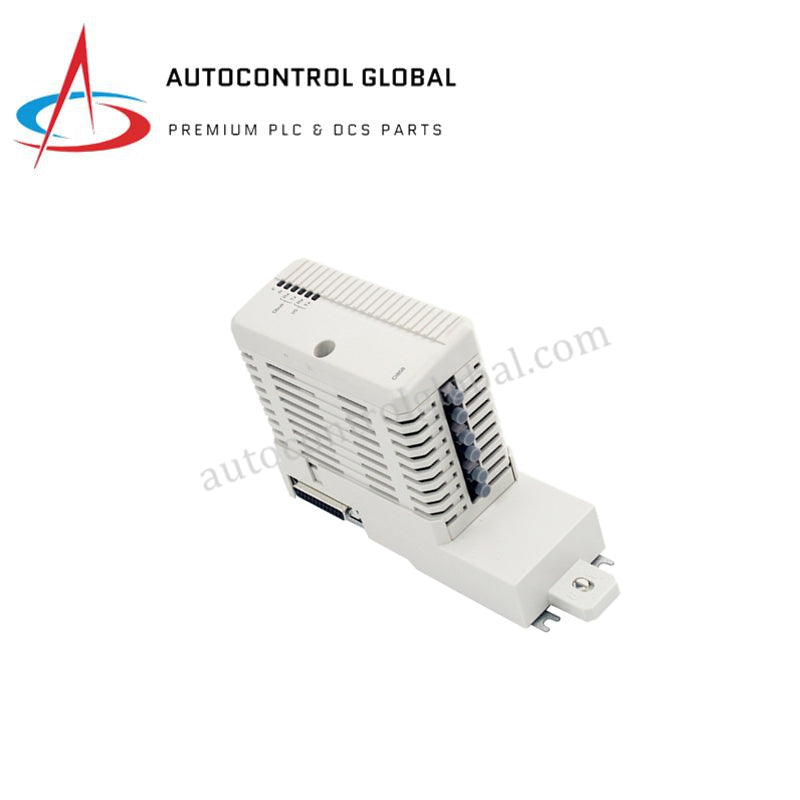

The ABB CI858K01 (Product ID: 3BSE018135R1) functions as a high-speed communication bridge between ABB AC 800M controllers and various drive systems, including the ACS 600 and ACS 800 series. This interface module utilizes the proprietary DriveBus protocol to deliver deterministic, high-performance control over motor drives in mission-critical applications. The CI858K01 kit includes the CI858 communication module and the essential TP858 baseplate, ensuring a complete mechanical and electrical installation. We provide this unit as a 100% brand new, original ABB component, specifically designed to withstand the electrical rigors of oil & gas, chemical processing, and power generation environments.

Technical Specifications

Engineering Advantages

The CI858K01 3BSE018135R1 optimizes drive-to-controller synchronization by addressing high-speed data requirements:

• Deterministic Drive Control: The 40,000 kbit/s communication speed ensures near-instantaneous command execution. This ultra-fast throughput proves vital for applications requiring precise torque and speed regulation across multiple drive lineups.

• Streamlined AC 800M Integration: The module plugs directly into the AC 800M controller architecture. This native integration eliminates the need for complex third-party protocol converters, reducing signal latency and potential points of failure.

• Modular Baseplate Design: The included TP858 baseplate facilitates rapid DIN rail mounting. It separates the wiring from the active electronic module, allowing engineers to replace the CI858 unit without disturbing the field communication cables.

• High-Frequency Processing: The 50 kHz output frequency enables the system to handle rapid pulse-train communications, maintaining stable link integrity even in environments with heavy electromagnetic interference from large industrial motors.

• Space-Efficient Architecture: The slim 59 mm width allows for high-density installation in control cabinets. This compact form factor helps engineers maximize cabinet space while maintaining sufficient airflow for thermal management.

FAQs

• Does the CI858K01 include the mounting baseplate?

  Yes. The CI858K01 is a complete kit that includes both the CI858 communication interface module and the TP858 baseplate required for proper mounting and connection.

• Can I use this module with non-ABB drive systems?

  No. The CI858K01 utilizes the specific DriveBus protocol designed exclusively for communication between ABB AC 800M controllers and ABB-branded drive systems like the ACS series.

• Is this a brand new 3BSE018135R1 unit?

  Absolutely. We supply only 100% brand new and original ABB hardware in factory packaging. Each unit undergoes rigorous factory testing and carries the original Swedish manufacturing certification.

• What is the estimated lead time for this interface?

  The estimated lead time for the CI858K01 is typically 4 to 6 weeks. We ship via premium carriers like DHL or FedEx to ensure the safety of your automation hardware during transit.
