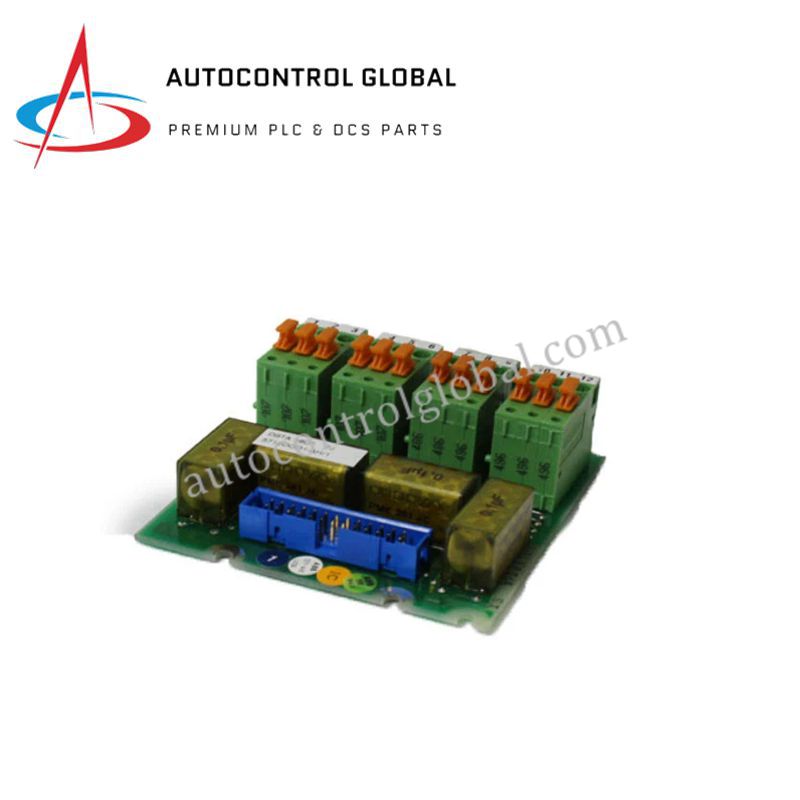

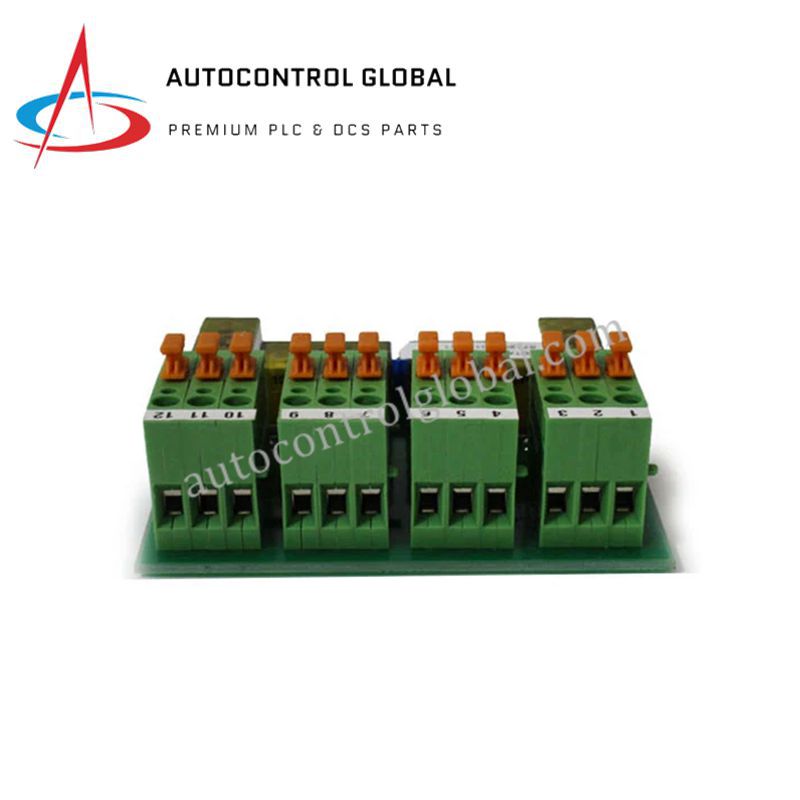

ABB DSTA160 57120001-AH Analog Output Connection Unit
Manufacturer: ABB
-
Part Number: DSTA160 57120001-AH
Condition：New with Original Package
Product Type: Analog Output Connection Unit
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB DSTA160 – Analog Output Connection Unit
The ABB DSTA160 is a dedicated connection unit designed to interface analog output modules with external field devices. It ensures reliable signal transmission and organized wiring for industrial control applications.
Compatible with ABB’s S100 I/O system, the DSTA160 simplifies installation, enhances signal integrity, and reduces noise in harsh industrial environments. Its compact design makes it ideal for space-constrained control cabinets.
Technical Specifications
| Feature | Description |
|---|---|
| Model | DSTA160 |
| Part Number | 57120001-AH |
| Function | Connection unit for analog output modules |
| System Compatibility | ABB S100 I/O system |
| Number of Channels | 4 analog output channels |
| Signal Type | Analog (0–10 V or 4–20 mA depending on paired module) |
| Connection Type | Terminal block interface for field wiring |
| Mounting | DIN rail or panel-mounted |
| Dimensions | 365 mm (L) × 50 mm (H) × 180 mm (W) |
| Weight | 0.27 kg |
| Environmental Classification | Small equipment, RoHS exempt under Directive 2011/65/EU |
| Operating Voltage | Passive unit; depends on connected analog module |
| Protection Features | Shielded wiring support, grounding terminals for noise suppression |
