AIP831-101/EIM | High-Performance Control Room Keyboard
Manufacturer: Yokogawa
-
Part Number: AIP831-101/EIM
Condition：New with Original Package
Product Type: High-Performance Control Room Keyboard
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

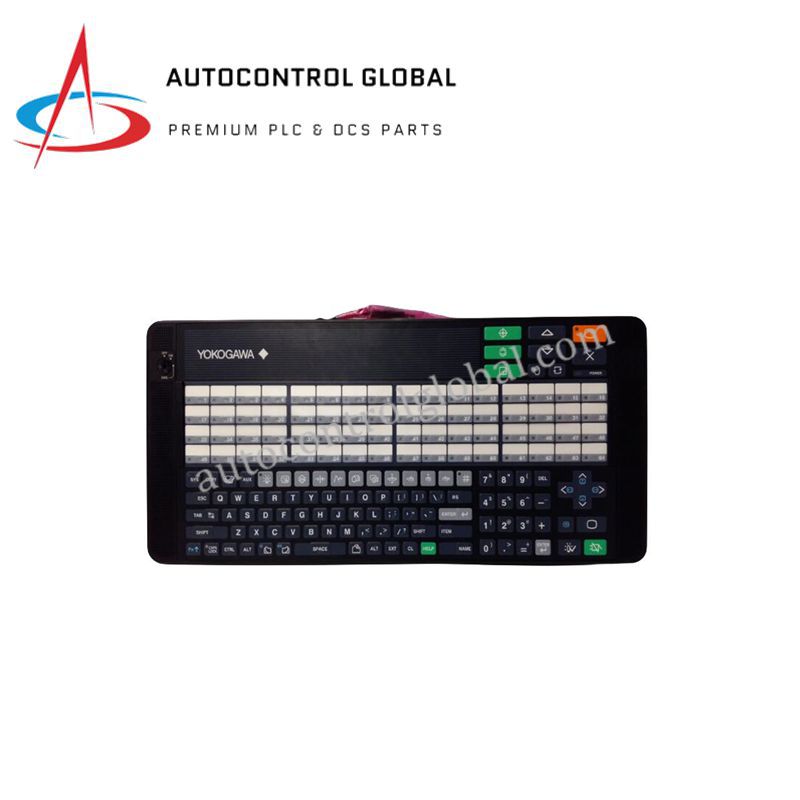

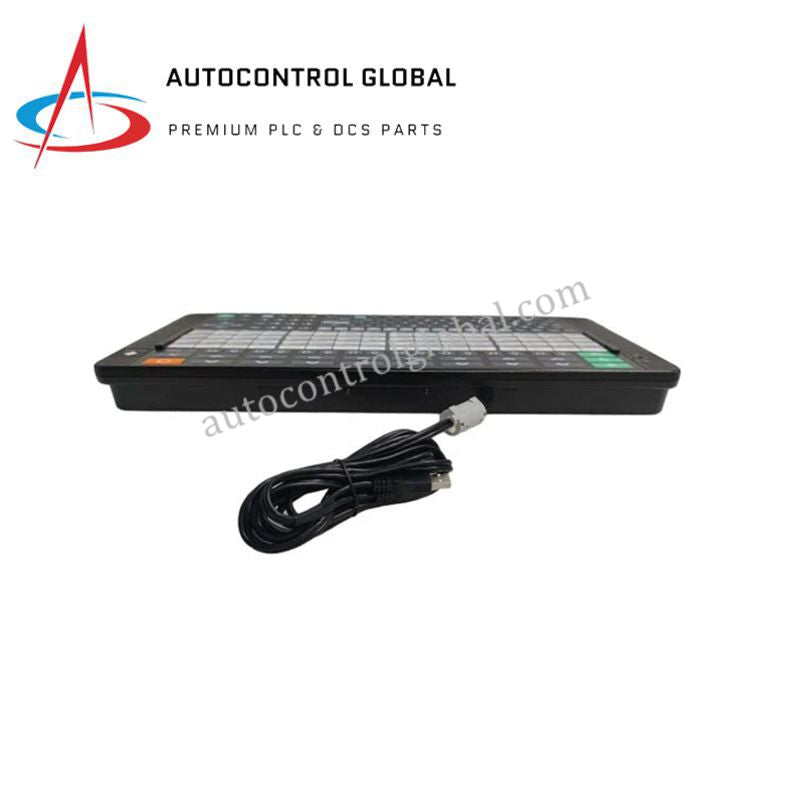

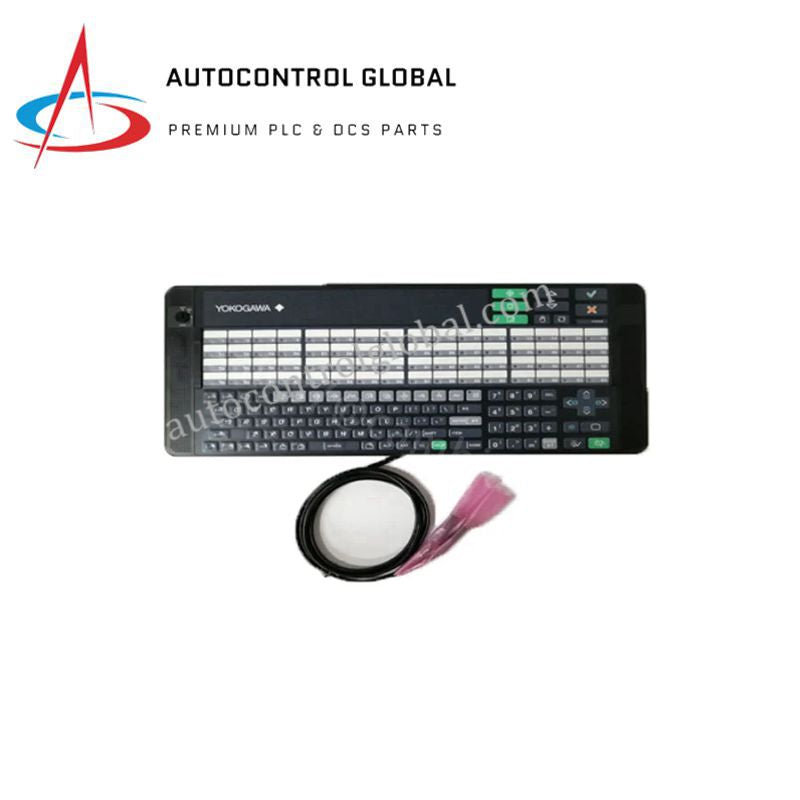

The Yokogawa AIP831-101/EIM is a high-performance operation keyboard designed for CENTUM VP Desktop HIS systems.
It allows intuitive and responsive control of up to eight simultaneous process loops, enabling efficient industrial process management.
Equipped with touch-sensitive keys, USB connectivity, and built-in alarm functions, the AIP831-101/EIM improves operator situational awareness and supports real-time decision-making in complex control room environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | AIP831-101/EIM |
| Product Type | Operation Keyboard Module |
| System Compatibility | CENTUM VP HIS |
| Control Keys | 8 keys with touch-sensing capability |
| Interface | 2 × USB Type-A ports |
| Power Supply | 5 V ±5% via USB interface |
| Max Current Consumption | 1 A |
| Alarm Function | Built-in electronic buzzer for audible alerts |
| Optional Expansion | Compatible with VP6H1100 eight-loop synchronous operation package |
| Dimensions (W × H) | 200 mm × 100 mm (excluding bracket) |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 20% to 80% RH (non-condensing) |
| Condition | New and original |
| Certifications | COO (Certificate of Origin), Test Report |
| Applications | Multi-loop process control, operator interface, alarm monitoring |
FAQs
Q1: How many loops can the AIP831-101/EIM control simultaneously?
A1: It can control up to eight loops with responsive touch-sensitive keys.
Q2: What interfaces does this keyboard provide?
A2: The AIP831-101/EIM offers 2 USB Type-A ports for connectivity.
Q3: What is the operating temperature range?
A3: The module operates safely from 0°C to 50°C.
Q4: Can this keyboard handle alarm notifications?
A4: Yes, it features a built-in buzzer for audible alerts.
Q5: Is it compatible with any expansion packages?
A5: Yes, it supports the VP6H1100 eight-loop synchronous operation package.
Q6: What is the shipping and return policy?
A6: We ship via FedEx or DHL within 3–14 days, and returns are supported within 30 days for quality issues.
