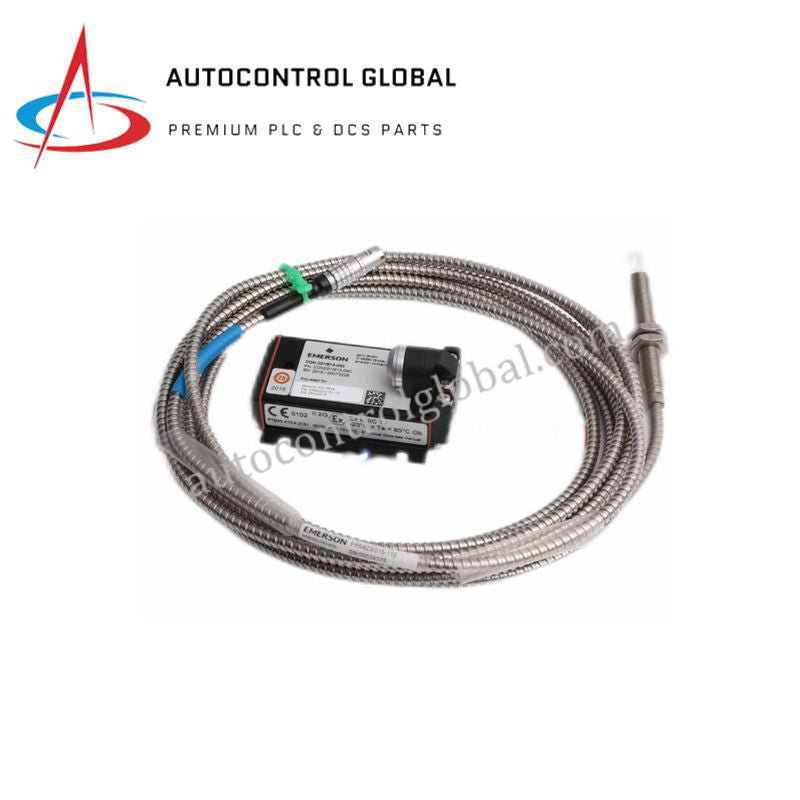

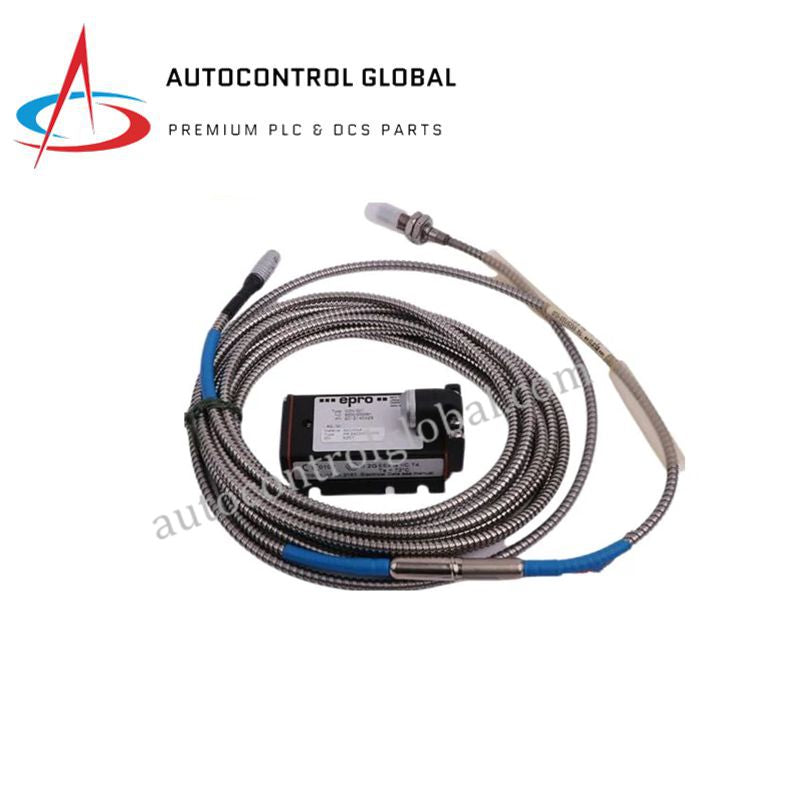

Emerson PR6423/010-010 Eddy Current Sensor for Machinery

Product Description

Product Overview

The Emerson EPRO PR6423/010-010 is a precision eddy current displacement sensor developed for continuous monitoring of rotating machinery.
This sensor belongs to the established PR6423 series, which is widely deployed in machinery protection and condition monitoring systems worldwide.

Moreover, the non-contact eddy current measurement principle eliminates mechanical wear and ensures long-term signal consistency.
Therefore, the sensor provides stable displacement and vibration data under high-speed and high-temperature operating conditions.

The PR6423/010-010 features an 8 mm probe tip combined with a 10 meter integrated cable, supporting flexible installation layouts.
In addition, its stainless steel construction enables operation in harsh industrial and offshore environments.

Technical Specifications

Product Type: Eddy Current Displacement Sensor
Model Number: PR6423/010-010
Alternate Reference: PR6423/000-010
Manufacturer: Emerson / EPRO

Probe Tip Diameter: 8 mm
Integrated Cable Length: 10 m

Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)

Incremental Scale Factor:

• 8 V/mm (203.2 mV/mil) ±5% at 0–45 °C

Deviation from Best Fit Line:

• ±0.025 mm (±1 mil)

Minimum Shaft Diameter: 25 mm (0.79 in)
Target Material: Ferromagnetic steel (42CrMo4 / AISI 4140)

Frequency Response: Up to 10 kHz
Output Signal: Analog voltage compatible with EPRO monitoring systems

Operating Temperature Range:

• –40 °C to +125 °C standard

• Up to +160 °C for T3 variants

Protection Class: IP66
Housing Material: Stainless steel
Weight: 0.1–0.2 kg depending on cable configuration

Compliance: API 670

FAQ

Q1: What is the primary measurement function of PR6423/010-010?
A1: It measures shaft vibration, displacement, eccentricity, and axial position using non-contact eddy current technology.

Q2: How does PR6423/010-010 differ from PR6423/000-001?
A2: PR6423/010-010 includes a longer 10 meter integrated cable for extended installation distances.

Q3: Is this sensor suitable for high-speed rotating equipment?
A3: Yes, it supports frequency response up to 10 kHz for dynamic vibration monitoring.

Q4: Which monitoring systems support this sensor?
A4: It integrates with Emerson EPRO and AMS platforms such as AMS 6500 and VM600.

Q5: Does the sensor require contact with the rotating shaft?
A5: No, the sensor operates using non-contact eddy current measurement principles.
