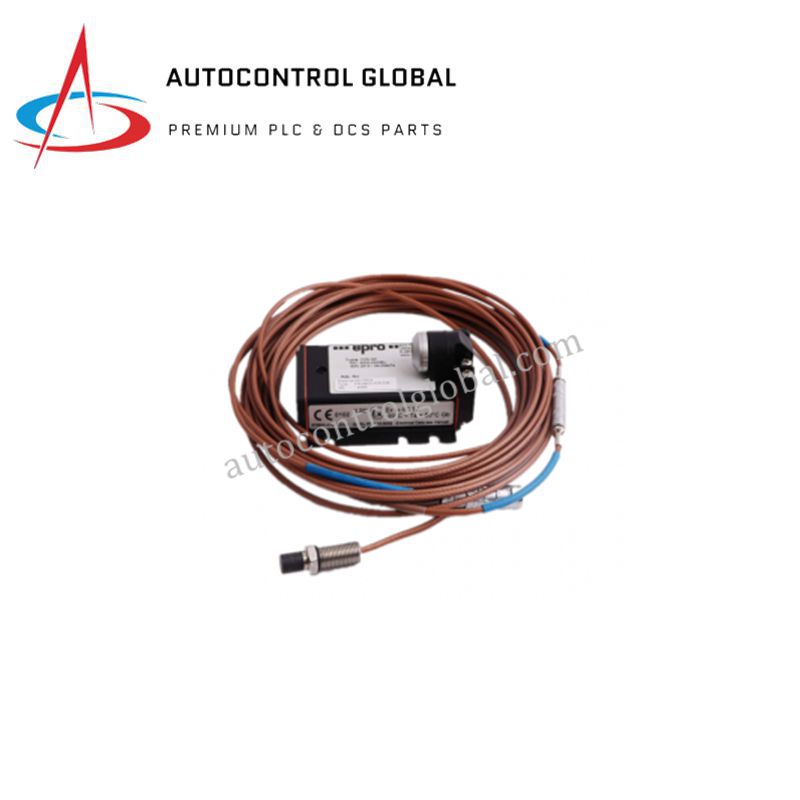

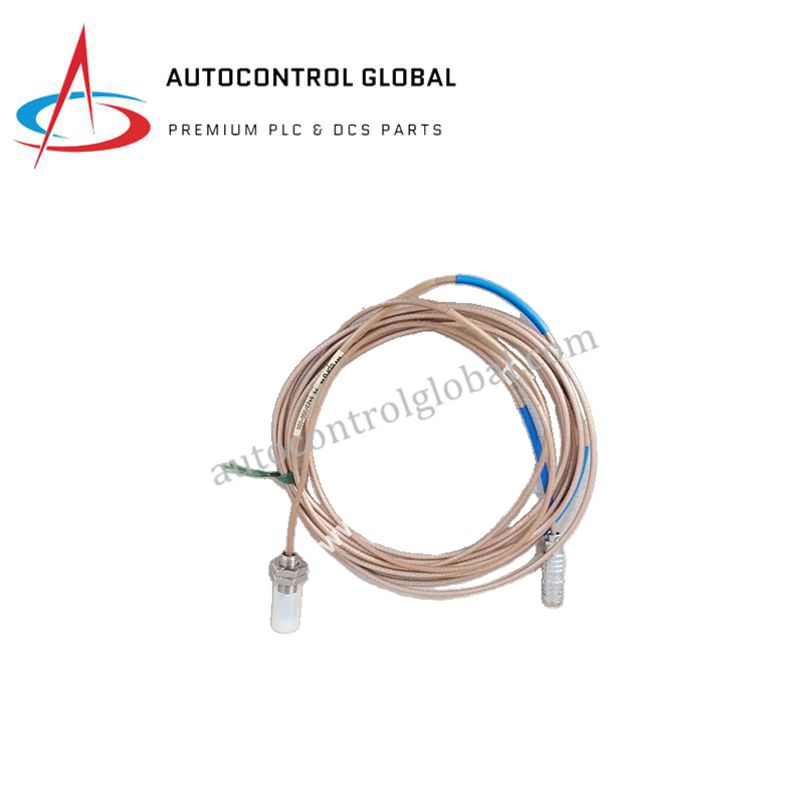

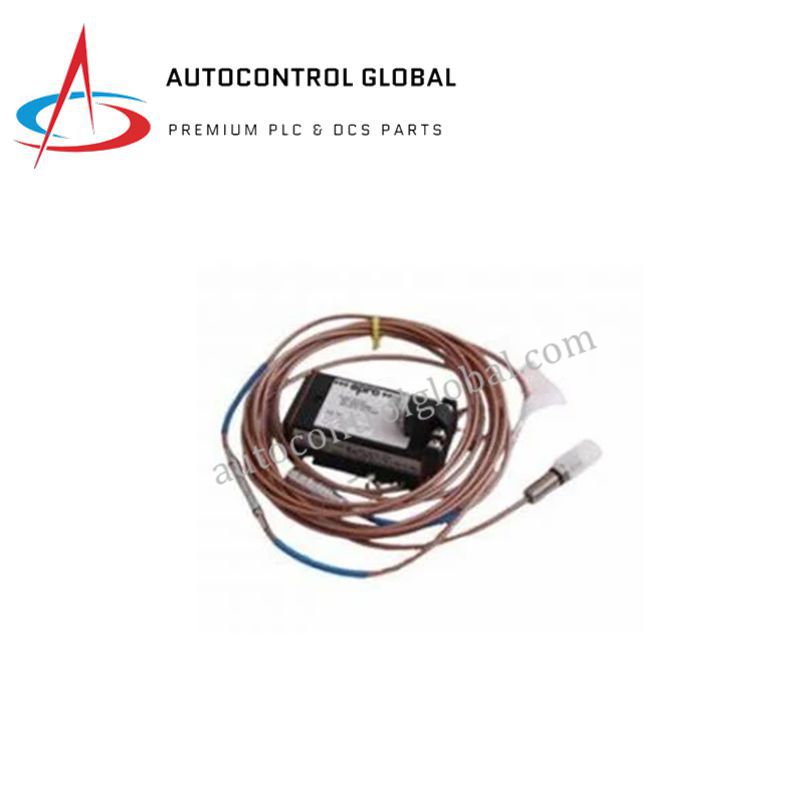

EPRO PR6423/002-041 | Threaded Armored Vibration Sensor
Manufacturer: Epro
-
Part Number: PR6423/002-041
Condition：New with Original Package
Product Type: Threaded Armored Vibration Sensor
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
EPRO PR6423/002-041 | Industrial Eddy Current Displacement Sensor
EPRO PR6423/002-041 is a high-precision 8 mm eddy current displacement sensor designed for non-contact measurement of shaft vibration, position, eccentricity, and dynamic displacement. It is widely used in turbines, compressors, pumps, gearboxes, and other critical rotating equipment.
The sensor features a specific case thread, armored cable, and 4.5-meter total cable length, ensuring durability in harsh industrial conditions. It is typically paired with Emerson’s CON021 signal converter, providing accurate analog output for integration into monitoring and protection systems such as MMS 6000.
Technical Specifications
| Parameter | Details |
|---|---|
| Sensor Type | Eddy current displacement sensor |
| Model | PR6423/002-041 |
| Sensor Diameter | 8 mm |
| Measurement Range | ±2 mm (typical linear range) |
| Sensitivity | 8 V/mm (203.2 mV/mil) ±5% |
| Mounting Type | Threaded body with specific case thread |
| Cable Length | 4.5 meters (includes armored section) |
| Cable Type | PTFE-insulated, oil- and water-resistant |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Operating Temperature | Sensor: –35°C to +180°C; Cable: –35°C to +150°C |
| Protection Rating | IP67 – fully sealed against dust, oil, and moisture |
| Hazardous Area Certification | Depends on converter used (e.g., CON021) |
| Compliance Standards | API 670, DIN 45670, ISO 10817-1 |
FAQ
Q: Is the EPRO PR6423/002-041 brand new?
A: Yes, it is brand-new, unused, unopened, and comes in original packaging.
Q: What is the operating temperature range of this sensor?
A: Sensor: –35°C to +180°C; Cable: –35°C to +150°C.
Q: Can it measure small shaft vibrations accurately?
A: Yes, it has high sensitivity of 8 V/mm, suitable for early fault detection.
Q: Which systems is this sensor compatible with?
A: Works with Emerson CON021 signal converter and MMS 6000 series.
Q: What is the protection rating?
A: The sensor is IP67 rated, fully sealed against dust, oil, and moisture.
Q: How quickly can it be shipped?
A: Typically shipped within 3–14 days depending on order size and logistics.
