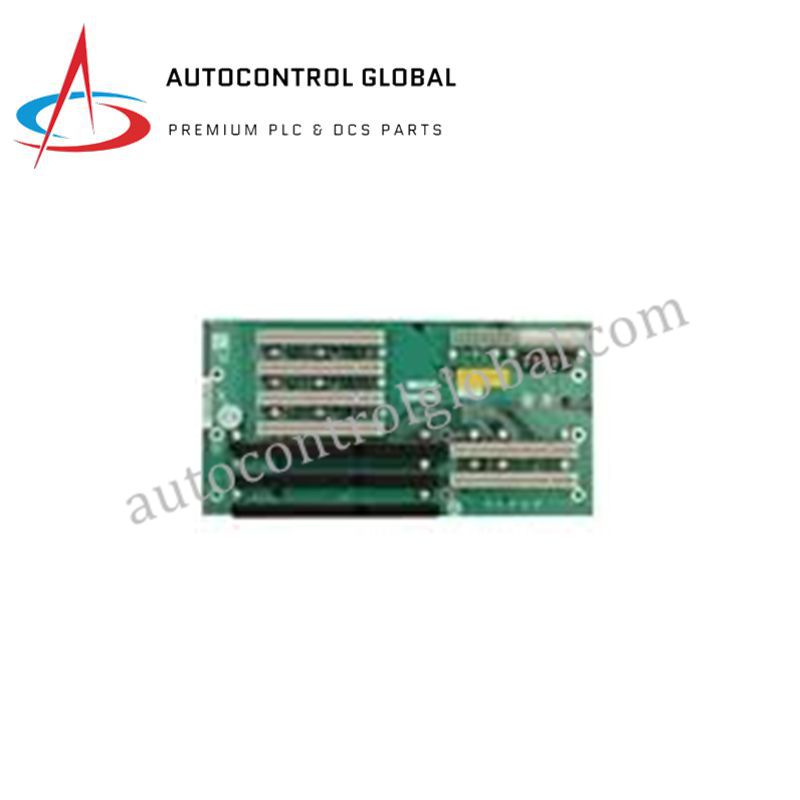

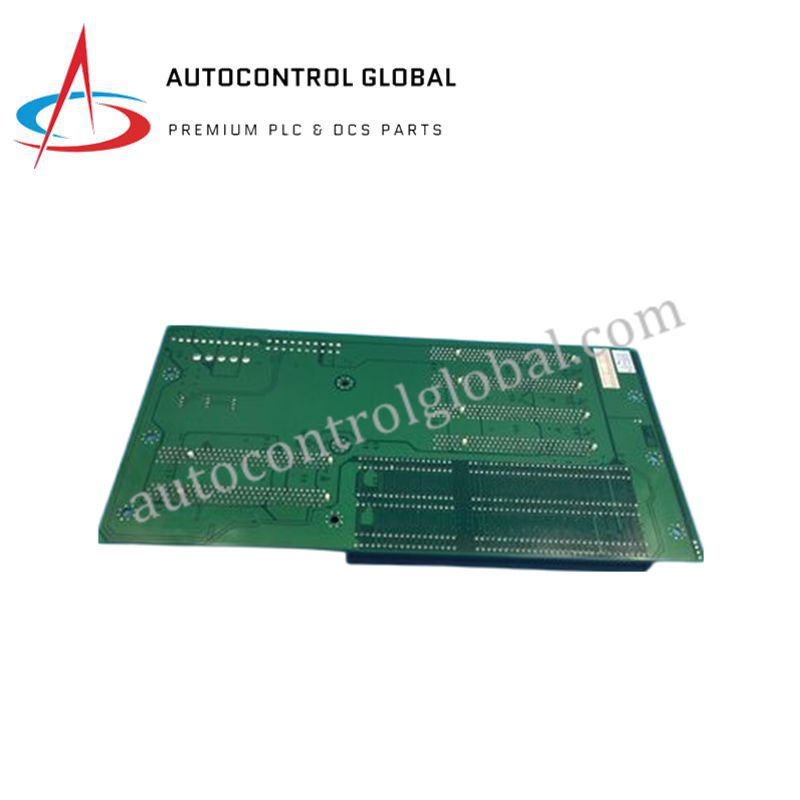

Honeywell PCI-6S-RS-R40 | Industrial 6-Slot Backplane Board
Manufacturer: HONEYWELL
-
Part Number: PCI-6S
Condition：New with Original Package
Product Type: Industrial 6-Slot Backplane Board
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The Honeywell PCI-6S (PCI-6S-RS-R40) is a durable 6-slot industrial backplane designed for distributed control and PLC systems. It interconnects Honeywell control modules while supporting both PCI and ISA architectures, enabling smooth integration of modern and legacy hardware.
With four PCI slots and two ISA slots, the PCI-6S offers flexibility for system expansion and mixed-architecture upgrades. Its compact, rack-mounted design resists vibration, EMI, and contaminants, ensuring stable performance in demanding automation environments.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | PCI-6S |
| Part Number | PCI-6S-RS-R40 |
| Type | Industrial Backplane Module |
| Slot Configuration | 6 slots: 4 × PCI, 2 × ISA |
| Bus Architecture | PCI 2.2 compliant; ISA legacy support |
| Power Supply | 5V and 12V DC distributed via onboard bus |
| Cooling Support | Compatible with fan trays and passive airflow |
| Mounting Format | Rack-mounted inside cabinet enclosures |
| Shock Resistance | 15 G across 3 axes (11 ms duration) |
| Operating Temperature | –20°C to +60°C |
| Environmental Protection | Resistant to EMI, vibration, and industrial contaminants |
| Certifications | CE compliant, UL 508, RoHS |
| Weight | 0.50 lbs |
