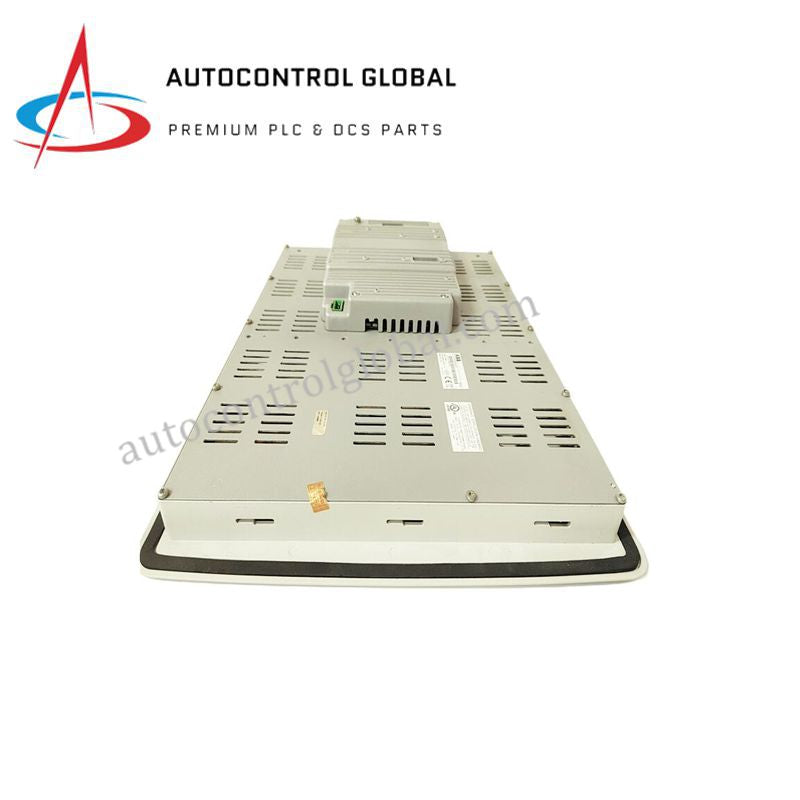

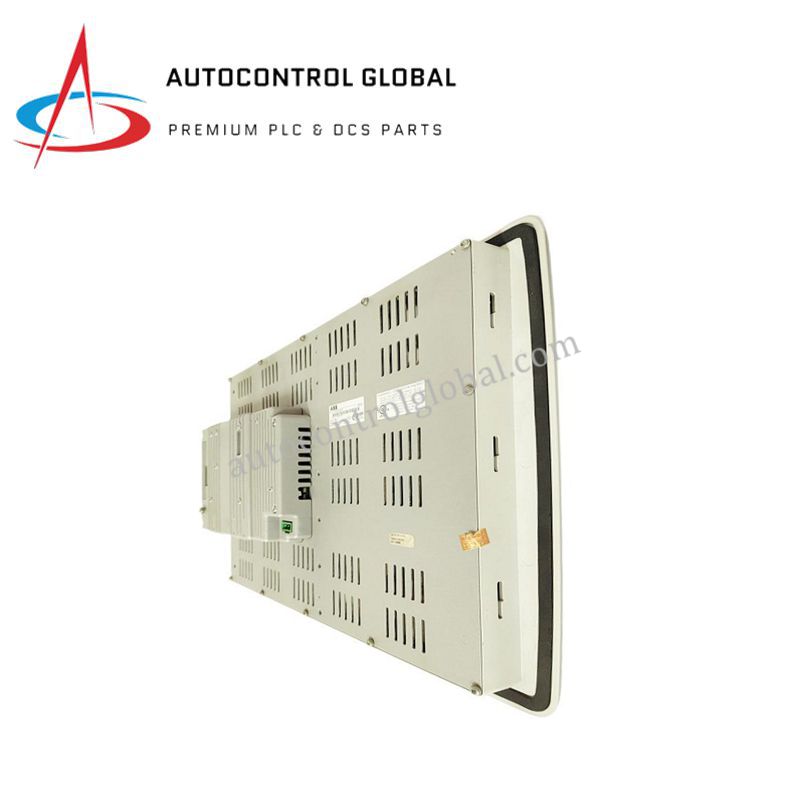

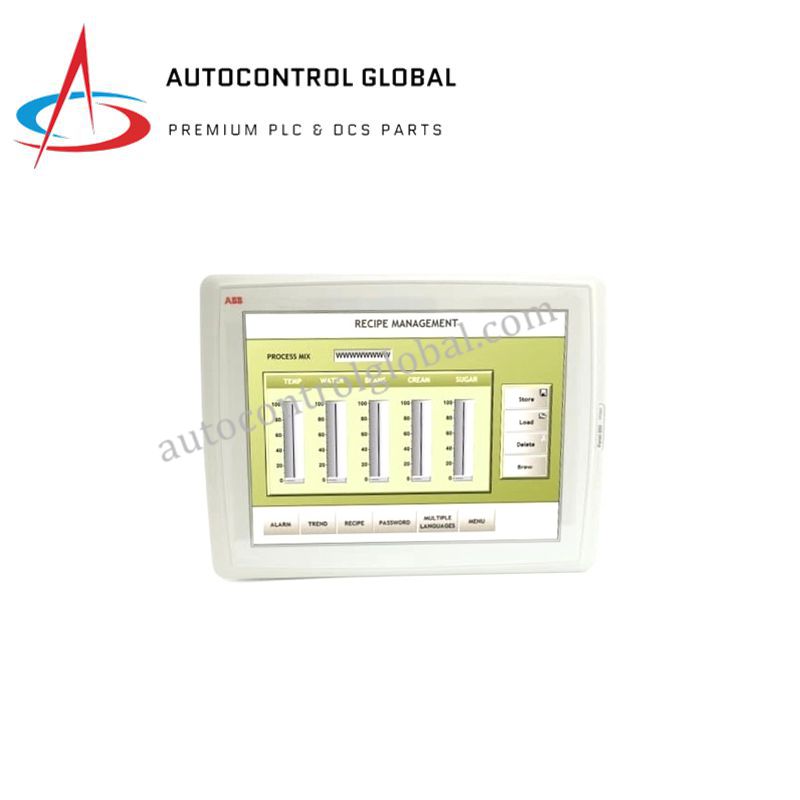

PP865 ABB Operator Panel | CPU Module for AC 800M Systems
Manufacturer: ABB
-
Part Number: PP865 3BSE042236R1
Condition：New with Original Package
Product Type: CPU Module for AC 800M Systems
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB PP865 (3BSE042236R1) is an advanced operator panel designed for ABB’s AC 800M distributed control systems. It serves as a central processing unit, executing control logic, coordinating I/O modules, and managing real-time network communication. Moreover, it ensures deterministic performance and rapid system response, making it ideal for critical industrial applications across power generation, chemical, metals, and marine automation.
This operator panel supports multiple communication protocols, including Ethernet, RS-232/485, ModuleBus, and CEX-bus, allowing seamless integration into ABB 800xA architectures. In addition, its robust design withstands harsh industrial environments, guaranteeing reliable operation and minimal downtime. The lightweight construction facilitates easy installation on DIN rails or in rack-mounted configurations.
Engineered for high performance and flexibility, the PP865 is suitable for process automation, equipment monitoring, and data acquisition, providing operators with efficient and precise control over complex systems.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | PP865 |
| Part Number | 3BSE042236R1 |
| System Compatibility | ABB AC 800M |
| Function | Processor / CPU module |
| Operating System | Embedded real-time OS |
| Power Supply | 24 VDC |
| Communication Interfaces | Ethernet, RS-232/485, ModuleBus, CEX-bus |
| Memory | Integrated RAM and Flash (varies by configuration) |
| Mounting | DIN rail or rack-mounted |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP20 |
| Weight | 2.6 kg |
| Application Areas | Process automation, equipment monitoring, data acquisition |
| Country of Origin | USA / Germany / China |
FAQ
Q1: Which systems are compatible with the PP865?
A1: It is compatible with ABB AC 800M distributed control systems.
Q2: What communication interfaces does the module support?
A2: Ethernet, RS-232/485, ModuleBus, and CEX-bus interfaces are supported.
Q3: Can the module be mounted in a rack?
A3: Yes, it can be installed on DIN rails or in a rack-mounted configuration.
Q4: What operating temperature range does it support?
A4: The PP865 operates reliably between -25°C and +70°C.
Q5: What are the main application areas of this panel?
A5: It is ideal for process automation, equipment monitoring, and industrial data acquisition.
