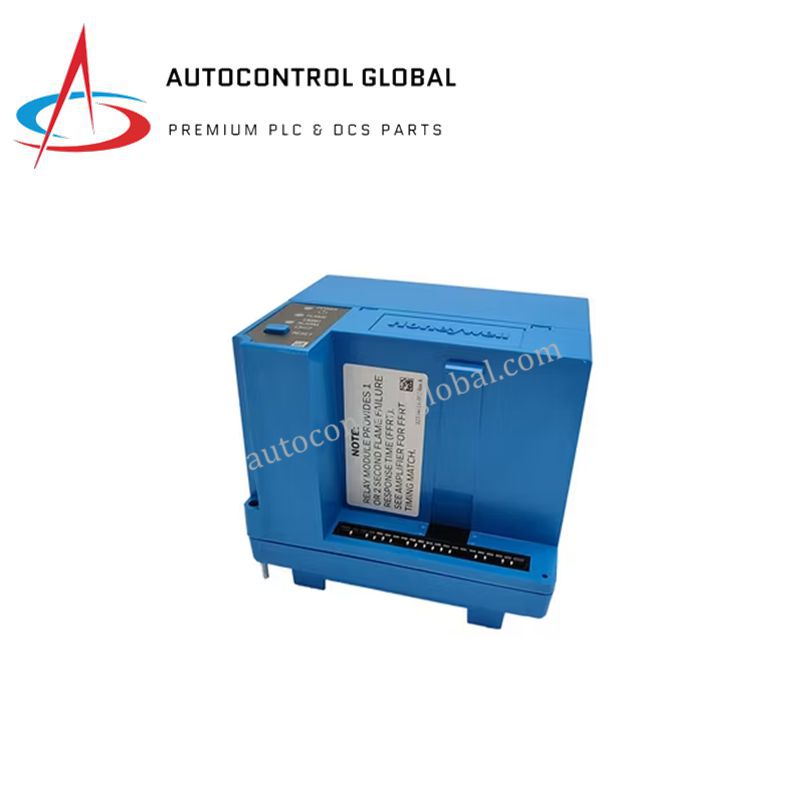

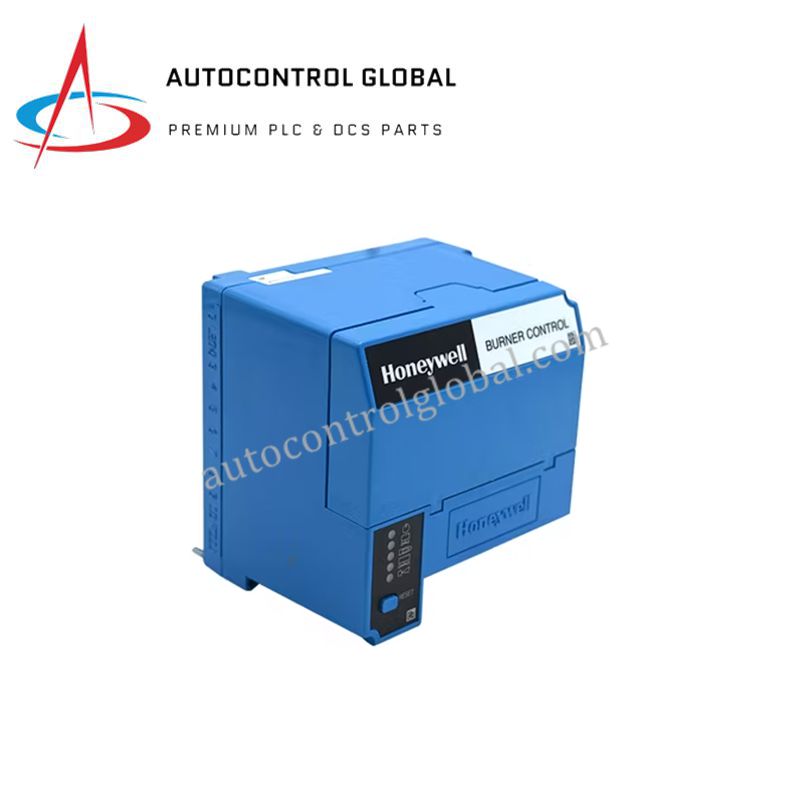

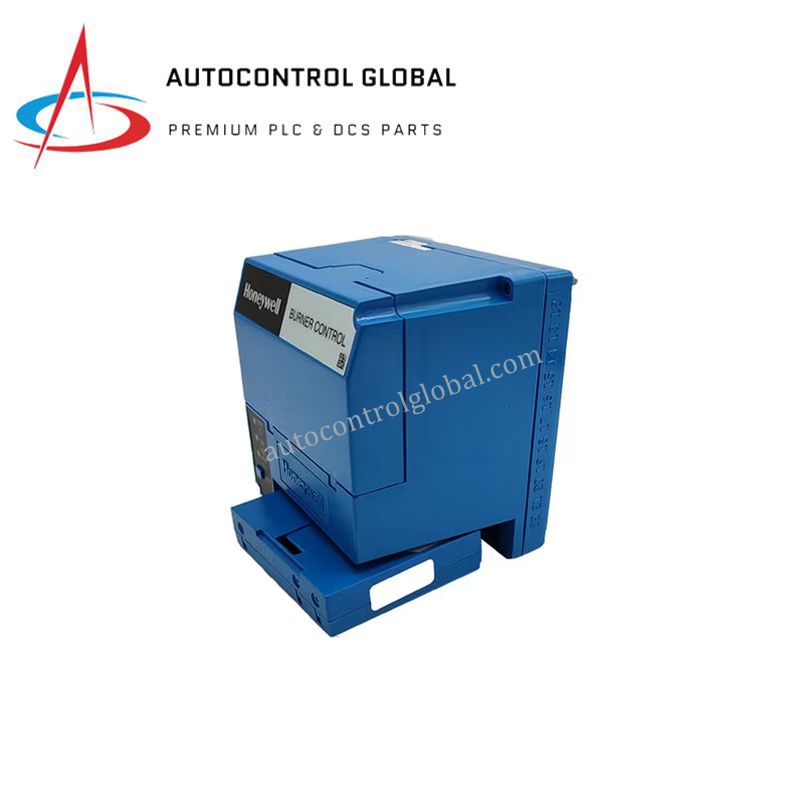

RM7885A1015 | Honeywell Advanced Programming Burner Controller
Manufacturer: Honeywell
-
Part Number: RM7885A1015
Condition：New with Original Package
Product Type: Advanced Programming Burner Controller
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell RM7885A1015 | Automatic Burner Controller
Product Description
The Honeywell RM7885A1015 is a microprocessor-based automatic programming burner controller designed for industrial semi-automatic gas, oil, coal, or combination fuel burners. It provides advanced safety, functional capability, and diagnostic features beyond conventional controls.
This module supports flame supervision, system status indication, self-diagnostics, and troubleshooting. It is adaptable for continuous, high-low, or modulating firing rates for semi-automatic burner sequencing. The controller operates with torch-ignited main burners, electrically ignited pilots, or conventional knee/foot stations.
Equipped with five LEDs for sequence monitoring, nonvolatile memory, flame signal check during standby, and shutter drive output, the RM7885A1015 integrates seamlessly with Honeywell flame detectors. It also provides a terminal for external alarms in case of flame failure, ensuring safety compliance in critical industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | RM7885A1015 |
| Product Type | Automatic Programming Burner Controller |
| Application | Semi-automatic primary burner control |
| Voltage | 120 VAC (+10%, –15%) |
| Frequency | 50/60 Hz (±10%) |
| Weight | 0.8 kg (1 lb 13 oz) |
| Dimensions (Q7800A Subbase) | 127 × 127 × 133 mm (W × H × D) |
| Dimensions (Q7800B Subbase) | 127 × 127 × 155 mm (W × H × D) |
| Temperature Range (Shipping & Storage) | –40°C to +60°C (–40°F to +140°F) |
| Pilot Type | Intermittent |
| Flame Establishing Period | Pilot: 15 min; Main: Intermittent |
| Vibration | 0.5 G environment |
| Approvals | UL MP268, CSA LR95329-3, FCC Class B, Swiss RE, Factory Mutual OX4A5.AF |
| Required Components | Q7800A/B Subbases; R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Amplifiers |
| Condition | Brand new |
| Country of Origin | USA |
FAQ
Q1: What type of burners does RM7885A1015 support?
A1: It supports torch-ignited main burners, electrically ignited pilots, and conventional start stations.
Q2: What is the operating voltage?
A2: The controller operates at 120 VAC ±10/-15%.
Q3: What are the pilot and main flame establishing periods?
A3: Pilot: 15 minutes, Main: intermittent.
Q4: Which subbases are compatible?
A4: Compatible with Q7800A and Q7800B universal wiring subbases.
Q5: Does it include flame failure alarm support?
A5: Yes, it provides a terminal for external alarms in case of flame failure.
