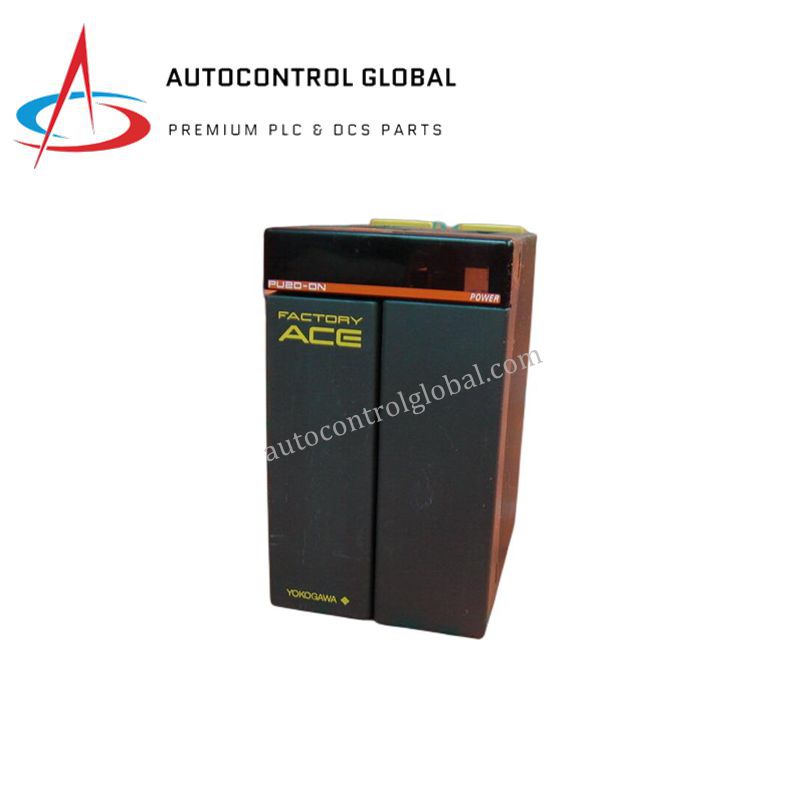

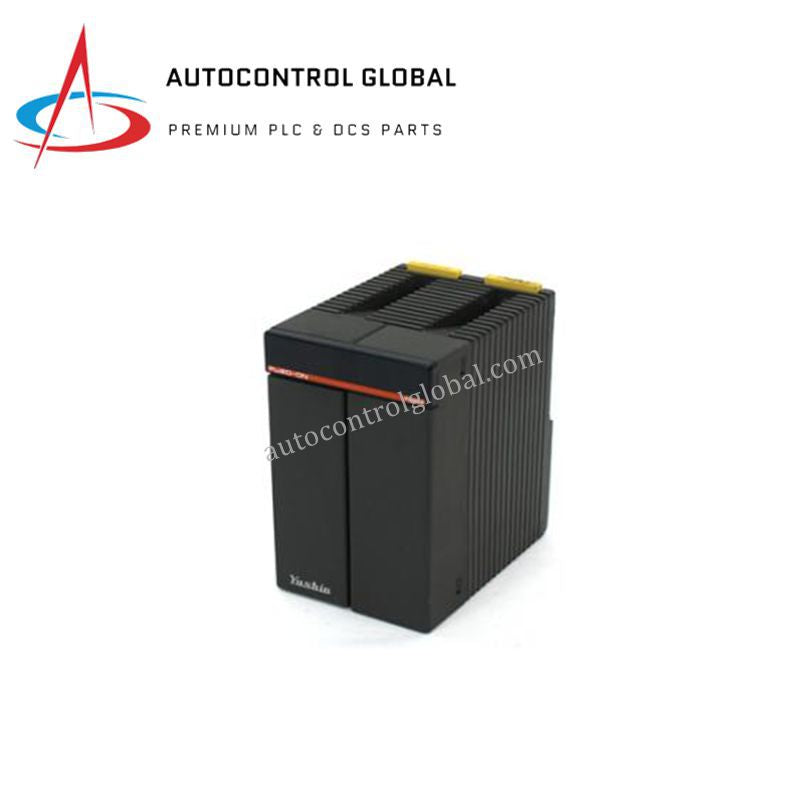

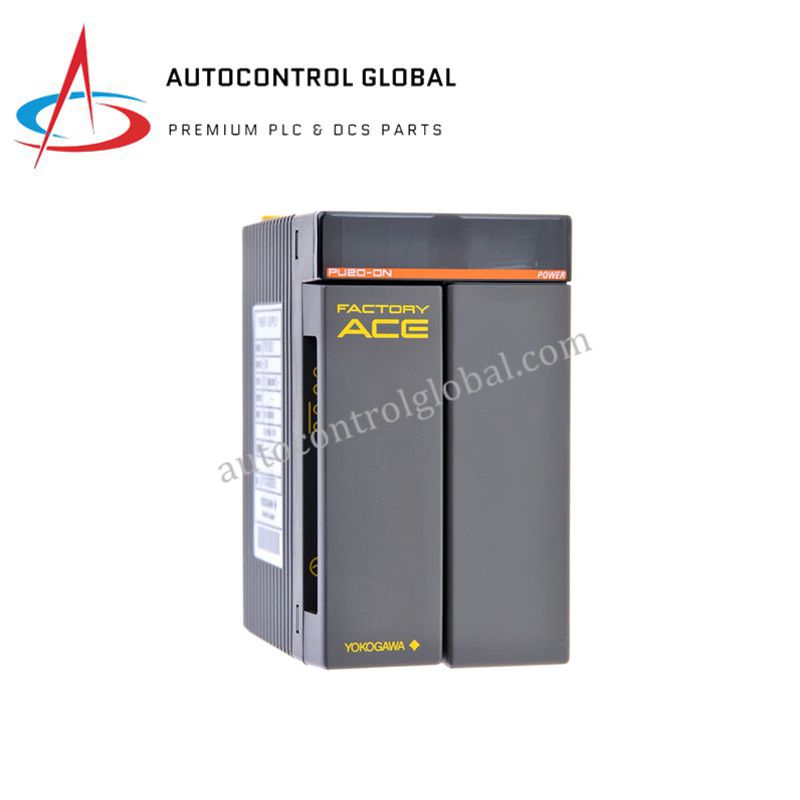

Yokogawa F3PU20-0N | Power Supply Module for F3 PLCs

Product Description

The Yokogawa F3PU20-0N is a high-performance Power Supply Module engineered for the F3 series controllers and I/O modules. It delivers a regulated 24 V DC output at up to 20 A, ensuring stable and reliable power for demanding industrial automation systems.

Designed for critical applications, this module converts 100–240 V AC input to DC while providing robust protection against overcurrent, short-circuit, and voltage fluctuations. Moreover, its compact design allows easy installation on DIN rails or panel-mounted control racks, making it highly adaptable to various system configurations.

The F3PU20-0N is ideal for industries such as oil & gas, chemical processing, water treatment, and manufacturing. Its reliability ensures continuous operation of controllers, sensors, and other critical automation components. Furthermore, built-in safety features minimize downtime and protect connected equipment.

 Technical Specifications

• Model Number: F3PU20-0N

• Product Type: Programmable Power Supply Module

• Output Voltage: 24 V DC

• Output Current: Up to 20 A

• Input Voltage: 100–240 V AC, 50/60 Hz

• Efficiency: ≥90%

• Protection Features: Overcurrent, short-circuit, overvoltage

• Operating Temperature: 0°C to +55°C

• Storage Temperature: –20°C to +70°C

• Humidity Range: 5% to 95% RH (non-condensing)

• Mounting Type: DIN rail or panel mount via base unit

• Dimensions: 58 mm × 100 mm × 83.2 mm

• Weight: 0.32 kg

• Country of Origin: Japan

 FAQ

Q1: What is the output voltage and current of the F3PU20-0N?
It provides 24 V DC output with a maximum current of 20 A.

Q2: Can this module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel-mounted installations.

Q3: What protection features are included?
The module offers overcurrent, short-circuit, and overvoltage protection.

Q4: Which controllers is it compatible with?
It is compatible with Yokogawa F3 series controllers and I/O modules.

Q5: What industries typically use this power supply module?
It is ideal for oil & gas, chemical, water treatment, and manufacturing automation systems.
