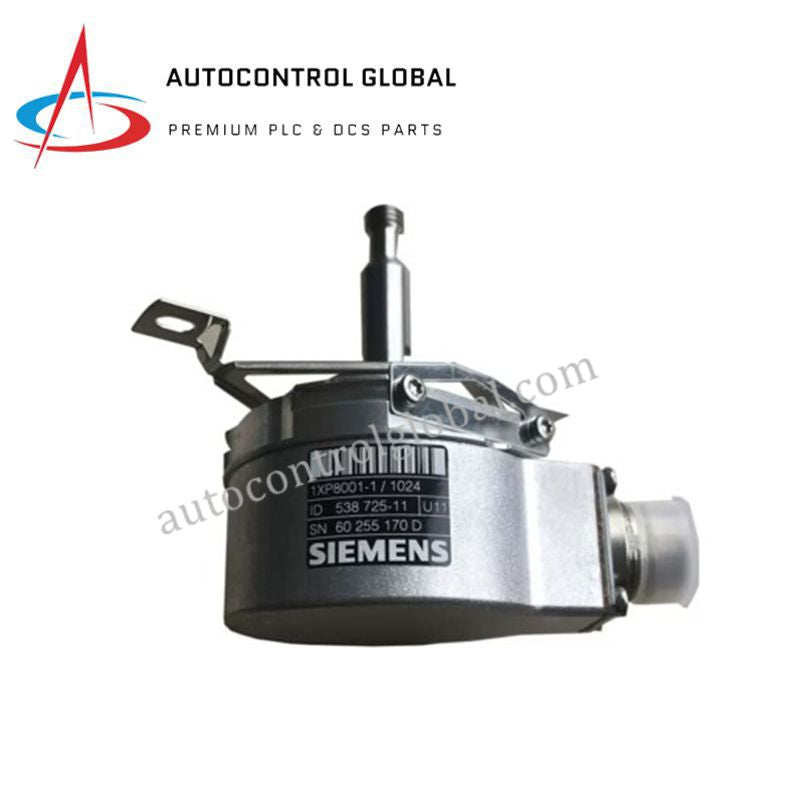

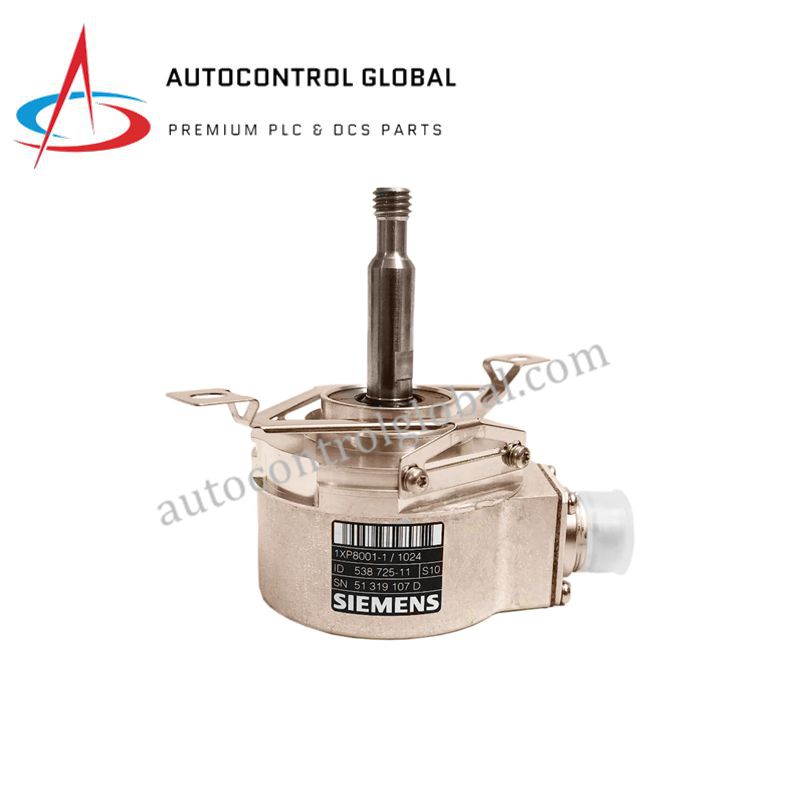

Siemens 1XP8001‑1/1024 | Incremental Rotary Encoder 538725‑11

Product Description

Overview

The Siemens 1XP8001‑1/1024 (part number 538725‑11) is a high-precision incremental rotary encoder designed for industrial automation and motion control systems.
It provides accurate speed and position feedback for motors, ensuring precise and reliable control in manufacturing and robotics applications.
Moreover, its robust IP65-rated housing protects against dust and water, enabling continuous operation in harsh industrial environments.
With 1024 pulses per revolution (PPR), the encoder delivers high-resolution feedback for precise motor synchronization and process control.

Technical Specifications

• Product Type: Incremental Rotary Encoder

• Model: 1XP8001‑1/1024

• Resolution: 1024 pulses per revolution (PPR)

• Signal Output: TTL / HTL (depending on configuration)

• Supply Voltage: 5 V DC or 10–30 V DC (model dependent)

• Shaft Type: Solid shaft, Ø 10 mm

• Mounting: Flange mounting with clamping ring

• Connection Type: Cable or connector (standard Siemens encoder interface)

• Max. Operating Speed: Up to 6000 rpm

• Accuracy: ±0.05° typical

• Isolation: Electrically isolated outputs

• Protection Class: IP65 (dust-tight, water-jet resistant)

• Operating Temperature: –20 °C to +85 °C

• Storage Temperature: –40 °C to +100 °C

• Vibration Resistance: Up to 100 m/s² (10–2000 Hz)

• Shock Resistance: Up to 1000 m/s² (6 ms)

• Housing Material: Aluminum alloy, anodized

• Weight: 1.7 kg

FAQ

Q1: What is the pulse resolution of the Siemens 1XP8001‑1/1024 encoder?
It provides 1024 pulses per revolution (PPR) for high-resolution feedback.

Q2: Which output signals are supported?
The encoder supports TTL or HTL output depending on the configuration.

Q3: Is it suitable for harsh industrial environments?
Yes, it has IP65 protection, vibration and shock resistance for reliable operation.

Q4: What is the maximum rotational speed?
It can operate reliably up to 6000 rpm.

Q5: What type of mounting is required?
Flange mounting with a clamping ring is used for installation.
