10-Slot I/O Module Chassis | Honeywell TC-FXX102
Manufacturer: Honeywell
-
Part Number: TC-FXX102
Condition：New with Original Package
Product Type: System Chassis
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

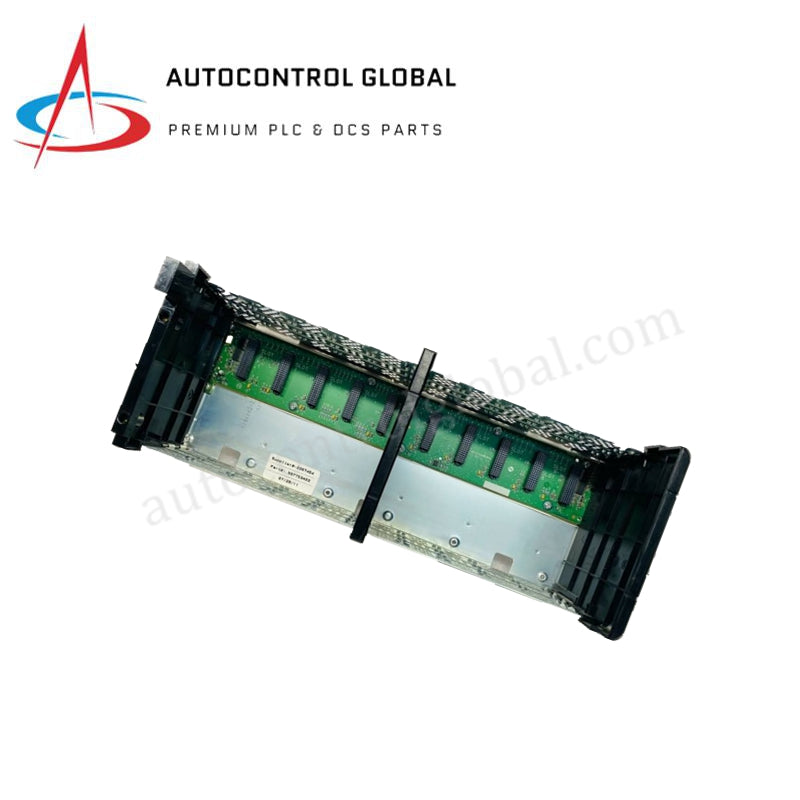

Honeywell TC-FXX102 10-Slot I/O Module Chassis
The Honeywell TC-FXX102 is a 10-slot I/O module chassis engineered for Honeywell distributed control systems. It provides the central mechanical rack housing and backplane power/communication routing for up to 10 single-wide Series-A I/O modules, enabling organized channel termination and simplified enclosure wiring layouts.
System Capacity and Redundant Power Support
The chassis supports high-density module placement across 10 dedicated Series-A slots. It integrates backplane power routing capability with support for redundant power supply configurations to maintain continuous backplane operation in critical control applications.
Physical Architecture and Environmental Ratings
Constructed for panel or cabinet frame mounting, the unit measures 48.3 cm x 16.9 cm x 14.5 cm and weighs 1.26 kg (2.78 lbs). The hardware is rated for industrial operating temperatures ranging from -20 deg C to +60 deg C and holds major international safety certifications including CE, TUV, UL508, and CSA.
| Parameter | Specification |
|---|---|
| Model | TC-FXX102 |
| Brand | Honeywell |
| Product Type | I/O Module Chassis |
| Slot Capacity | 10 single-wide Series-A I/O modules |
| Power Supply Support | Integrated backplane distribution; supports redundant systems |
| Mounting Type | Panel or cabinet mount |
| Operating Temperature | -20 to +60 deg C |
| Dimensions (L × W × H) | 48.3 cm × 16.9 cm × 14.5 cm |
| Weight | 1.26 kg (2.78 lbs) |
| Certifications | CE, TUV, UL508, CSA |
Frequently Asked Questions
Q: How many I/O modules can be installed in the Honeywell TC-FXX102 chassis?
A: The chassis accommodates up to 10 single-wide Series-A I/O modules across its dedicated backplane slots.
Q: Does the TC-FXX102 support redundant power supply configurations?
A: Yes, the chassis backplane power system is designed to support redundant power supply setups for increased operational availability.
Q: What are the physical mounting options for the TC-FXX102?
A: It can be directly installed on enclosure panel plates or inside standard control cabinets.
