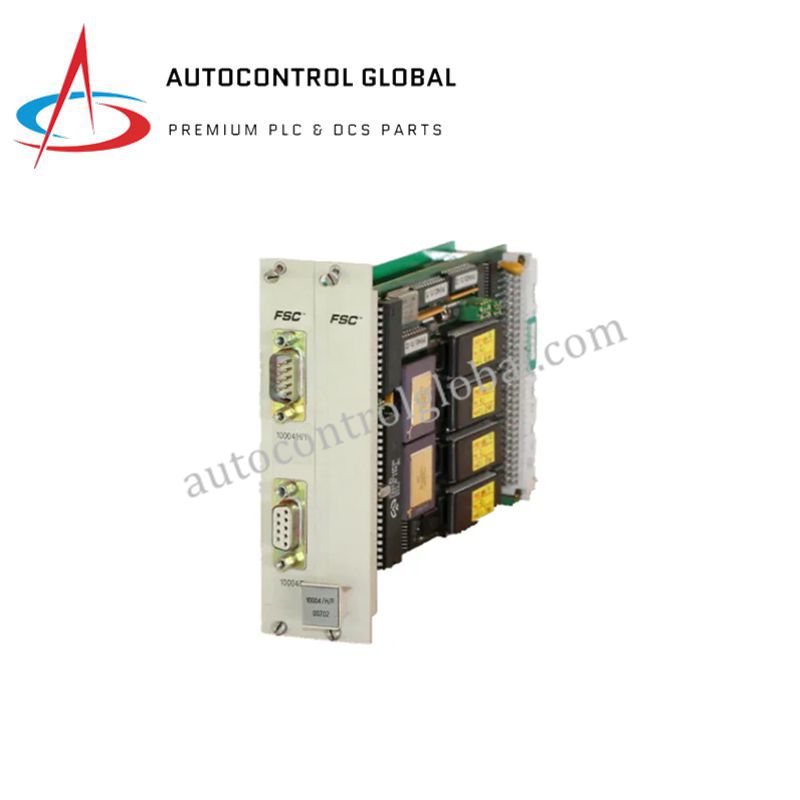

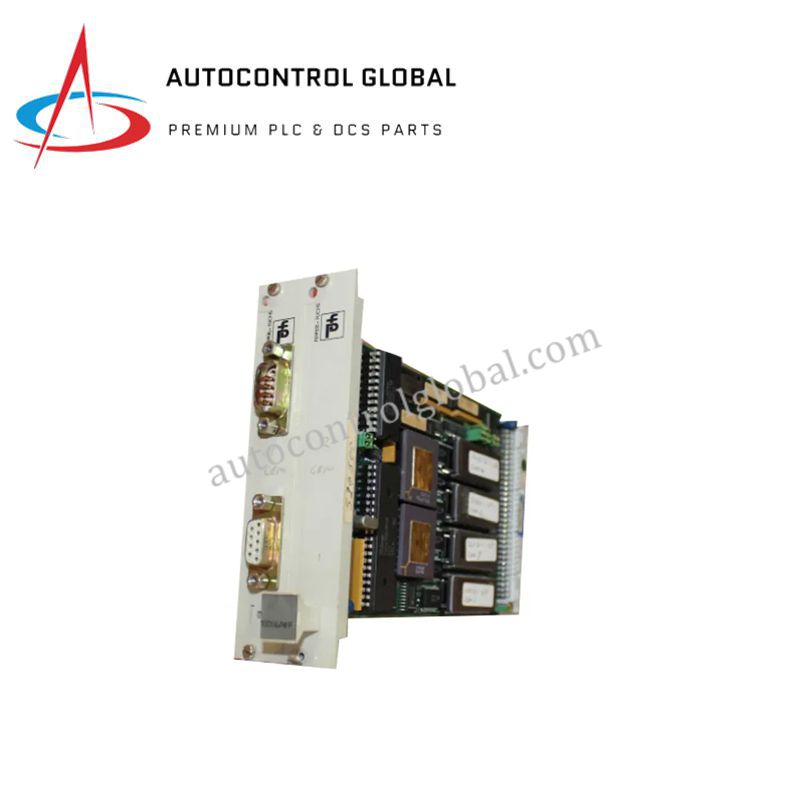

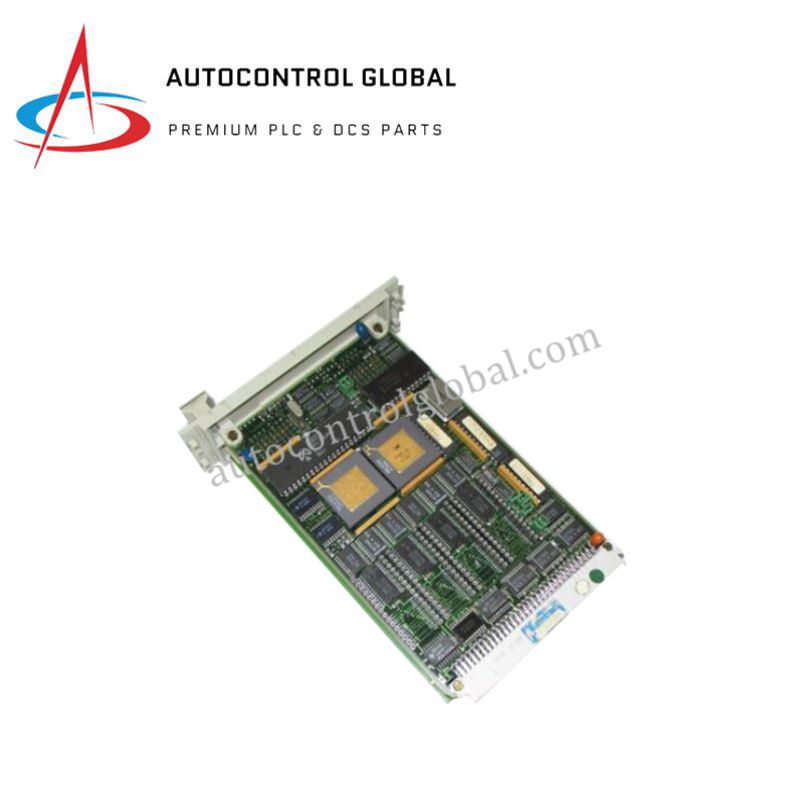

10004/H/F | Honeywell Modular Communication Interface
Manufacturer: Honeywell
-
Part Number: 10004/H/F
Condition：New with Original Package
Product Type: Modular Communication Interface
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 10004/H/F is a modular communication interface for Honeywell PLC and distributed control systems. It delivers high-speed connectivity across serial and Ethernet channels, supporting protocol bridging, multi-channel communications, and robust data exchange. Designed for industrial durability, it features diagnostic tools, configurable firmware, and channel isolation to protect against noise and transients. The module integrates seamlessly into Honeywell control racks or can be mounted on DIN rails or panels for flexible installation.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 10004/H/F |
| Type | Modular communication module; multi-channel serial/network interface |
| Supported Interfaces | RS‑232, RS‑422, RS‑485, Ethernet (depending on configuration) |
| Supported Protocols | Modbus RTU/ASCII/TCP, BACnet, Honeywell native protocols, gateway bridging |
| Data Rates | Ethernet up to 10 Mbps; serial up to 115.2 kbps configurable |
| Channels | Multiple independent serial channels plus network ports; varies by firmware |
| Mounting | DIN-rail, panel, or plug-in Honeywell chassis |
| Power Supply | 24 V DC nominal (backplane or external) |
| Power Consumption | Low to moderate; minimal backplane current |
| Operating Temperature | −20 °C to +70 °C industrial grade |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Isolation & Protection | Channel isolation, surge/transient protection, reverse-polarity protected input |
| Diagnostics | Link/port LEDs, fault reporting, loopback/self-test functions |
| Configuration | Firmware/configurable via host tools; address, baud-rate, and protocol settings |
| EMC & Safety | Meets industrial EMC standards and control equipment safety requirements |
| Applications | PLC-to-PLC communications, serial-to-Ethernet gateway, building automation, legacy device integration |
FAQ
Q1: Is the 10004/H/F module new and original?
A1: Yes, the Honeywell 10004/H/F is full OEM, brand-new, and original.
Q2: How fast can it be shipped?
A2: Shipping is typically within 3 days to 2 weeks, depending on order size and logistics.
Q3: Which interfaces are supported on this module?
A3: It supports RS‑232, RS‑422, RS‑485, and Ethernet channels depending on configuration.
Q4: Can it operate in industrial environments?
A4: Yes, it supports −20 °C to +70 °C operation, with 5–95% non-condensing humidity tolerance.
Q5: How is it mounted?
A5: It can be DIN-rail mounted, panel-mounted, or plugged into Honeywell control chassis slots.
