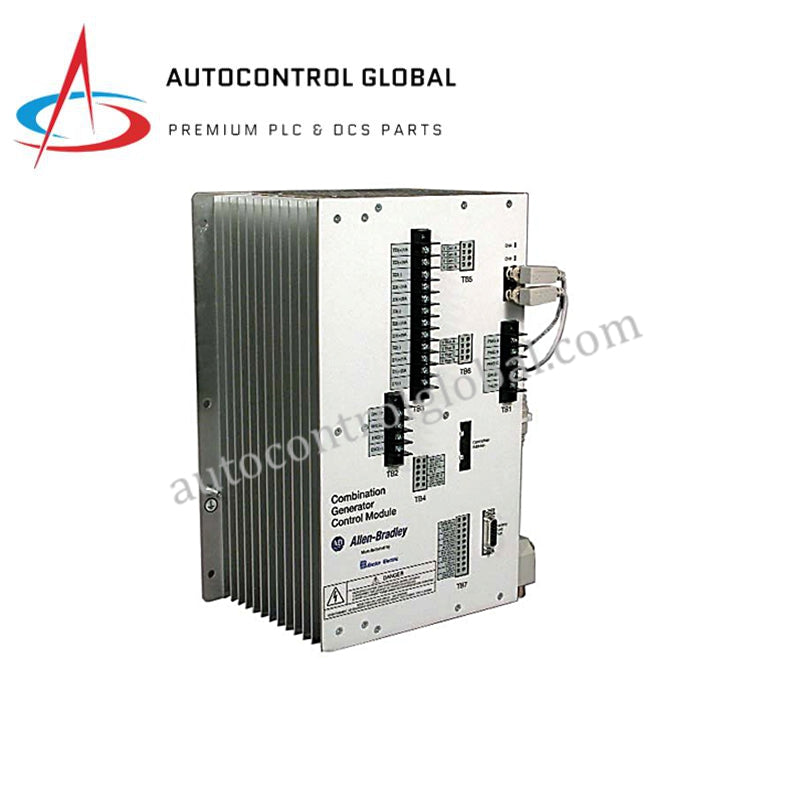

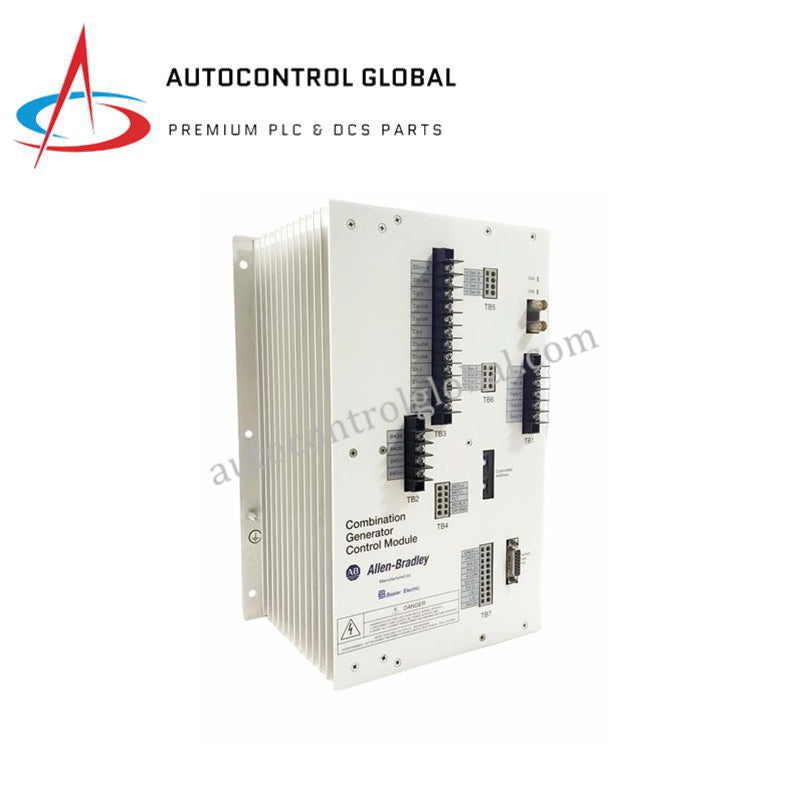

1407-CGCM Generator Control Module | Allen-Bradley CGCM
Manufacturer: ABB
-
Part Number: 1407-CGCM
Condition：New with Original Package
Product Type: Generator Control Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Product Overview
The Allen-Bradley 1407-CGCM is a Combination Generator Control Module that provides automatic generator control, synchronization, and protection in one integrated unit. It is designed for power generation plants, industrial facilities, and critical infrastructure requiring reliable generator monitoring and regulation. With control capabilities including voltage and frequency regulation, start/stop sequencing, and protective functions, this module ensures safe and continuous operation of generator systems.
Functional Description
The 1407-CGCM enables paralleling of multiple generators with utility grids or other generators, while monitoring and protecting against over/under voltage, over/under frequency, and reverse power. Its microprocessor-based control allows programmable settings for voltage regulation and governor control. The module integrates seamlessly with Allen-Bradley Logix PLCs for supervisory control and SCADA system monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 1407-CGCM |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | Combination Generator Control Module (CGCM) |
| Part Number | 1407-CGCM |
| Control Type | Microprocessor-based generator control |
| System Integration | Compatible with Logix family controllers |
| Voltage Regulation | Programmable AVR settings |
| Frequency Control | Adjustable governor parameters |
| Synchronization | Monitors voltage, frequency, and phase angle |
| Protective Functions | Over/under voltage, over/under frequency, reverse power, loss of excitation |
| Inputs/Outputs | Multiple digital and analog I/O for control and monitoring |
| Communication | RS-485 / Modbus RTU, optional Ethernet/IP integration |
| Operating Temperature | –20 °C to +60 °C |
| Mounting | Panel or rack mount |
| Certifications | CE, UL, CSA compliance |
| Weight | 16.18 lbs (7.34 kg) |
| Country of Origin | USA |
