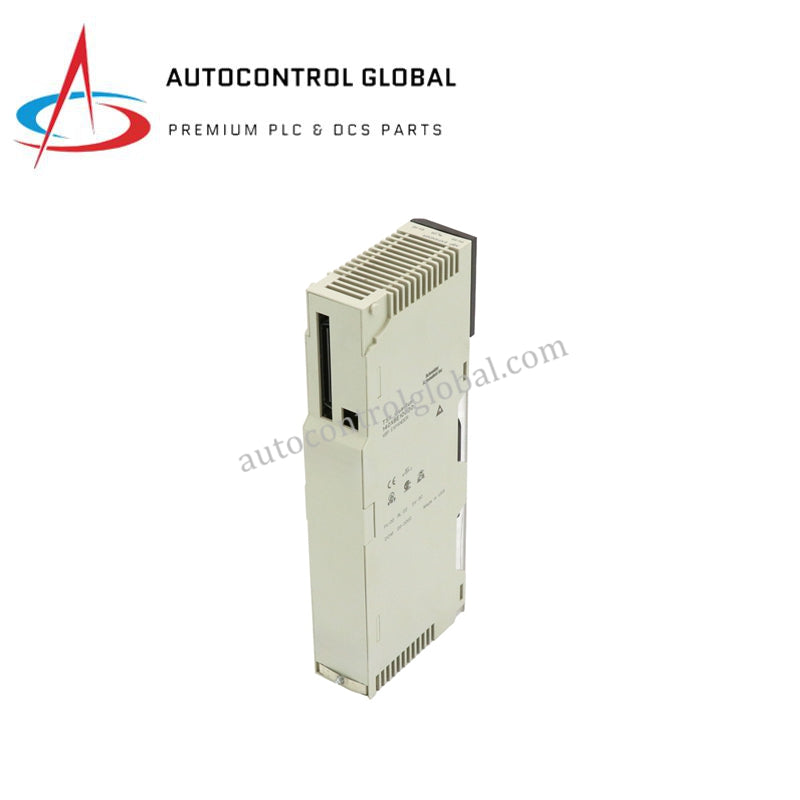

140XBE10000 | Schneider Electric | Quantum Backplane Expander
Manufacturer: Schneider
-
Part Number: 140XBE10000
Condition：New with Original Package
Product Type: Quantum Backplane Expander
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Schneider Electric 140XBE10000 is a dedicated backplane expander module for the Modicon Quantum automation platform. It enables system expansion by linking the main processor rack to additional remote I/O racks, supporting distributed control architectures without compromising communication speed or system stability.
Designed as a core expansion component within the Quantum ecosystem, the 140XBE10000 ensures synchronized data exchange between racks and maintains deterministic system performance. It is widely used in large-scale automation systems where scalability, reliability, and long-term availability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140XBE10000 |
| Product Type | Backplane Expander Module |
| Product Series | Modicon Quantum |
| Function | Expansion interface for additional I/O racks |
| System Compatibility | Modicon Quantum CPUs and Quantum I/O racks |
| Required Accessories | Backplane expander cables (140XCA71703 – 1 m, 140XCA71706 – 6 m) |
| Power Supply | 5 V DC (supplied via Quantum backplane) |
| Power Consumption | 2 W |
| Status Indicators | Communication and status LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Mounting | Plug-in module for Quantum racks |
| Module Dimensions | Standard Quantum module size (160 × 100 × 30 mm) |
| Weight | 0.25–0.30 kg |
| Certifications | CE, UL, CSA, IEC |
| Lifecycle Status | Quantum platform discontinued July 2022; service support until Dec 2030 |
