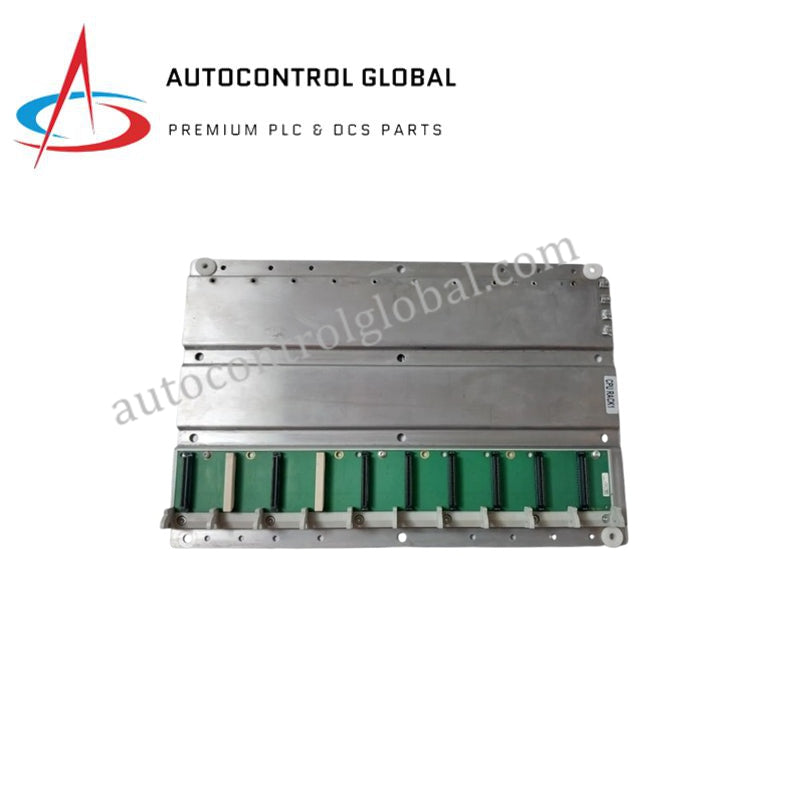

140XBP01000 Modicon Quantum Rack | Schneider Electric PLC Baseplate

Product Overview

The 140XBP01000 is a 10-slot I/O baseplate (rack) for the Modicon Quantum automation platform by Schneider Electric. It provides mechanical support, electrical interconnection, and a backplane bus for distributed PLC modules, enabling secure and reliable integration of CPUs, power supplies, communication modules, and I/O modules.

This baseplate is a critical component for medium-sized Quantum PLC installations, ensuring organized module mounting, proper electrical connectivity, and robust operation in industrial environments.

Functional Description

The 140XBP01000 accommodates up to 10 Quantum modules on a single rack. Its integrated backplane bus allows seamless communication and power distribution among modules, while the sturdy industrial-grade construction protects modules from mechanical stress. The baseplate is designed for panel or cabinet mounting using screw fixing for stable installation.

Technical Specifications

• Model: 140XBP01000

• Manufacturer: Schneider Electric

• Product Range: Modicon Quantum

• Product Type: I/O baseplate (rack)

• Number of Slots: 10 module slots

• Compatible Modules: Quantum CPU, power supply, communication, discrete I/O, analog I/O modules

• Backplane Bus: Integrated bus for module interconnection

• Mounting: Panel or cabinet mounting by screws

• Dimensions: 508 mm (L) × 280 mm (H) × 50 mm (D)

• Net Weight: 2.2 lb (1 kg)

• Shipping Weight: 4.475 lb (2.03 kg)

• Operating Temperature: 0–60 °C

• Storage Temperature: –40–85 °C

• Humidity: 5–95% non-condensing

• Protection Rating: IP20 (cabinet installation required)

• Certifications: CE, UL, CSA, RoHS compliant
