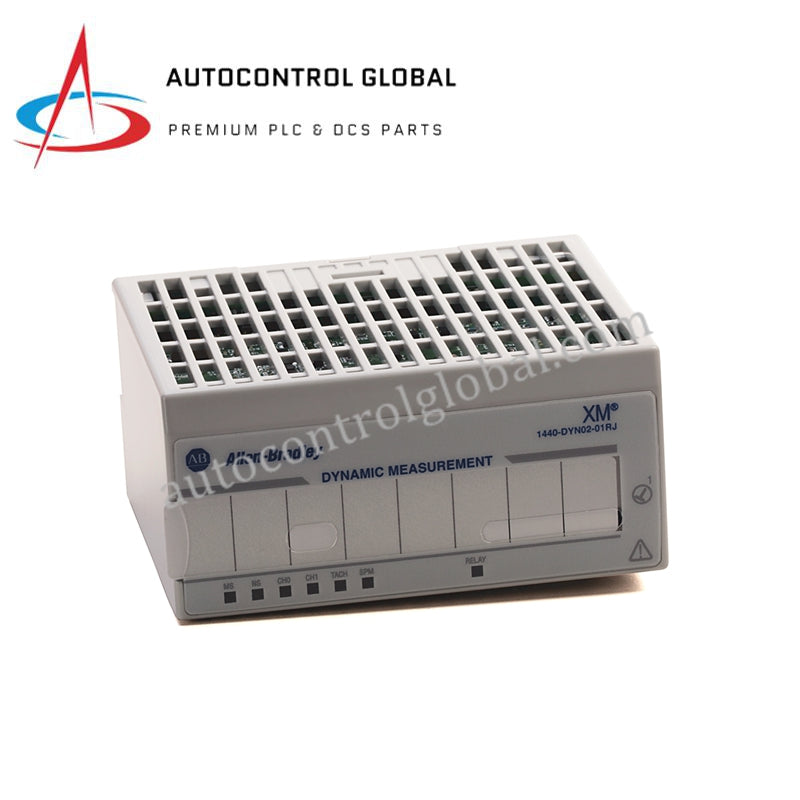

1440-DYN02-01RJ XM Module | Allen-Bradley Condition Monitoring
Manufacturer: ABB
-
Part Number: 1440-DYN02-01RJ
Condition：New with Original Package
Product Type: XM Dynamic Measurement Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Product Overview
The Allen-Bradley 1440-DYN02-01RJ is a Dynamic Measurement Module from the XM Series, designed for machine condition monitoring and predictive maintenance. It captures and analyzes vibration and other rotating machinery signals, providing accurate and real-time data to PLCs, ControlLogix, and FactoryTalk systems.
Functional Description
This module supports up to two dynamic sensor channels for accelerometers, velocity probes, or proximity probes. It features ControlNet output for integration with the 1440-ACNR network adapter, allowing seamless communication of machine condition data to industrial networks for diagnostics, early fault detection, and operational optimization.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 1440-DYN02-01RJ |
| Product Type | XM Dynamic Measurement Module |
| Series | XM Series (Condition Monitoring) |
| Channels | 2 dynamic input channels + 1 tachometer channel |
| Sensor Compatibility | Accelerometers, velocity probes, proximity probes |
| Input Type | AC dynamic signals (vibration/displacement) |
| Frequency Range | DC to 10 kHz (sensor-dependent) |
| Sampling Rate | High-speed waveform capture, FFT analysis |
| Communication Interface | Ethernet/IP (RJ‑45 connector) |
| Power Supply | 24 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Style | DIN-rail mountable |
| Dimensions | 120 mm × 75 mm × 45 mm |
| Weight | 0.25–0.35 kg |
| Certifications | CE, UL, CSA, IEC compliance |
