16-CH Isolated 4-20mA HART Input Module | Yokogawa AAI143-H03

Product Details

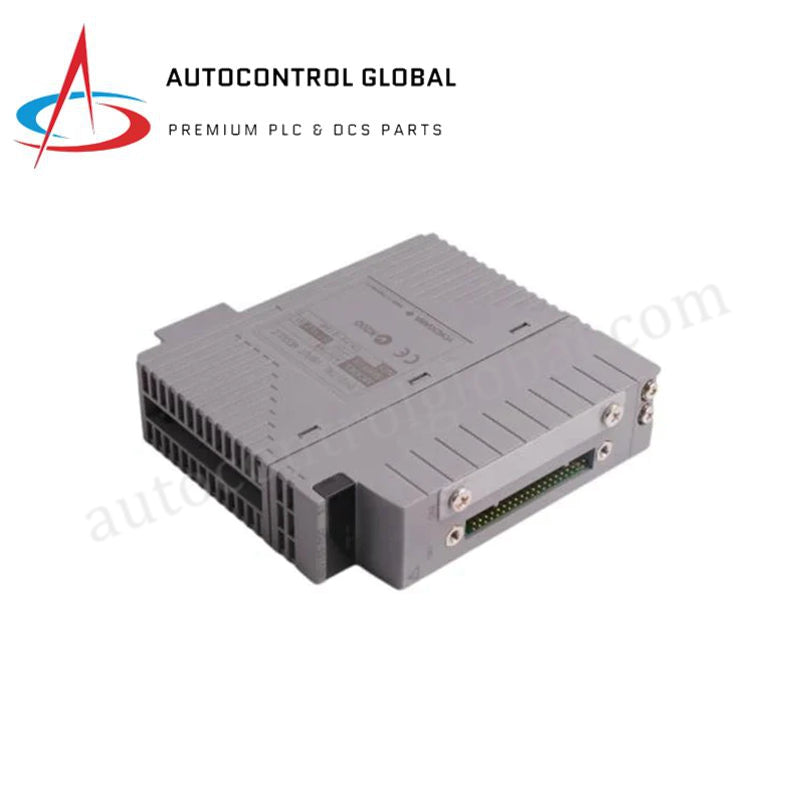

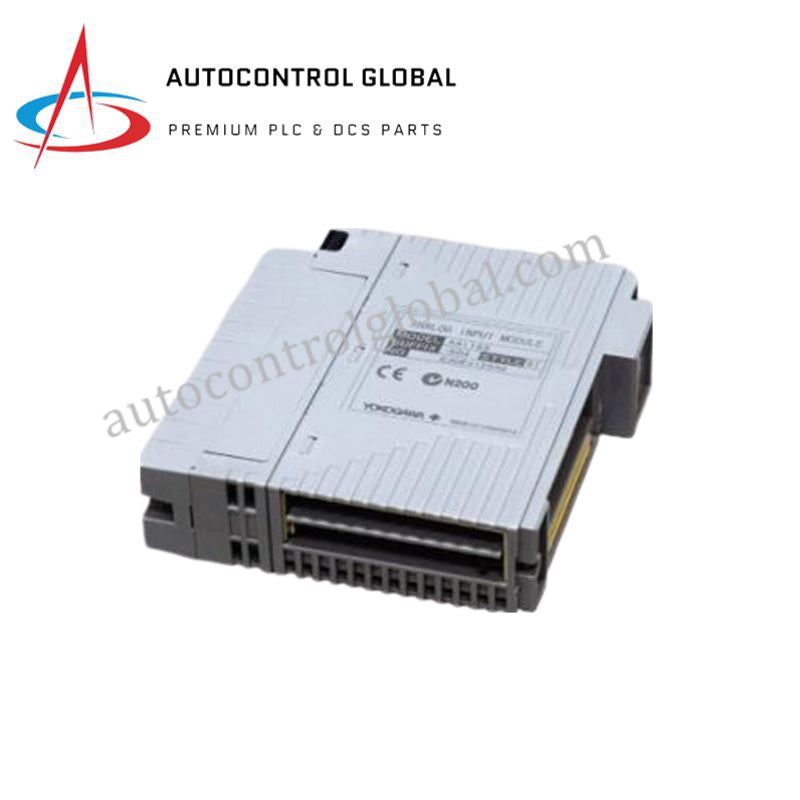

Product Overview

The Yokogawa AAI143-H03 is a high-density, 16-channel isolated analog input module engineered for the CENTUM VP and CENTUM CS 3000 distributed control systems. It provides precision acquisition of 4–20 mA DC signals from field transmitters while facilitating bidirectional HART communication. This module acts as the critical interface between field instrumentation and the DCS, allowing operators to monitor process variables and perform remote device diagnostics simultaneously. Its isolated architecture eliminates ground loop interference, ensuring signal integrity in complex industrial power environments.

Part Number Breakdown: AAI143

• AAI143: Analog Input Module (4 to 20 mA, 16-channel, Isolated).

• -H: With digital communication (HART protocol).

• 0: Always 0.

• 3: Standard with no explosion protection (Basic style).

Technical Specifications

Engineering Advantages

• High-Speed Data Synchronization: The module achieves a 10 ms data update period, providing real-time responsiveness for fast-acting control loops in volatile processes.

• HART-Enabled Diagnostics: Bidirectional HART communication allows the DCS to retrieve secondary variables and device health status directly from field instruments. This eliminates the need for manual field inspections and supports proactive maintenance strategies.

• Advanced Signal Isolation: Channel-to-channel and system-wide isolation protect the internal electronics and the main processor from high-voltage surges or electrical noise originating in the field. This prevents a single faulty transmitter from disrupting the remaining 15 channels.

• Superior Accuracy: With a tolerance of only ±16 µA, the AAI143-H03 delivers the precise measurement required for custody transfer, chemical dosing, and high-pressure steam monitoring.

• Rugged Thermal Performance: The module operates reliably across a wide temperature range of –20°C to +70°C, allowing for installation in outdoor control cabinets or facilities without intensive climate control.

FAQs

Q1: Is this AAI143-H03 module a new version or an older spare?

A1: We supply this module as a 100% brand new, original Yokogawa factory part. It comes in original packaging with the latest hardware revisions and a full 12-month industrial warranty.

Q2: Can the AAI143-H03 power the field transmitters (2-wire)?

A2: No. The AAI143 is an isolated input module. For 2-wire transmitters requiring loop power, you typically utilize the AAI141 module or provide an external power source. The AAI143 is optimized for 4-wire transmitters or loops with independent power.

Q3: Does this module support HART 7 devices?

A3: Yes. The HART-capable AAI143 modules support standard HART protocol versions, allowing the CENTUM VP system to pass through commands and retrieve data from any standard HART field device.

Q4: How do I configure the HART pass-through feature?

A4: You enable the HART functionality within the Yokogawa Engineering Station (ENG). Once configured, the system uses the AAI143-H03 as a bridge to communicate with FieldMate or other asset management software.
